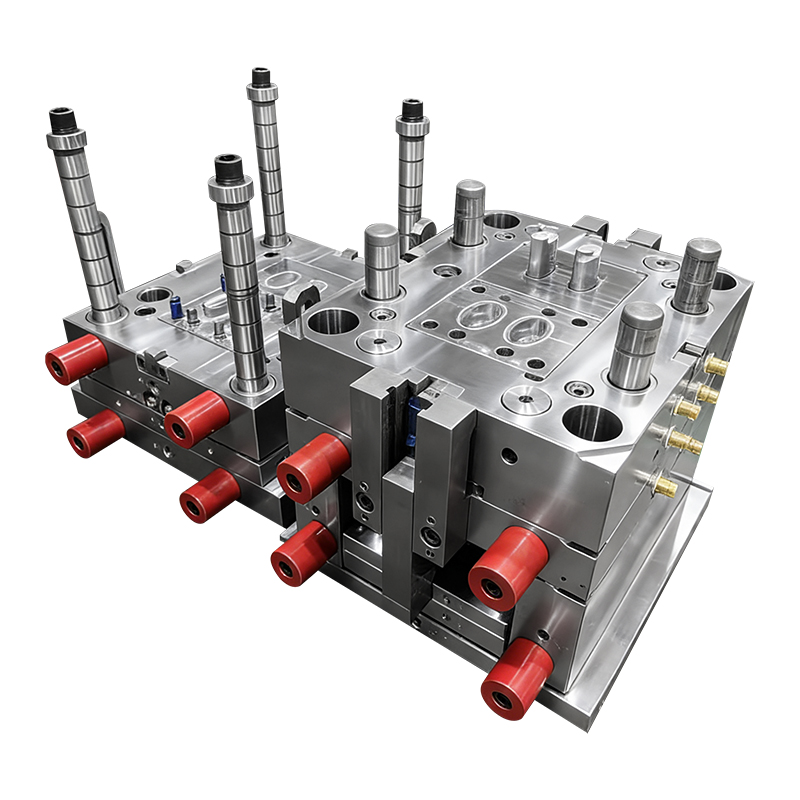

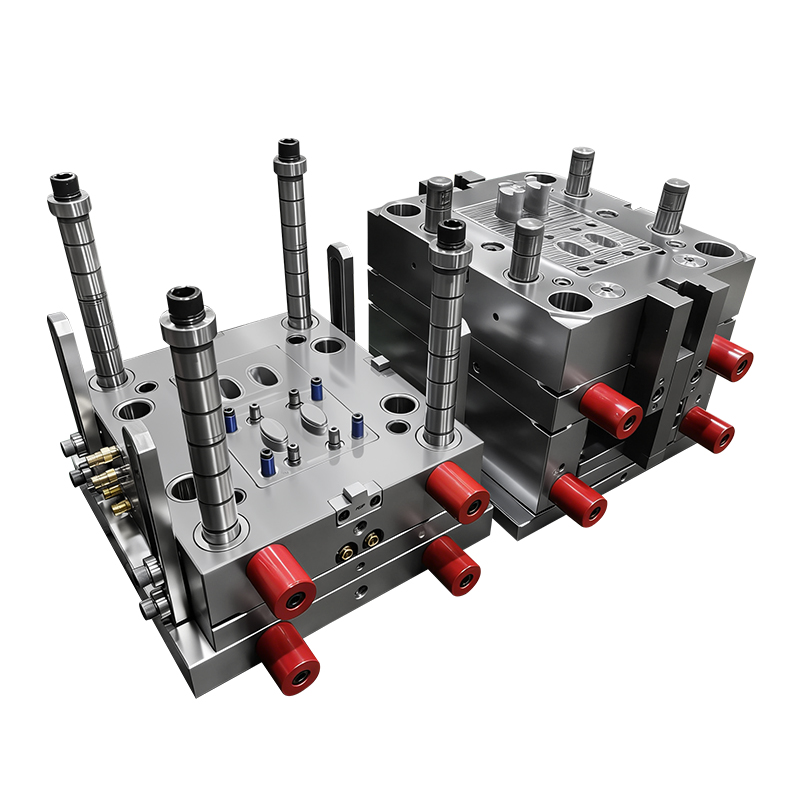

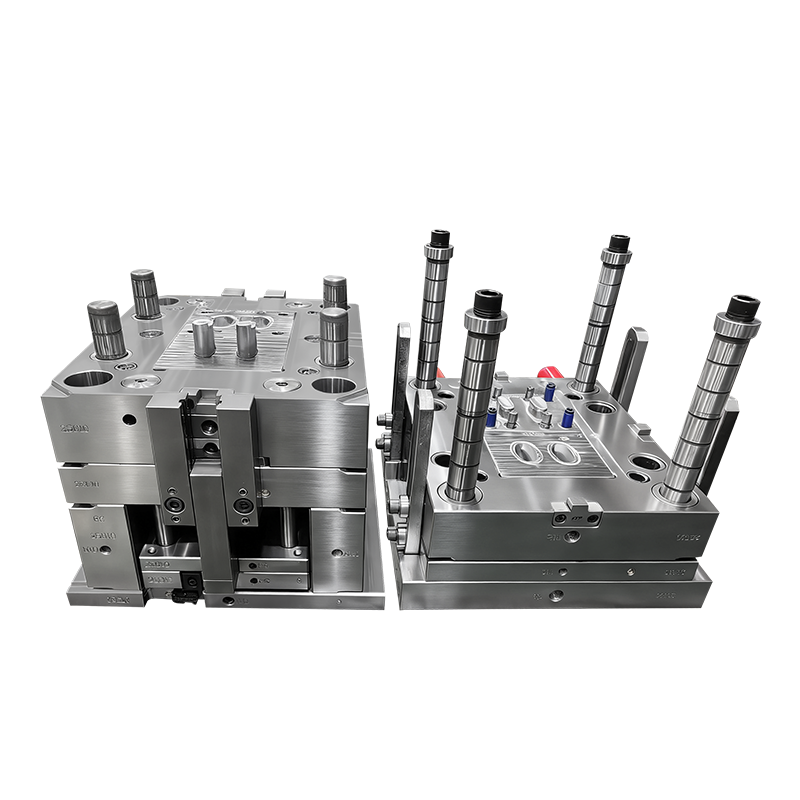

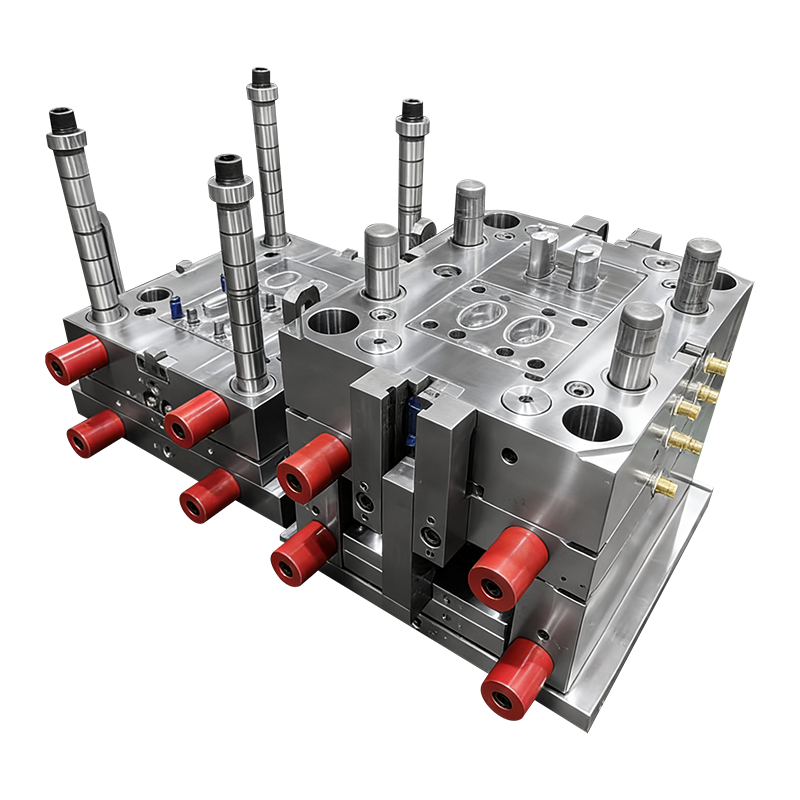

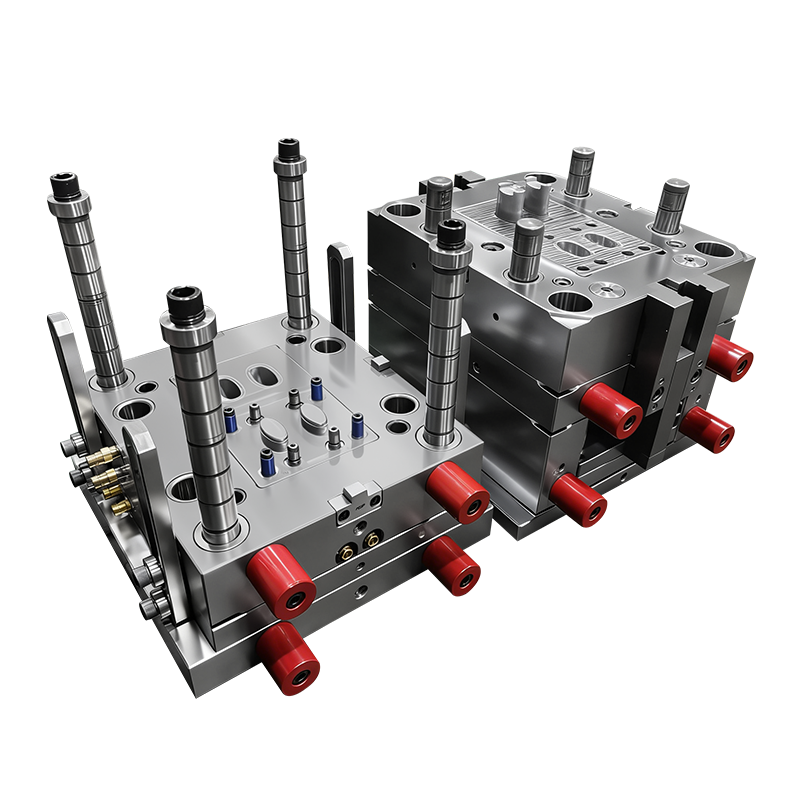

This high-precision custom injection mold is designed for manufacturing two matching plastic components: Cover and Body, optimized for mass production with consistent quality and cost efficiency. Built with robust materials and advanced molding parameters, it delivers reliable, repeatable results for your consumer or industrial applications.
| Quantity: | |
|---|---|
25010
YIXUN mold
This high-precision custom injection mold is designed for manufacturing two matching plastic components: Cover and Body, optimized for mass production with consistent quality and cost efficiency. Built with robust materials and advanced molding parameters, it delivers reliable, repeatable results for your consumer or industrial applications.
Core Specifications | Detailed Parameters |
Primary Application | Ford brand automotive plastic holders, compatible with various passenger car and commercial vehicle bracket components |
Mold Type | Custom injection Mold |
Standard Mold Weight | 2500KGS (fully customizable based on product size and structure) |
Mold Steel Options | P20, H13, 718, and other premium grades (selected based on production volume and performance requirements) |
Machining Tolerance | Micron-level precision, ±0.005mm |
Core Manufacturing Processes | High-precision CNC Machining, EDM, Wire Cutting, Professional Heat Treatment, Polishing & Texturing |
Standard Service Life | 500,000× to 1,000,000× production cycles (depending on material and heat treatment) |
Export Markets | USA, North America, Europe, and global regions |
Industry Compliance | IATF16949, ISO9001 Certified |
Lead Time | 3-6 weeks for standard projects, expedited options available for urgent requirements |
✅ High-Efficiency Multi-Cavity Design
The 2+2 cavity layout allows simultaneous production of 2 Cover and 2 Body parts per cycle, doubling output while maintaining strict dimensional consistency. This configuration cuts per-unit production costs and shortens lead times for large orders.
✅ Precision-Tuned for PP Material
Polypropylene (PP) is chosen for its excellent chemical resistance, low cost, and lightweight properties. The mold is calibrated to a shrinkage rate of 1.016, ensuring the final parts fit perfectly with no assembly issues.
✅ Clean & Aesthetic Molding with Point Gate
The fine nozzle point gate leaves minimal gate marks on the finished parts, eliminating the need for secondary trimming and delivering a smooth, high-quality surface finish ideal for visible consumer products.
✅ Durable 2083 Mold Steel Construction
The front mold is crafted from 2083 steel heat-treated to HRC 48–52, offering exceptional wear resistance, corrosion resistance, and long mold life. This ensures consistent part quality even after millions of production cycles, reducing maintenance and replacement costs.
✅ Customizable Design for Your Needs
This mold is built to your exact specifications, with flexibility to adjust dimensions, colors, and material grades (e.g., food-grade PP) to match your product requirements.
These Cover and Body components are ideal for a wide range of applications, including:
Household containers and closures
Cosmetic packaging
Small electronic device housings
Food-safe storage products
Consumer goods requiring snap-fit assembly
Consistent Quality: Precision engineering and high-grade materials ensure tight tolerances and uniform part quality.
Cost-Effective Production: Multi-cavity design reduces cycle times and per-unit costs for mass production.
Low Maintenance: Hardened 2083 steel minimizes wear and extends the mold’s operational lifespan.
Custom Support: Full design and manufacturing support to align the mold with your unique product requirements.
