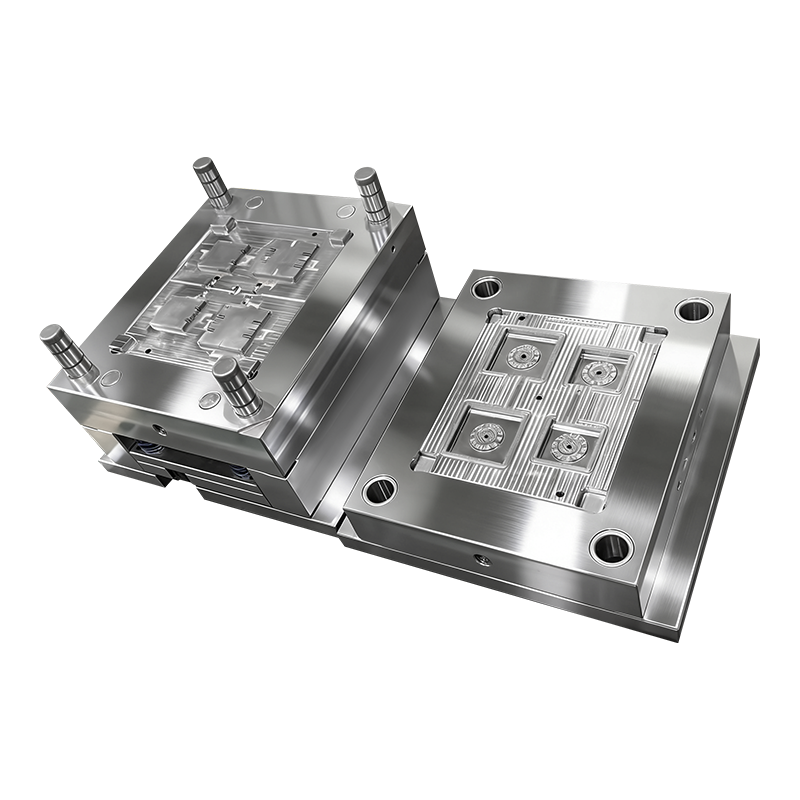

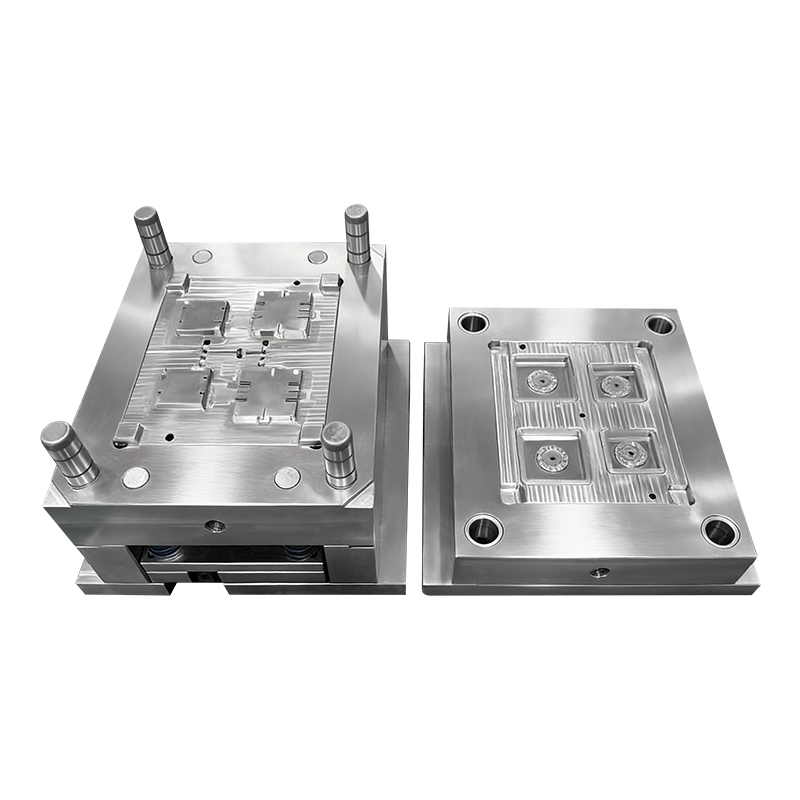

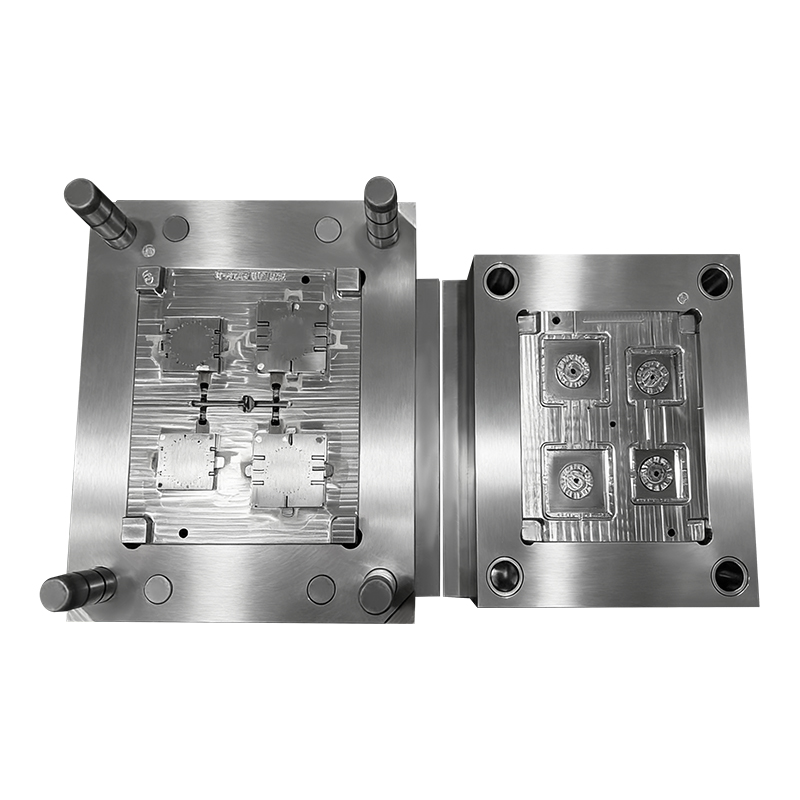

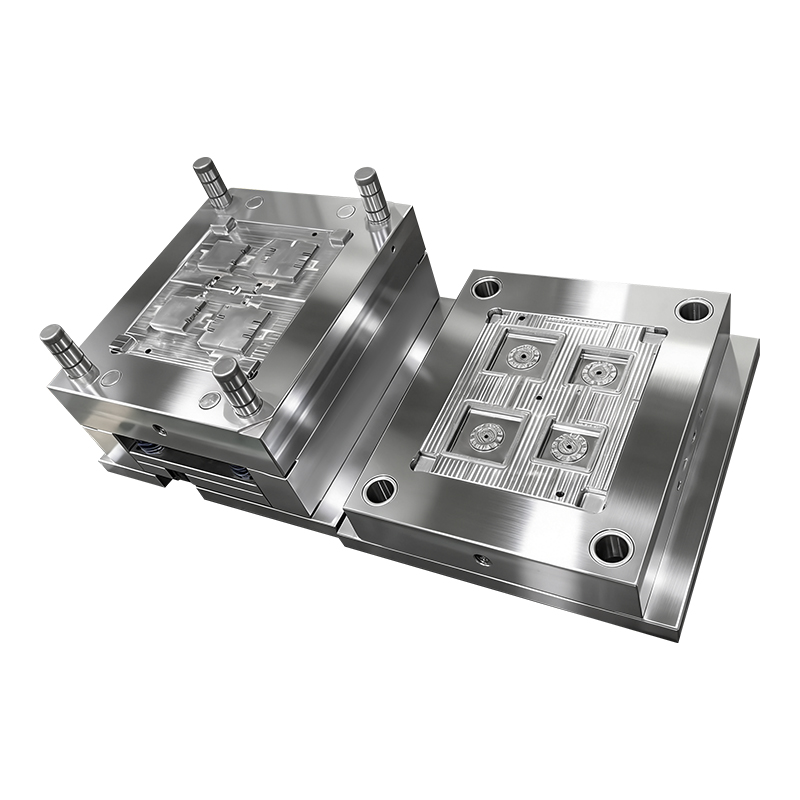

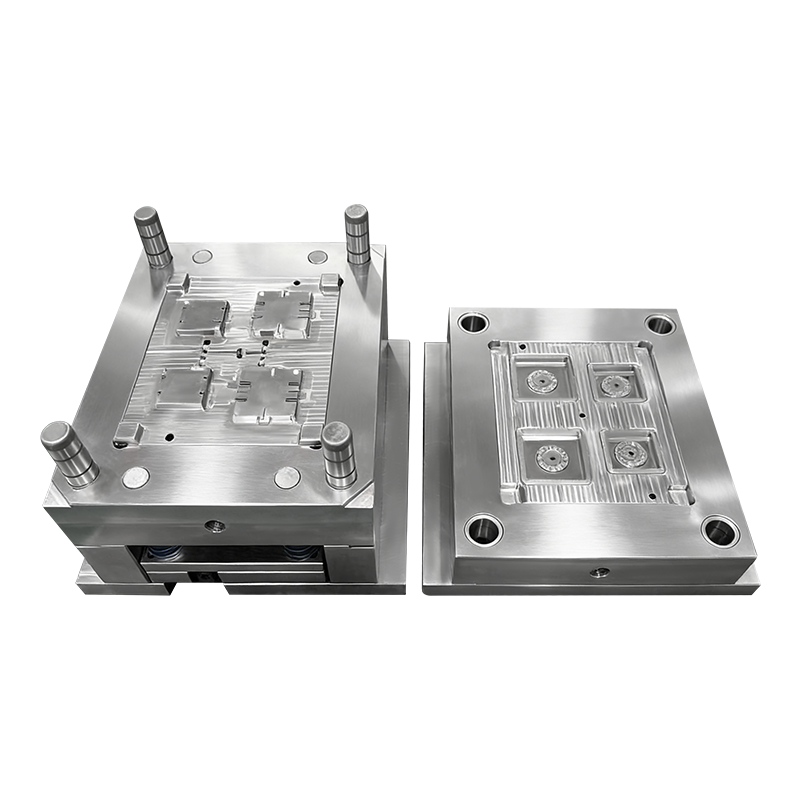

This is a 2+2 cavity injection mold specially developed for ABS floor heating small face cover. The mold adopts horn gate + side entry gating system, made of premium 1.2083ESR stainless steel hardened to HRC48–52, with polished cavity and textured surface. It is designed for mass production of small, rigid, good-looking floor heating covers with stable quality and long service life.
![2+2 ABS Material Horn Gate Side]( "2+2 ABS Material Horn Gate Side")
Key Features
✅ 2+2 Cavity Layout
Balanced runner design ensures uniform filling, consistent size and appearance for all four pieces per shot. Great for medium-to-high volume production.
✅ Horn Gate + Side Entry System
Horn gate: smooth flow, no marks on visible surface.
Side entry: avoids gate marks on front face, clean appearance for heating covers.
✅ 1.2083ESR Stainless Steel (HRC48–52)
ESR refined steel: high polishability, corrosion resistance, long mold life.
Hardness HRC48–52: anti-wear, stable dimension for mass production.
✅ Polished + Textured Surface
Cavity polished: smooth front surface.
Texture on non-visible area: hides minor defects, improves grip and assembly.
✅ ABS Material Optimized
Suitable for general ABS, high impact ABS, and heat-resistant ABS. Reduces shrinkage, warpage, and short shot.
✅ Precision for Floor Heating Covers
Strict tolerance on mounting holes, snap fits, and flatness. Parts fit perfectly with floor heating systems.
Product Specifications
| Item | Specification |
| Mold Type | 2+2 Cavity Injection Mold |
| Product Name | Floor Heating Small Face Cover |
| Material | ABS |
| Gate System | Horn Gate + Side Entry |
| Mold Steel | 1.2083ESR Stainless Steel |
| Hardness | HRC48–52 |
| Cavity Surface | Polished + Texture |
| Core | Finished Core |
| Part Size | Custom per drawing |
| Color | Custom |
| Mold Life | 500,000–800,000 shots |
| Application | Floor heating system covers / small panel parts |
Applications
This mold is mainly used for manufacturing ABS floor heating small face covers, widely applied in:
Household floor heating systems
Commercial heating projects
Underfloor heating panel accessories
Wall-mounted heating covers and decorative panels
FAQ
Q1: What material is recommended for this floor heating cover?
A: Standard ABS is most common. We also support high-impact ABS, flame retardant ABS, and heat-resistant ABS according to your requirements.
Q2: Why choose horn gate + side entry for this part?
A: Horn gate ensures smooth filling for small covers. Side entry keeps the front surface clean with no gate marks, meeting appearance requirements.
Q3: Is 1.2083ESR steel suitable for ABS?
A: Yes. 1.2083ESR has excellent polishability and corrosion resistance, ideal for ABS and general plastic parts, with long mold life.
Q4: Can you do both polished and textured surfaces on one mold?
A: Yes. We polish the visible area and apply texture on the non-visible area for better appearance and assembly performance.
Q5: What is the typical lead time for this mold?
A: Normally 25–35 days after drawing confirmation, depending on part complexity.
Q6: Can you provide samples before mass production?
A: Yes. We provide T1 samples for your approval before mass production.
