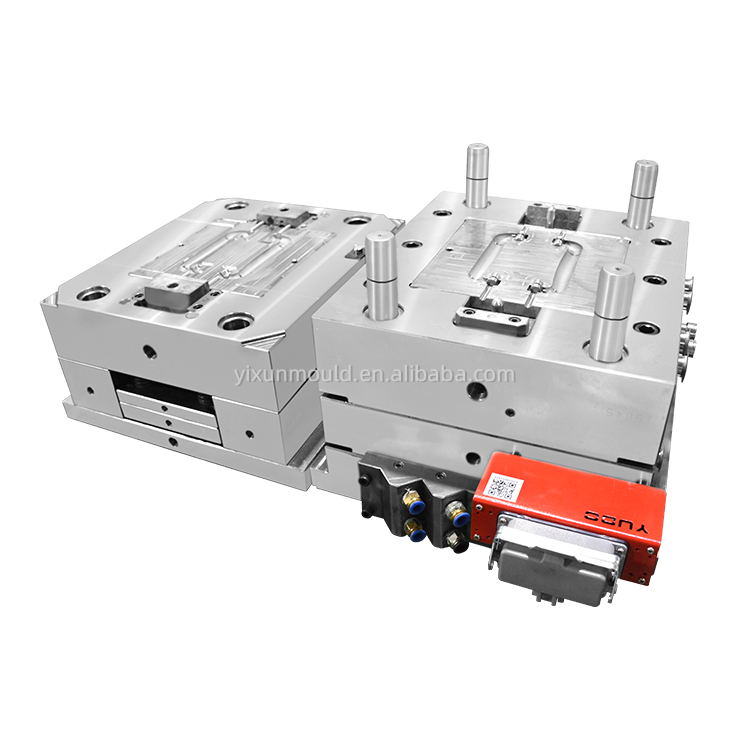

YIXUN mold
8480419090
Mold Base: 4Cr13 Stainless Steel – Corrosion-resistant, rigid, and supports 1,000,000+ injection cycles; withstands the abrasive nature of PP (even glass fiber-reinforced PP) during long production runs.
Cavity & Core: ASSAB S136 ESR Steel – Vacuum heat-treated to HRC 52-55, offering exceptional wear resistance and dimensional stability; polished to Ra 0.015μm for smooth vent cap surfaces (avoids PP residue buildup and ensures easy ejection).
Hot Runner Components: High-precision copper heaters + beryllium copper nozzles – Ensures uniform temperature control (190-210℃, optimized for PP) and prevents material solidification in flow channels, reducing waste by 20% compared to cold runner molds.
PP Material Optimization: Molded with widened flow channels and rounded corners – Addresses PP’s low viscosity and fast cooling characteristics, ensuring full filling of micro-vent structures without short shots or flow marks.
| Cavity Configuration | Daily Output (8-Hour Shift) | Unit Cost Reduction | Key Benefit |
| 1×8 Cavity (Hot Runner) | 30,000-35,000 vent caps | 30-40% vs. 1-cavity molds | Ultra-high efficiency for mass production; lower per-unit tooling cost. |
Vent Structure Precision: Micro-machined channels (0.2-0.8mm diameter) or slotted vents with tolerance ±0.02mm – Ensures consistent air flow (tested to 5-15 L/min airflow rate) while blocking particles ≥50μm.
Hot Runner System: Valve-gate hot runner (8 independent nozzles) – Enables synchronized filling of all 8 cavities, eliminating pressure imbalances and ensuring uniform wall thickness (1.0-1.5mm) across all parts.
Cooling System: 360° spiral cooling channels + dedicated cooling for vent structures – Reduces cycle time to 18-22 seconds per 8-piece batch and prevents PP shrinkage/warping (dimensional accuracy ±0.03mm).
Sealing & Fit: Precision-machined outer diameter and snap-fit grooves – Ensures tight, leak-proof installation with host products (compatible with automotive housings, packaging containers, and industrial enclosures).
Ejection System: Synchronized soft-eject pins with Teflon coating – Prevents scratches on PP surfaces and enables seamless robotic part removal (compatible with automated production lines).
Material Safety & Standards: Mold compatible with food-grade PP (FDA 21 CFR Part 177) and industrial-grade PP (ISO 10993); meets automotive (IATF 16949) and industrial packaging (ASTM D4101) standards.
Strict QC Protocols:
72-hour continuous cycle testing with PP materials to verify hot runner stability and part consistency.
100% dimensional inspection via CMM (focus on vent hole diameter, outer diameter, and snap-fit dimensions).
Airflow and particle-blocking testing for sample vent caps (test reports provided upon request).
Durability Testing: Molded PP vent caps pass 5,000+ insertion/removal cycles and 1000-hour environmental testing (temperature: -40~80℃; humidity: 0-95%) without structural failure.
| Parameter | Details |
| Mold Size | 500×420×320mm (compatible with 120-180 ton injection molding machines) |

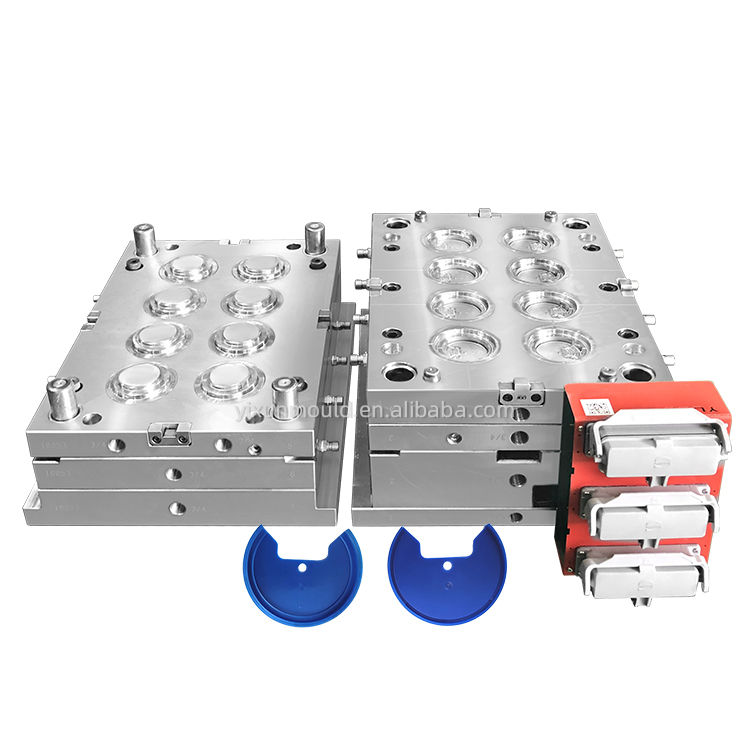

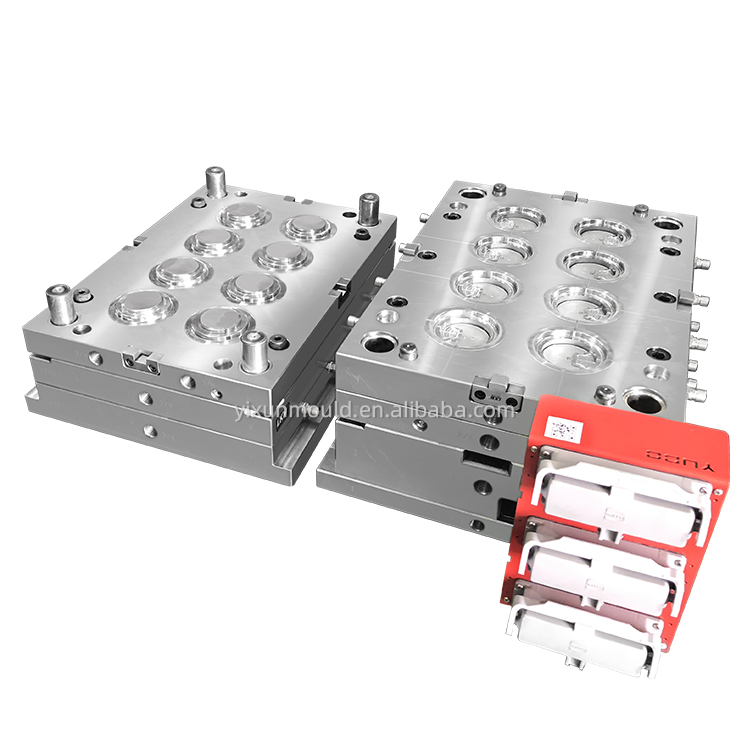

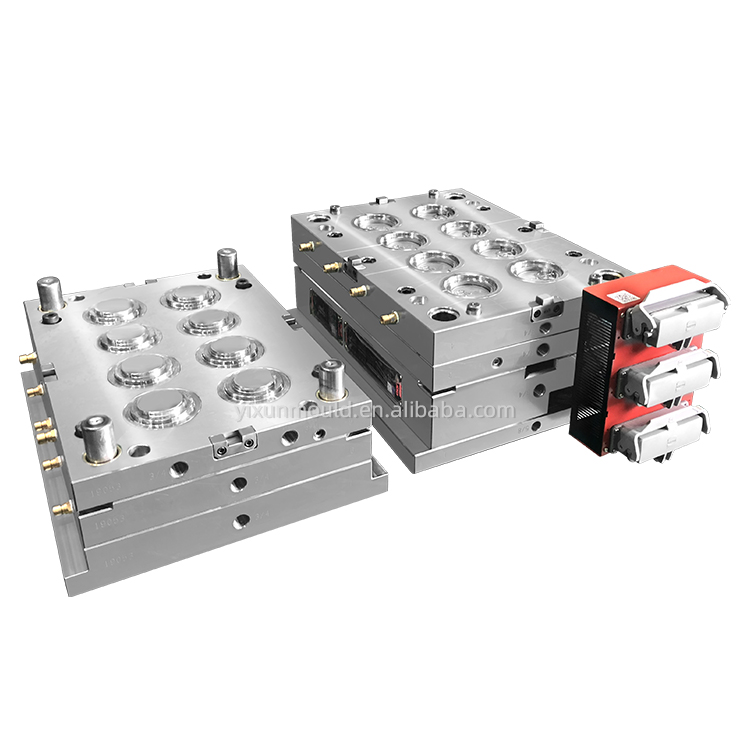

| Cavity Configuration | 1×8 Cavity (hot runner, valve-gate) |
| Cycle Time | 18-22 seconds per 8 vent caps |
| Service Life | ≥1,000,000 injection cycles |
| Applicable Materials | PP, PP+GF (10-30% glass fiber), food-grade PP |
| Dimensional Accuracy | ±0.03mm (critical features: vent holes, outer diameter, snap grooves) |
| Surface Finish | Mirror polish (Ra 0.015μm) for cavity/core; anti-rust coating for mold base |

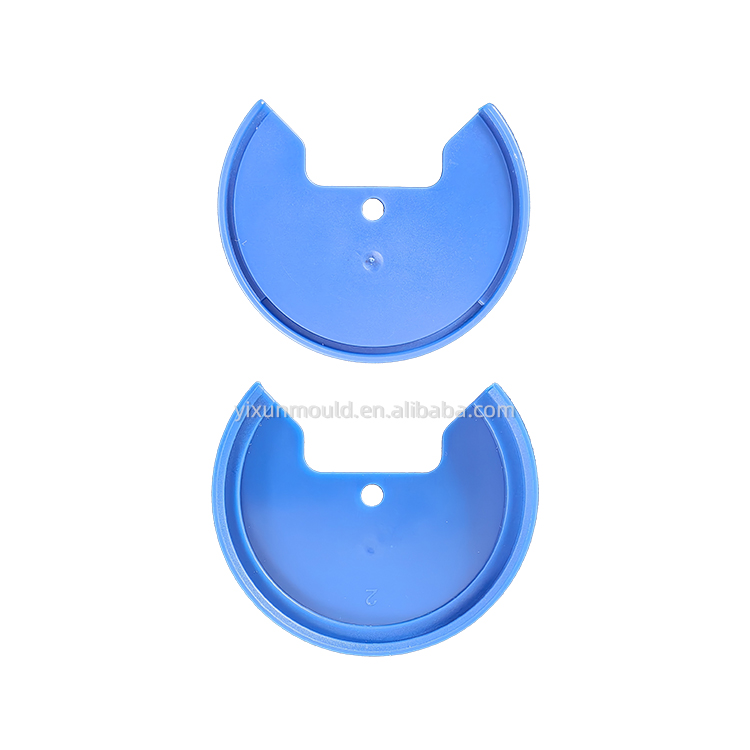

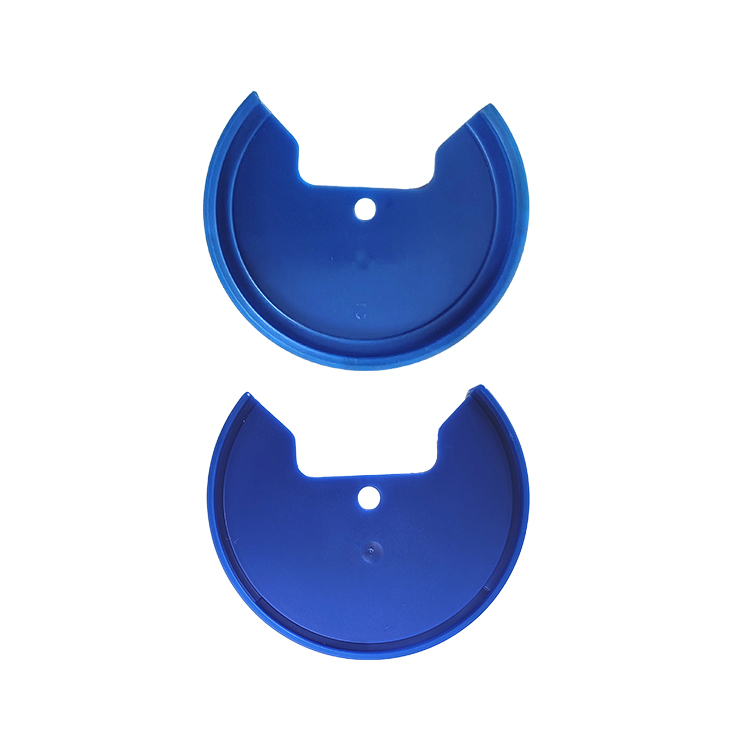

| Vent Cap Compatibility | Size range: 10mm-30mm diameter (automotive/industrial/packaging vent caps) |
| Hot Runner Brand | Optional: Mold-Masters, Husky, or custom brand (based on budget/requirements) |
Tailored Vent Cap Designs: Accept 2D/3D drawings for custom vent structures (e.g., multi-layered filters, directional vents), sizes, and outer shapes (round, square, threaded).
Hot Runner Customization: Choose valve-gate or open-gate hot runner systems; adjust nozzle spacing and temperature control zones for specific PP grades.
Material Adaptation: Modify mold for reinforced PP (PP+GF) with upgraded wear-resistant cavity inserts (tungsten carbide) to handle abrasive glass fibers.
After-Sales Service: 24-month warranty (covers hot runner components, mold steel, and manufacturing defects); 24/7 technical support for hot runner debugging and mold maintenance; free hot runner cleaning tools and maintenance training.
Maximized Production Efficiency: 8-cavity hot runner design delivers 30k+ daily output, ideal for high-volume orders and reducing per-unit costs.
PP Material Optimization: Tailored flow, cooling, and hot runner systems eliminate common PP molding defects (short shots, warpage, flow marks).
Precision Vent Performance: Micro-machined structures ensure consistent airflow and particle blocking—meeting industry-specific performance requirements.
Long-Term Reliability: Premium steel and hot runner components support 1M+ cycles, minimizing tooling replacement costs for mass production.
