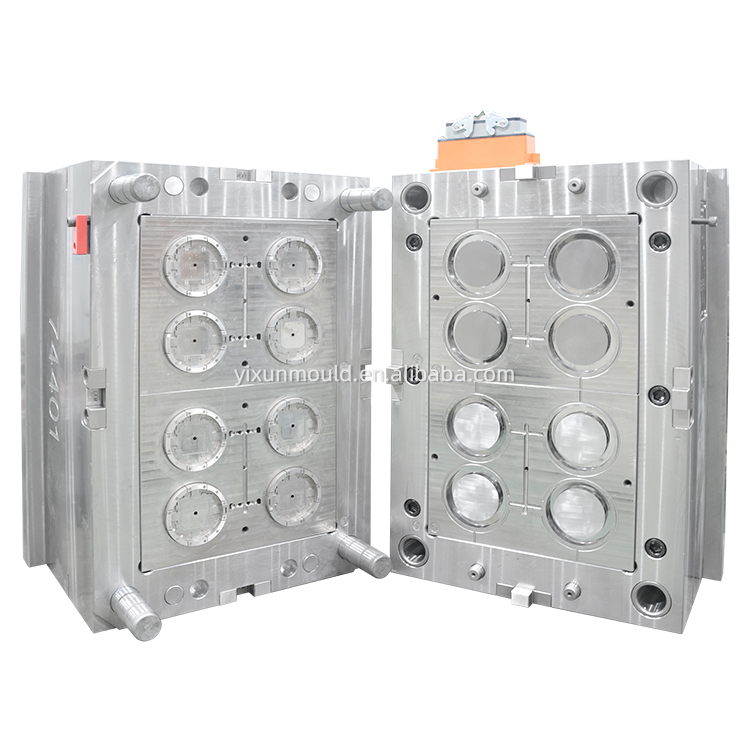

1*8 Cavity ABS Material 2083ESR HRC48-52 Mold Steel Polished Mold Universal Faceplate Mould

1*8 Cavity ABS Material 2083ESR HRC48-52 Mold Steel Polished Mold Universal Faceplate Mould

This high-precision custom injection mold is purpose-built for mass production of ABS universal faceplates. Featuring a high-efficiency 1×8 cavity layout, premium 2083 ESR mold steel hardened to HRC48-52, and fully polished mold cavities, this tooling delivers consistent, defect-free parts with exceptional surface quality and long-term production reliability. Designed for electrical, smart home, and industrial applications, it balances high output, tight tolerances, and low maintenance requirements.

Quantity:
Availability:





Inquire Add to Basket

Model:
24150
Brand:
YIXUN mold
Code:
8480419090

Product Description

Product Overview

This high-precision custom injection mold is purpose-built for mass production of ABS universal faceplates. Featuring a high-efficiency 1×8 cavity layout, premium 2083 ESR mold steel hardened to HRC48-52, and fully polished mold cavities, this tooling delivers consistent, defect-free parts with exceptional surface quality and long-term production reliability. Designed for electrical, smart home, and industrial applications, it balances high output, tight tolerances, and low maintenance requirements.

Key Features

✅ High-Efficiency 1×8 Cavity Design

The 1×8 cavity configuration produces 8 identical faceplates per cycle, drastically boosting production throughput for high-volume orders. The balanced runner system ensures uniform melt flow to every cavity, eliminating quality variation between parts and minimizing cycle time.

✅ Premium 2083 ESR Mold Steel (HRC48-52)

Constructed from corrosion-resistant 2083 ESR stainless steel, hardened to HRC48-52, this mold offers excellent wear resistance, dimensional stability, and long service life (≥1,000,000 cycles). The ESR (Electro Slag Remelting) process ensures ultra-clean steel with minimal inclusions, ideal for high-polish surfaces and long mold life.

✅ Polished Mold Cavities for Aesthetic Finish

The mold cavities are precision-polished to a high-gloss finish, ensuring the final ABS faceplates have smooth, blemish-free surfaces with consistent luster. This eliminates the need for secondary finishing, reduces post-processing costs, and meets strict cosmetic requirements for consumer-facing products.

✅ Optimized for ABS Material Performance

Engineered specifically for ABS (Acrylonitrile Butadiene Styrene) resins, including impact-modified and flame-retardant grades, this mold accommodates ABS’s processing characteristics to produce rigid, impact-resistant, and dimensionally stable faceplates. The optimized cooling system prevents warpage, sink marks, and flow lines.

✅ Robust, Low-Maintenance Construction

Featuring heavy-duty guide pillars, precision-aligned mold plates, and a reliable ejection system, this mold ensures smooth, repeatable operation cycle after cycle. The corrosion-resistant 2083 ESR steel minimizes downtime from rust or material buildup, making it ideal for continuous production environments.

Technical Specifications

Parameter	Details
Mold Type	Custom Injection Mold for Universal Faceplates
Cavity Configuration	1×8 Cavity
Mold Steel	2083 ESR, Hardened to HRC48-52
Cavity Finish	High-Gloss Polished
Compatible Materials	ABS (including impact-modified, flame-retardant grades)
Certification	ISO9001
Mold Life	≥1,000,000 cycles (with proper maintenance)
Part Application	Electrical outlet faceplates, smart switch panels, control device covers, universal mounting faceplates
Cooling System	Optimized internal cooling channels for uniform temperature control

Application Scenarios

This mold produces high-quality ABS universal faceplates ideal for:

Residential and commercial electrical outlet/switch installations
Smart home automation control panels
Industrial control device mounting faceplates
Consumer electronics accessory covers
Custom modular enclosures requiring standardized faceplates

Why Choose Our Mold?

Unmatched Production Efficiency: The 1×8 cavity design delivers high output with consistent quality, reducing per-unit production costs for large orders.
Superior Surface Quality: Polished 2083 ESR steel cavities ensure smooth, scratch-resistant finishes that meet the highest aesthetic standards.
Long-Term Reliability: The durable 2083 ESR steel construction resists wear, corrosion, and deformation, extending mold life and minimizing downtime.
Full Customization: We offer complete OEM/ODM support, including design modifications, material adjustments, and surface finish customization to match your exact faceplate specifications.
Expert Engineering Support: Our team provides end-to-end assistance from design and prototyping to after-sales maintenance, ensuring your production runs smoothly.

Ready to start your custom universal faceplate mold project? Contact us today to request a quote, review detailed specifications, or discuss how our injection molding solutions can meet your production needs.
