1*4 PP Material Edge Gate Tunnel Gate Mold S136 HRC48-50 Steel Finished Core Mold VDI 24# Mold Finish Plastic Components Moulding

1*4 PP Material Edge Gate Tunnel Gate Mold S136 HRC48-50 Steel Finished Core Mold VDI 24# Mold Finish Plastic Components Moulding

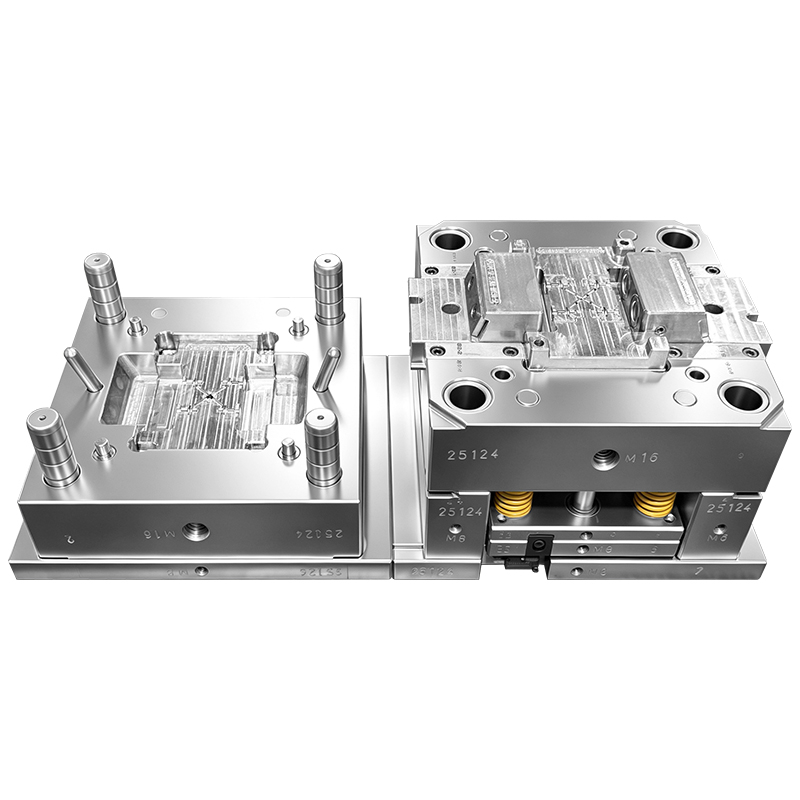

This is a high-precision 1×4 multi-cavity injection mold engineered for mass production of PP plastic components. Built with premium S136 stainless steel hardened to HRC48-50, it features a combined edge gate and tunnel gate system for versatile molding options, a precision-finished core, and a VDI 24# surface finish to deliver consistent, high-quality parts for a wide range of industrial and consumer applications.

Quantity:
Availability:





Inquire Add to Basket

Model:
25124
Brand:
YIXUN mold
Code:
8480419090

Product Description

This is a high-precision 1×4 multi-cavity injection mold engineered for mass production of PP plastic components. Built with premium S136 stainless steel hardened to HRC48-50, it features a combined edge gate and tunnel gate system for versatile molding options, a precision-finished core, and a VDI 24# surface finish to deliver consistent, high-quality parts for a wide range of industrial and consumer applications.

Key Features

✅ 1×4 Multi-Cavity Design

Four identical cavities ensure balanced material flow, uniform part quality, and high production efficiency, significantly reducing unit cost for large-scale PP component manufacturing.

✅ Dual Gate System: Edge Gate + Tunnel Gate

The mold is equipped with both edge gate and tunnel gate configurations, offering flexible solutions for different part designs. The tunnel gate allows automatic gate break during ejection, eliminating manual trimming and leaving minimal visible marks, while the edge gate ensures stable filling for complex geometries.

✅ S136 Mold Steel (HRC48-50)

Made of high-grade S136 stainless steel with a hardness of HRC48-50, this mold provides exceptional corrosion resistance, excellent polishability, and superior wear resistance. It ensures long mold life (over 500,000 shots) and consistent performance, even with repeated injection cycles for PP material.

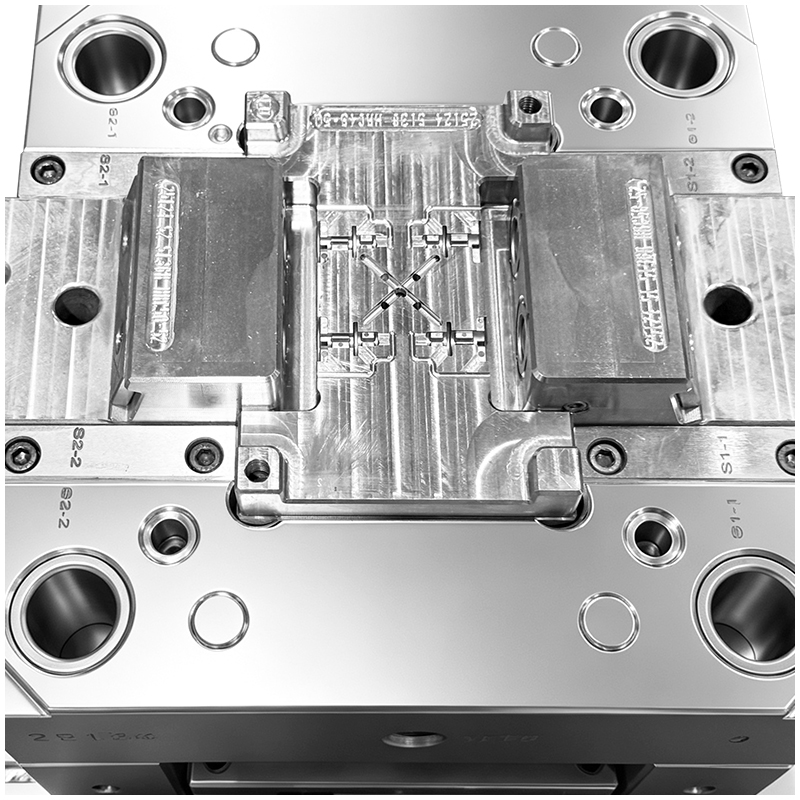

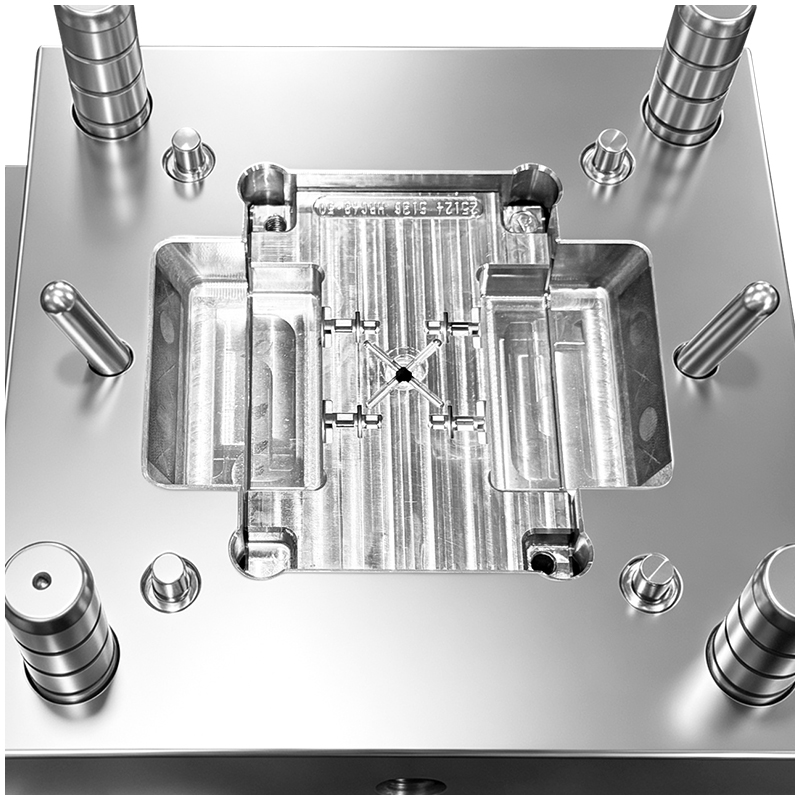

✅ Precision Finished Core Mold

The core mold is carefully finished to meet strict dimensional tolerances, ensuring accurate replication of complex part features such as ribs, bosses, and mounting holes. This guarantees the PP components meet all functional and assembly requirements.

✅ VDI 24# Mold Finish

The mold cavity is finished to VDI 24# standard, producing a uniform, fine-textured surface on the PP parts. This finish balances aesthetic appeal with practicality, providing a smooth yet non-slip surface that is ideal for various plastic components.

✅ Optimized for PP Material

Tailored for polypropylene molding, the mold features optimized flow paths, cooling channels, and venting systems to prevent common defects such as warpage, shrinkage, sink marks, and flow lines, ensuring consistent quality across every shot.

Technical Specifications

Item	Details
Mold Type	1×4 Multi-Cavity Injection Mold
Mold Steel	S136 Stainless Steel
Hardness	HRC48-50
Gate System	Edge Gate + Tunnel Gate
Core Mold	Precision Finished
Surface Finish	VDI 24#
Suitable Material	PP (Polypropylene)
Part Type	General Plastic Components, Industrial Parts, Consumer Goods
Mold Life	500,000+ shots
Customization	Available for custom part geometries

Application

This mold is suitable for manufacturing a wide range of PP plastic components, including:

Industrial housings and covers
Consumer electronic parts
Automotive interior components
Household appliance parts
Medical and food-grade plastic parts (S136 steel supports high hygiene standards)

The combination of S136 steel, VDI 24# finish, and dual gate system makes it ideal for producing parts that require both durability and consistent surface quality.

Why Choose This Mold?

Multi-cavity efficiency: 1×4 design maximizes production output while maintaining tight quality control.
Versatile gate options: Edge and tunnel gate configurations adapt to different part design needs, reducing post-processing work.
High-quality S136 steel: Ensures long mold life, corrosion resistance, and excellent polishability for demanding applications.
VDI 24# finish: Delivers a consistent, professional surface texture on PP parts without additional finishing steps.
Reliable core finishing: Guarantees dimensional accuracy and part functionality for complex geometries.

Core Mold VDI 24# Mold Finish Plastic Components Moulding

Plastic Components Moulding Core Mold VDI 24# Mold Finish Plastic Components Moulding 1.2083ESR HRC50-52 Steel Finished Core Mold

1*4 PP Material Edge Gate Tunnel Gate Mold S136 HRC48-50 Steel Finished Core Mold VDI 24# Mold Finish Plastic Components Moulding

Key Features

Technical Specifications

Application

Why Choose This Mold?
