YIXUN mold
8480419090

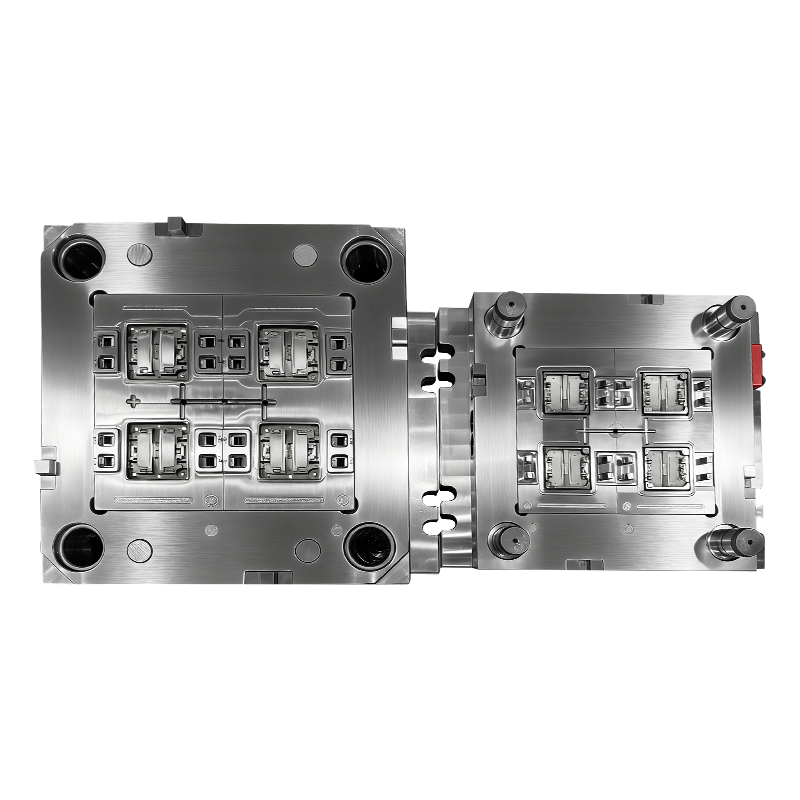

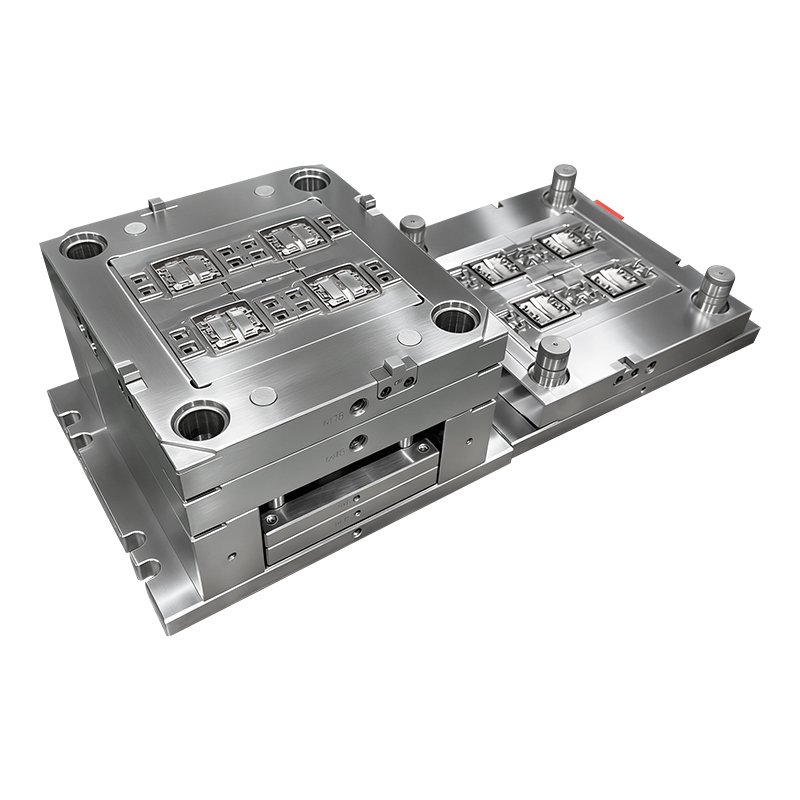

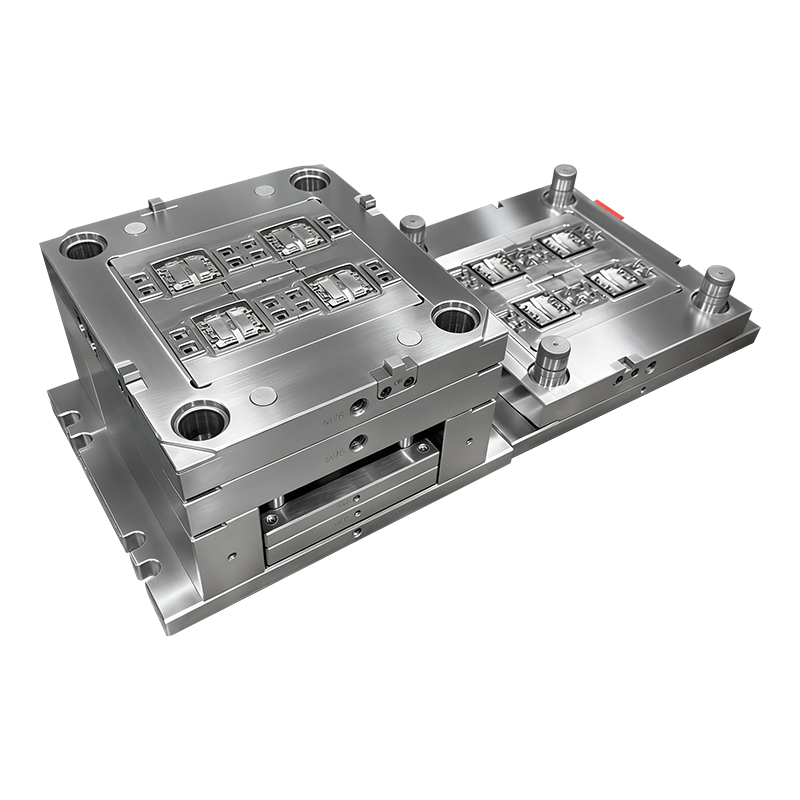

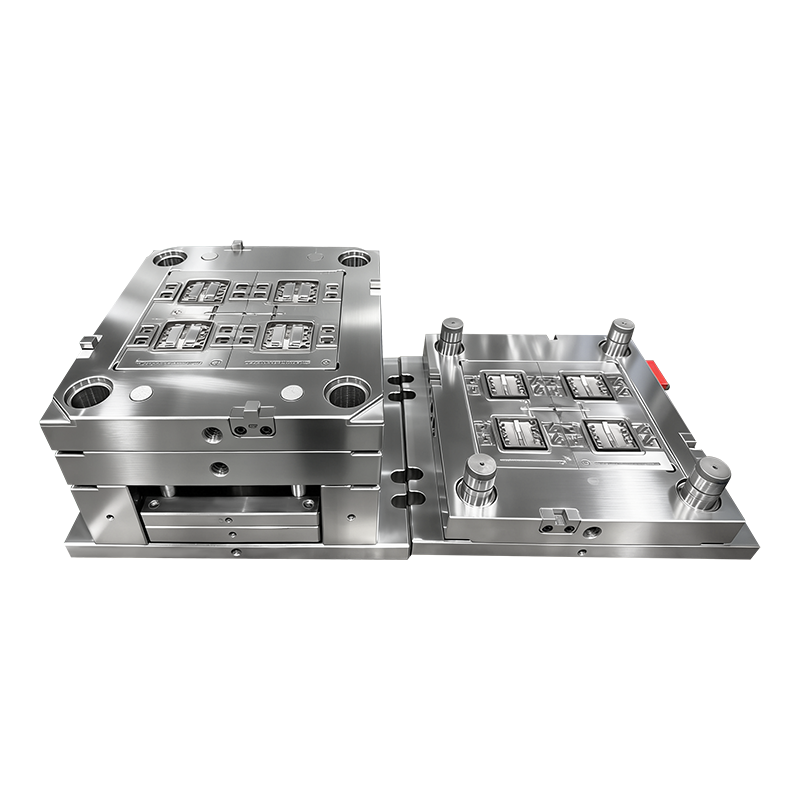

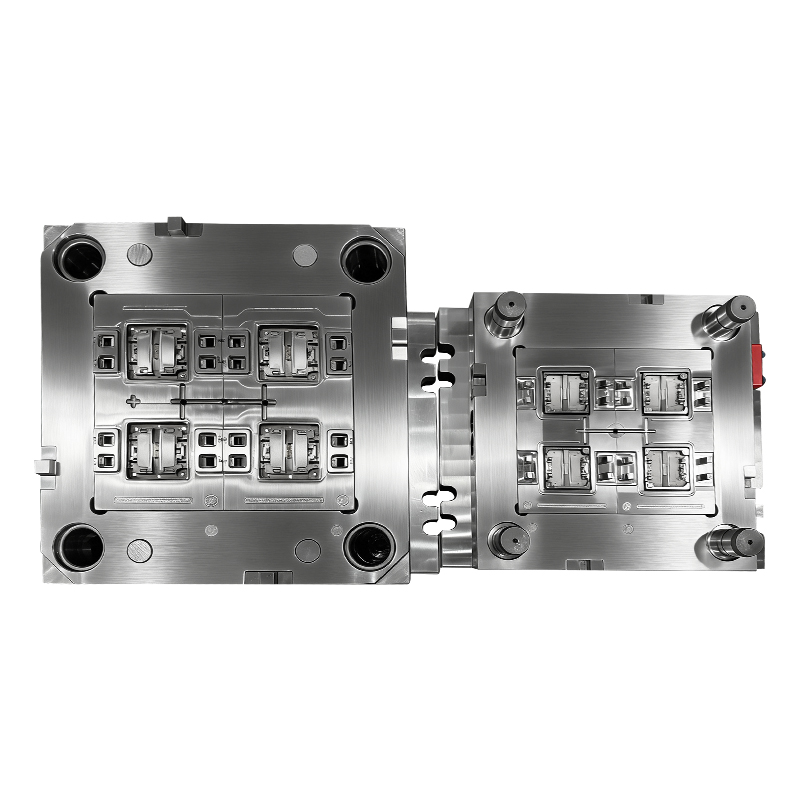

1×4 Multi-Cavity Design
Four identical cavities ensure balanced flow, uniform part quality, and high production efficiency. This multi-cavity structure significantly reduces unit cost for large orders of PC switch frames.
Large Sprue Submarine Gate System
The large sprue submarine gate allows automatic gate separation during ejection, eliminating manual trimming. It leaves no visible gate marks on the part surface, preserving the smooth, defect-free appearance of the white PC switch mounting frames.

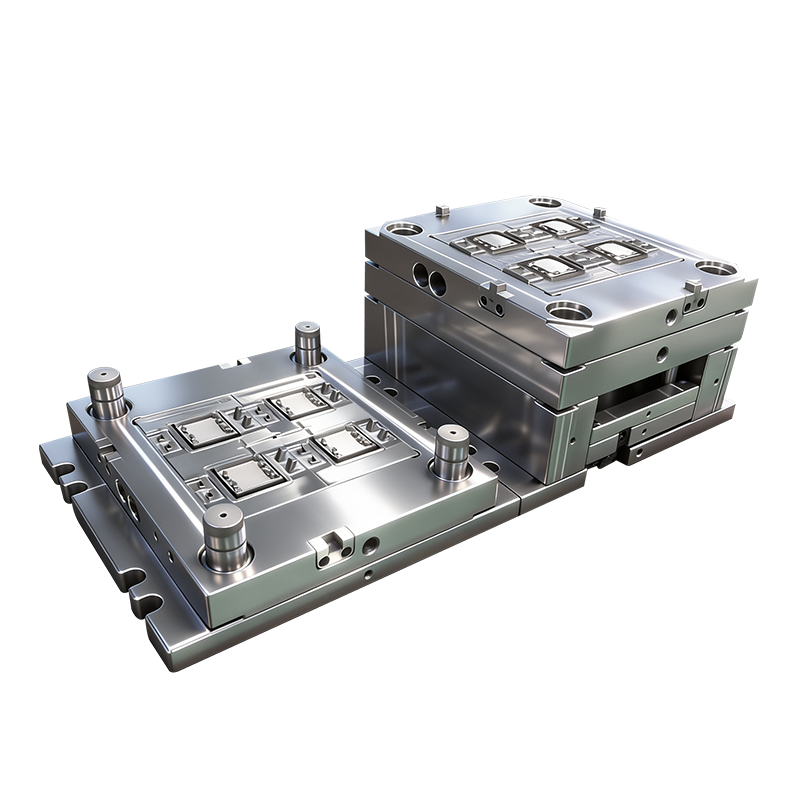

1.2083ESR Mold Steel (HRC50-52)
Made of ESR-refined 1.2083 stainless steel with hardness of HRC50-52, this mold offers excellent corrosion resistance, superior polishability, and long mold life. It is ideal for high-volume injection molding of white PC electrical parts, ensuring consistent performance over 500,000+ shots.
Polished Cavity & Finished Core
The cavity is precision polished to meet high appearance standards, while the core is carefully finished to ensure dimensional accuracy. This combination delivers smooth surfaces, tight tolerances, and no visible defects on the final PC switch parts.
Single Mounting Cover
The single mounting cover provides stable mold assembly, preventing plate shifting under high pressure. It improves overall mold rigidity and ensures reliable, repeatable molding cycles for long-term use.
Custom Tooling for PC Material
This custom mold is tailored for polycarbonate (PC) molding, with optimized flow paths and temperature control to prevent warpage, bubbles, or stress marks. It perfectly matches the complex geometries of switch mounting clips and screw holes.
| Item | Details |
|---|---|
| Mold Type | 1×4 Multi-Cavity Custom Injection Mold |
| Mold Steel | 1.2083ESR Stainless Steel |
| Hardness | HRC50-52 |
| Gate System | Large Sprue with Submarine Gate |
| Cavity & Core | Polished Cavity, Finished Core |
| Mounting Cover | Single Mounting Cover |
| Suitable Material | PC (Polycarbonate) |
| Application | Electrical switch mounting frames, socket mounting parts |
| Mold Life | 500,000+ shots (depending on usage conditions) |
Automatic gate break reduces post-processing work and labor cost.
High-grade 1.2083ESR steel ensures durability and long mold life for high-volume production.
Multi-cavity design maximizes output while maintaining consistent quality for PC switch frames.
Polished cavity and finished core guarantee smooth surfaces and tight tolerances.
Custom tooling tailored to your specific part geometry and production needs.
