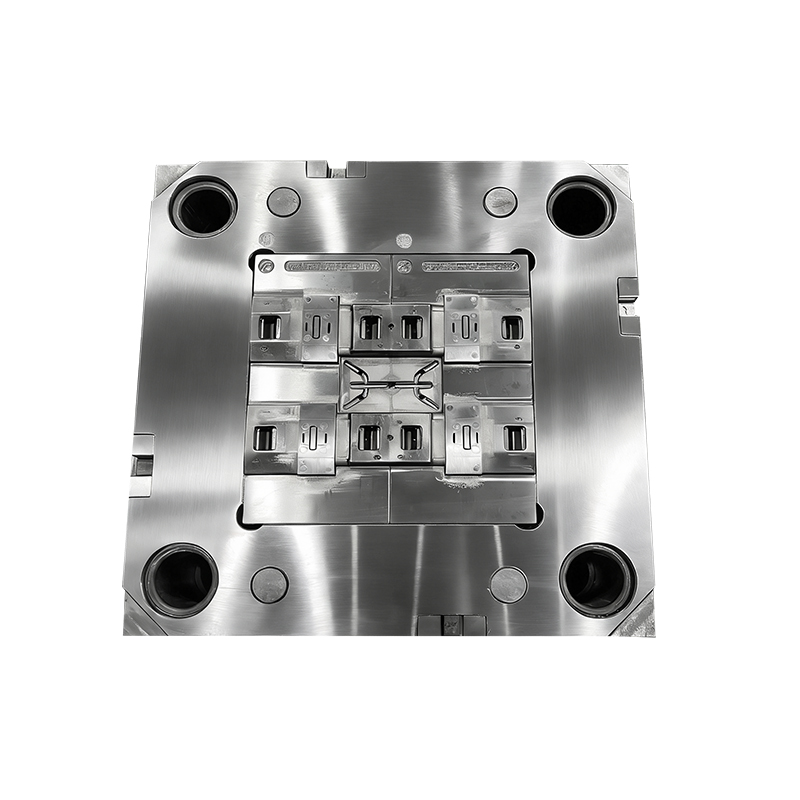

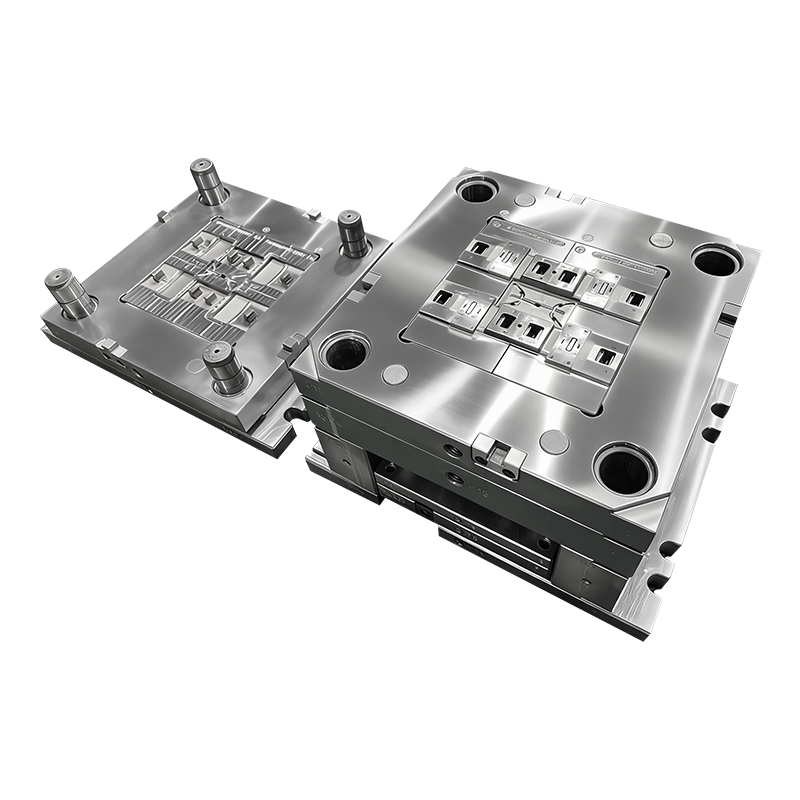

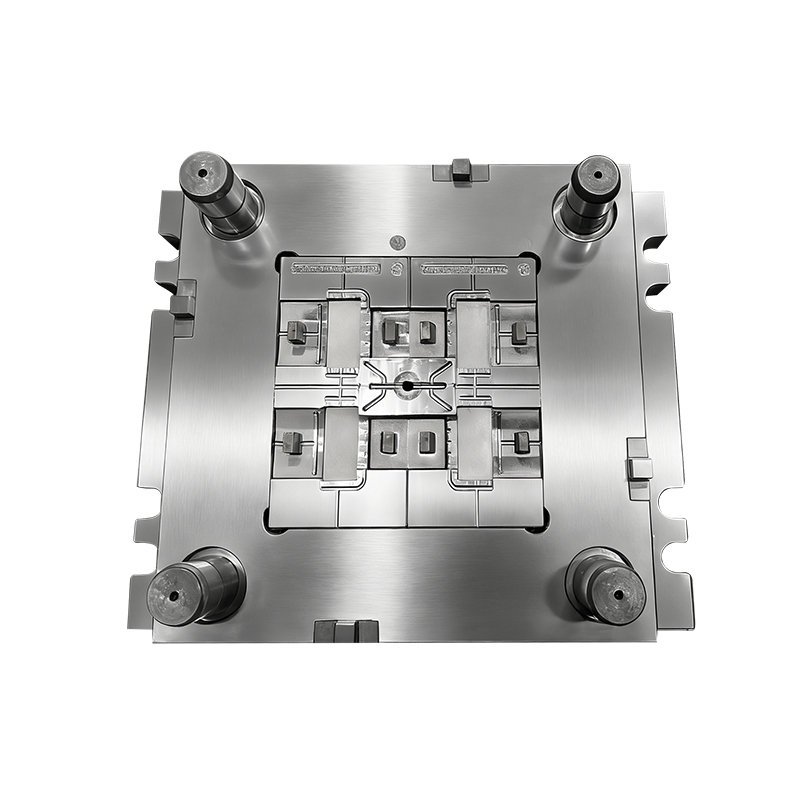

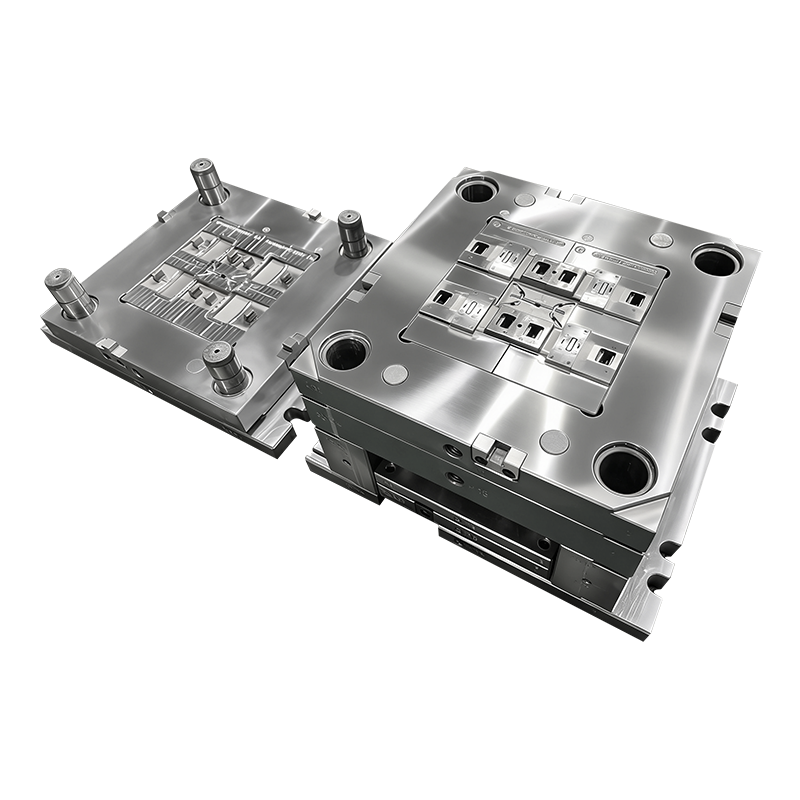

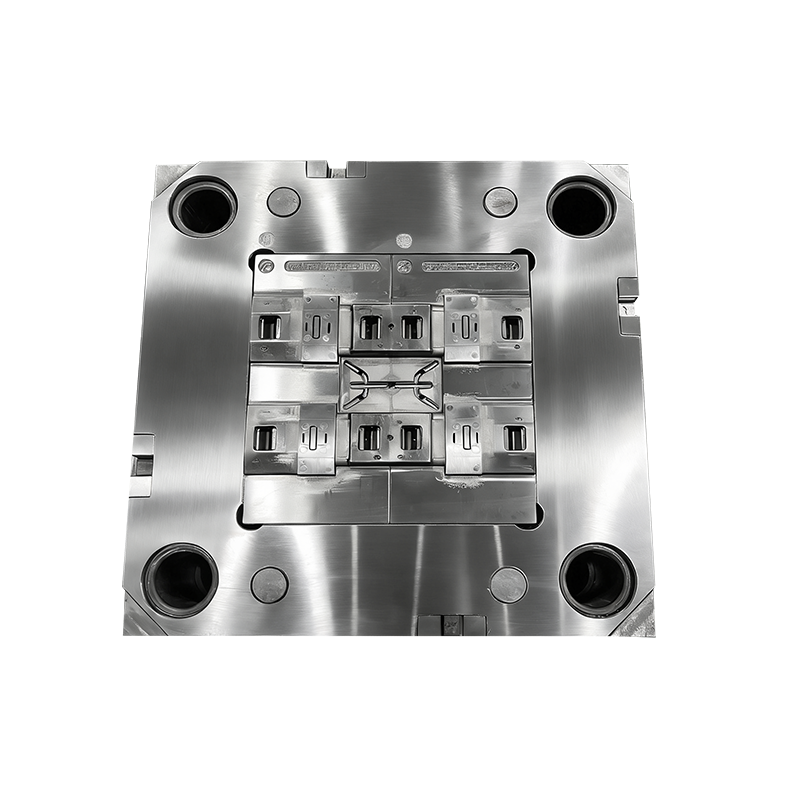

This custom 1*4 cavity ABS switch panel injection mold is professionally engineered for high-volume production of electrical switch panel plastic components. Adopting premium 1.2083ESR polished mold steel with heat-treated hardness HRC50-52, large sprue feeding system and precise submarine hidden gate structure, this mold delivers flawless surface finish, stable dimensional accuracy, excellent corrosion resistance and long service life for standard and customized ABS switch panel parts.
Product Overview
Electrical switch panels require strict surface uniformity, stable size tolerance, scratch-resistant surface and high batch consistency for household, commercial and industrial electrical systems. Our 1*4 cavity ABS switch panel injection mold is purpose-built for mass production of standard switch cover panels, wall switch plates and electrical plastic housings
Manufactured with high-purity 1.2083ESR stainless mold steel and fine mirror polishing treatment, the mold effectively avoids rust spots, surface streaks and blemishes during long-term ABS molding. Equipped with large sprue runner system and submarine hidden gate design, it realizes automatic gate breaking, clean product appearance and high-efficiency synchronous molding for four parts per cycle.
High-efficiency 1*4 balanced cavity layout for 4pcs synchronous molding
Premium 1.2083ESR stainless steel, HRC50-52 high hardness & full polish finish
Large sprue feeding design ensures fast and full ABS melt filling
Submarine hidden gate for invisible gate position, no manual trimming
Excellent anti-corrosion & anti-rust performance for long-term ABS mass production
Strict dimensional tolerance control for perfect switch panel assembly matching
Product Specifications
| General Product Specifications |
|
| Product Name | 1*4 Cavity ABS Switch Panel Injection Mold |
| Mold Cavity | 1*4 Cavity (4-cavity balanced synchronous layout) |
| Mold Steel Material | 1.2083ESR Stainless Mold Steel (ESR Electroslag Remelting) |
| Mold Hardness | HRC50-52 (Vacuum heat treatment) |
| Surface Treatment | Full fine polishing, smooth mirror finish, no tool marks |
| Molding Material | ABS (Acrylonitrile Butadiene Styrene) |
| Gate Type | Submarine Hidden Gate (Automatic breaking, invisible gate scar) |
| Runner System | Large Sprue Cold Runner (Fast filling, stable feeding) |
| Dimensional Tolerance | ±0.02mm high precision |
| Mold Lifespan | 800,000 – 1,200,000 shots |
| Shrinkage Compensation | 0.5%–0.7% (Professional ABS shrinkage reserved) |
| Application | Electrical wall switch panel, switch cover, socket panel, electrical plastic housing |
Key Features & Highlights
This high-precision ABS switch panel mold is optimized for mass electrical component production, focusing on flatness, surface beauty, batch consistency and long mold service life.
1*4 High-Efficiency Balanced Cavity Design: Four cavities adopt fully balanced runner and cooling layout, realizing synchronous filling and synchronous cooling. Each switch panel maintains consistent flatness and size, greatly improving output efficiency and reducing unit production cost.
1.2083ESR Premium Stainless Mold Steel: Adopts ESR electroslag remelting technology, with ultra-low impurity content, uniform internal structure and excellent polishing performance. After HRC50-52 high-hardness heat treatment, the mold features outstanding wear resistance, corrosion resistance and deformation resistance, effectively resisting ABS material gas corrosion and avoiding mold rust during long-term production.
Professional Full Polishing Finish: The entire cavity is finely polished to achieve ultra-smooth surface. No tool marks, no orange peel, no scratches. The molded ABS switch panel presents high flatness, uniform gloss and premium appearance without secondary polishing.
Large Sprue Feeding System: Optimized large sprue design increases melt flow rate, ensures fast and full filling of large flat switch panel cavities, effectively eliminates short shots, shrinkage dents and flow lines, improving surface qualification rate.
Submarine Hidden Gate Structure: The submarine gate is hidden under the product edge, realizing automatic gate breaking during ejection. No gate residue, no manual trimming required, perfectly keeping the switch panel surface intact and beautiful, suitable for high-grade electrical appearance parts.
Zero-Warpage & High Assembly Accuracy: Scientific cooling water channel layout balances internal and external cooling speed, controls ABS shrinkage stably, ensures super flatness of switch panel, guarantees precise assembly with wall socket and electrical accessories.
1.2083ESR Mold Steel & HRC50-52 Hardness Advantage
1.2083ESR is a high-performance stainless plastic mold steel specially suitable for high-appearance electrical plastic parts. With ESR electroslag remelting purification technology, the steel material eliminates internal porosity, segregation and impurities, achieving extremely uniform microstructure and excellent polishability.
After precise vacuum heat treatment to reach HRC50-52 high hardness, the mold obtains excellent mechanical stability: high surface hardness brings strong wear resistance to resist long-term ABS melt friction; high toughness prevents cavity deformation and edge collapse; outstanding anti-corrosion performance effectively avoids rust and oxidation caused by ABS gas precipitation, keeping the mold surface smooth and bright for a long time. It is the optimal steel choice for long-batch, high-appearance ABS electrical molds.
Large Sprue + Submarine Gate System Optimization
For large flat switch panel products, insufficient feeding and slow filling easily cause surface defects. This mold adopts large sprue runner system to increase melt flow and pressure transmission speed, ensuring uniform filling of every corner of the large flat cavity, solving common problems such as insufficient filling, uneven gloss and local shrinkage.
Cooperated with submarine hidden gate design, the gate position is hidden at the product non-appearance surface. During mold opening and ejection, the gate breaks automatically with no manual cutting needed. The finished switch panel has no gate scars, burrs or damage, maintaining perfect integrity of the appearance surface, which fully meets the high appearance standards of civil and commercial electrical products.
ABS Material Molding Performance
ABS material features good rigidity, strong impact resistance, stable chemical property and excellent surface printing and spraying performance, which is the mainstream material for electrical switch panels. This mold is professionally optimized for ABS molding characteristics: aiming at ABS small shrinkage rate (0.5%-0.7%), we reserve precise shrinkage tolerance; aiming at ABS easy-to-produce flow lines, we optimize runner flow velocity and mold temperature; combined with high-polish cavity, the mold produces switch panels with smooth surface, high flatness and stable size, supporting subsequent spraying, silk printing and UV treatment.
Precision Mold Engineering & Manufacturing
Every detail of the switch panel mold is strictly controlled by precision manufacturing technology:
Micro-precision CNC Machining: Cavity and core are processed by high-precision CNC machine tools, controlling tolerance within ±0.02mm to ensure consistent flatness and assembly accuracy of each switch panel.
Balanced 1*4 Cavity Runner: Multi-cavity flow balance analysis ensures consistent pressure and flow rate of each cavity, avoiding size difference and surface gloss difference between 4 cavities.
Uniform Cooling System: Dense and balanced water channel layout realizes synchronous cooling of large flat surface, effectively improving molding efficiency and preventing warpage and twisting deformation.
High-standard Manual Polishing: Layer-by-layer fine polishing removes all tool lines and grain lines, achieving mirror smooth finish for high-grade appearance requirements.
Application Scenarios
This 1*4 cavity ABS switch panel mold is widely applicable for mass production of various electrical plastic parts:
Household wall switch panels and socket panels
Commercial building electrical switch covers
Smart home switch plastic housings
Electrical control panel plastic accessories
Various flat high-appearance ABS electrical components
Customization Capabilities
We provide full-custom mold solutions according to customer drawings and samples:
Custom switch panel shape, size, hole position and structural features
Adjustable cavity number (1*1 / 1*2 / 1*4 / 1*8 multi-cavity customization)
Surface treatment customization: matte texture, fine texture, mirror polish
Runner system upgrade: hot runner system for zero waste production
Nitriding treatment for higher surface hardness and longer mold life
Quality Control & Inspection
We implement strict full-process quality inspection to ensure stable mold quality and zero-defect mass production:
CMM Dimensional Inspection: Verify cavity size, flatness and assembly tolerance to ensure ±0.02mm precision.
Hardness Testing: Random inspection of mold steel hardness to ensure stable HRC50-52.
Surface Polishing Inspection: Optical detection to confirm no scratches, pits or tool marks.
100% Mold Trial Test: Full machine trial production to check product flatness, surface appearance and gate effect.
Batch Consistency Test: Ensure uniform size and appearance of four-cavity products.
Durability & Lifecycle Advantage
Adopting high-purity 1.2083ESR stainless steel and HRC50-52 high-hardness heat treatment, this mold has excellent wear resistance and corrosion resistance. It can maintain stable precision and smooth surface under long-term continuous ABS molding, effectively reducing mold maintenance times. The service life reaches 800,000–1,200,000 shots, greatly reducing customer’s long-term mold replacement cost and production downtime.
Why Choose Us
Professional Electrical Mold Experience: Rich experience in switch panel, socket and electrical plastic mold manufacturing, familiar with ABS molding pain points.
Premium Material Guarantee: Adopt genuine 1.2083ESR imported steel with test reports, stable hardness and reliable performance.
High-precision Processing: Strict tolerance control and high-standard polishing ensure high-end product appearance.
Efficient Multi-cavity Solution: Balanced 1*4 cavity design improves output and reduces unit cost.
Complete After-sales Support: Provide mold trial guidance, process parameter adjustment and long-term technical support.
FAQ
Q1: Why choose 1.2083ESR steel for ABS switch panel mold?
1.2083ESR is stainless mold steel with excellent anti-corrosion and super polishing performance. ABS molding will produce slight corrosive gas, ordinary mold steel is easy to rust, while 1.2083ESR HRC50-52 high hardness effectively avoids rust, surface wear and product blemishes, keeping switch panel surface smooth and uniform for long-term mass production.
Q2: What are the advantages of submarine gate for switch panel?
Submarine hidden gate realizes automatic breaking during demolding without manual trimming. No gate scar on the product surface, ensuring the integrity and beauty of the flat switch panel, perfectly suitable for electrical appearance parts with high surface requirements.
Q3: What is the benefit of large sprue design?
Switch panel is a large flat thin-wall product. Large sprue increases melt flow and filling speed, effectively solving filling insufficiency, flow lines and uneven gloss problems, improving product surface qualification rate and molding stability.
Q4: How to ensure no warpage for ABS switch panel?
We optimize balanced cooling water channel layout, match scientific mold temperature and cooling time parameters, and reserve accurate ABS shrinkage rate, which effectively releases internal stress and ensures super flatness of finished switch panel without warpage or deformation.
Q5: How long is the mold service life?
With genuine 1.2083ESR high-hardness steel and fine polishing treatment, the mold stable service life reaches 800,000 to 1,200,000 shots, with low failure rate and low maintenance cost.
