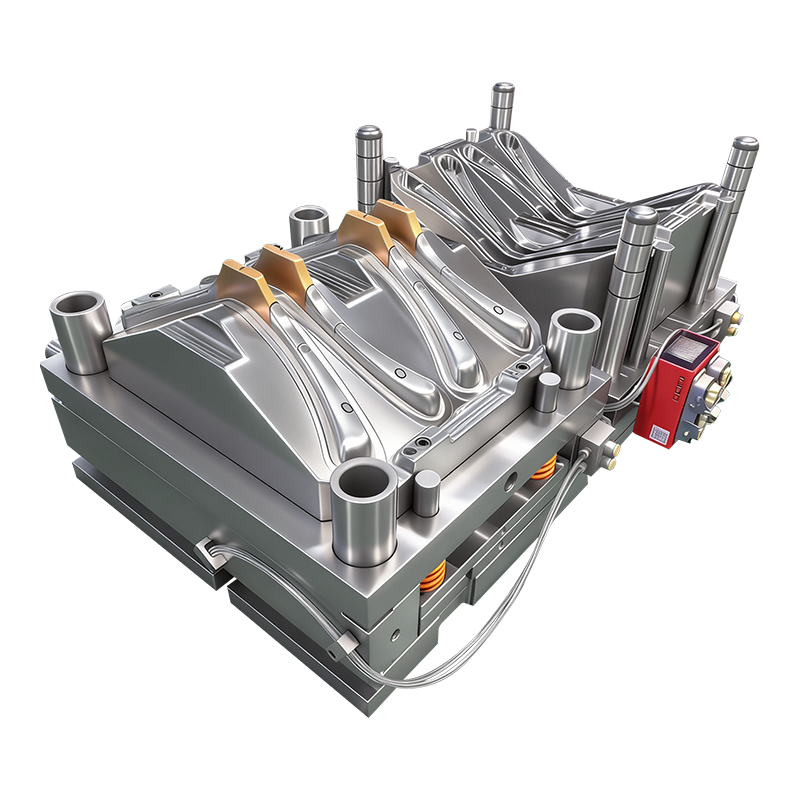

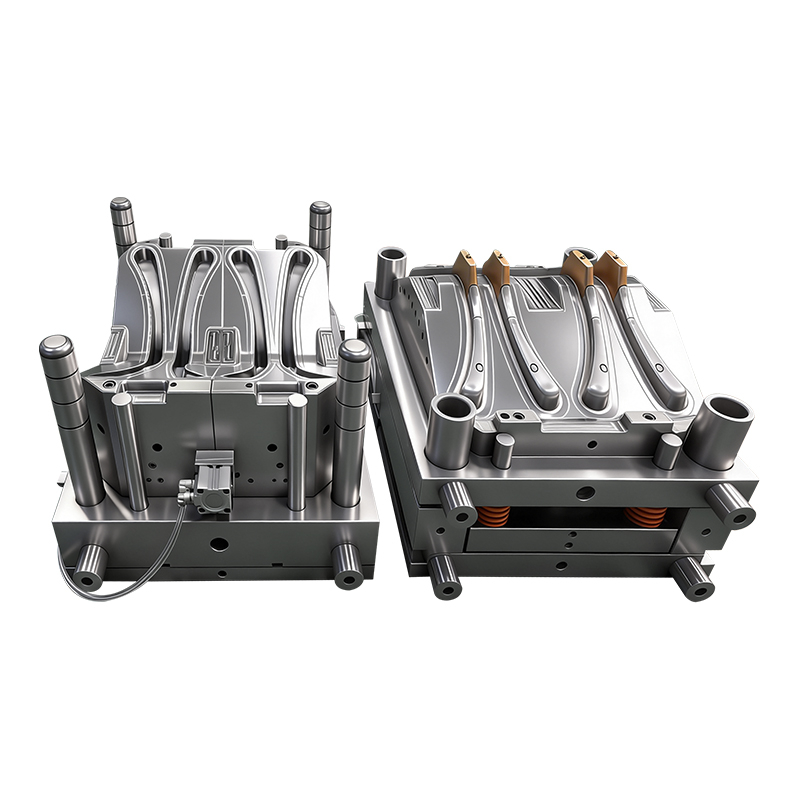

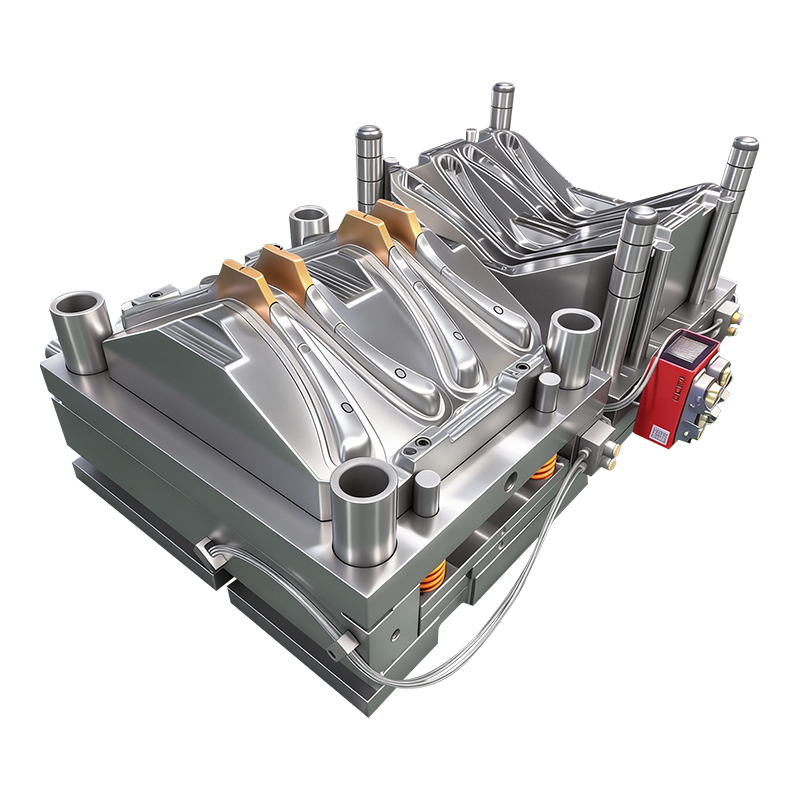

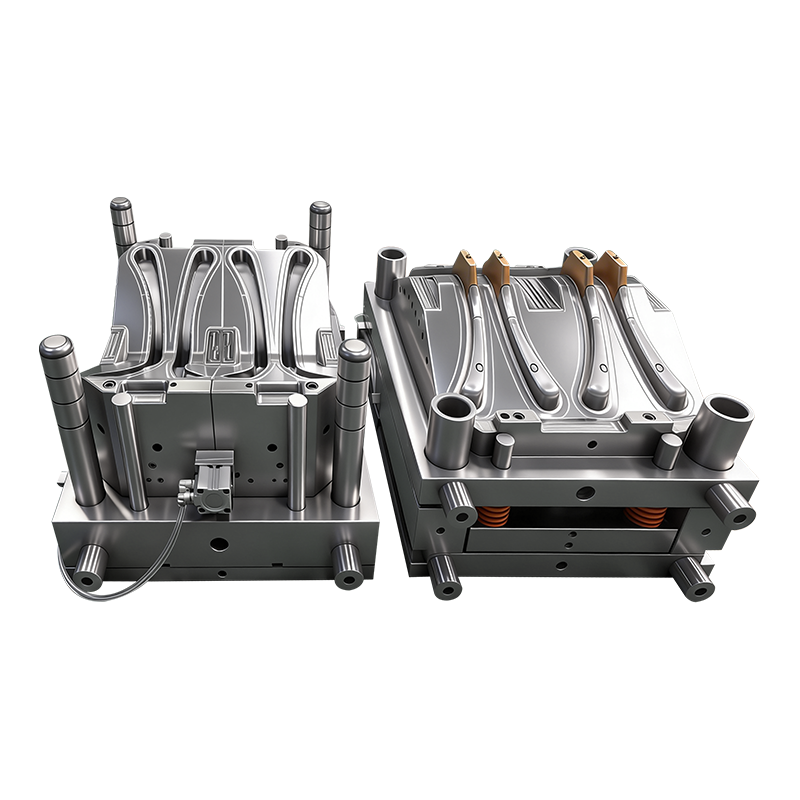

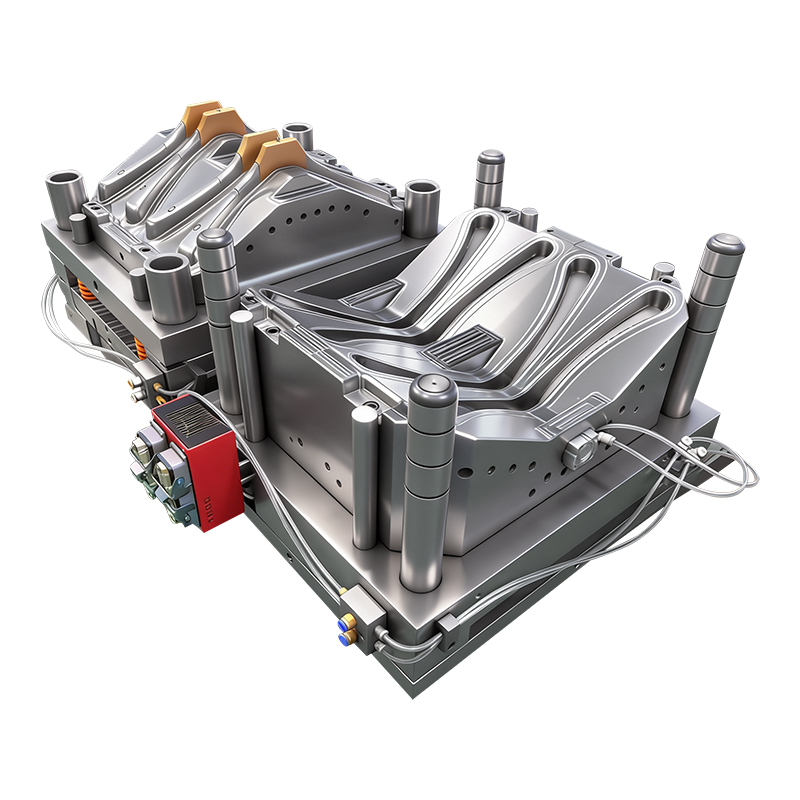

1*4 Cavity Recycled HIPS 2083 HRC48~52 Mold Steel Hot Runner Etching And Polished Finish Clothes Hanger Injection Mold

1*4 Cavity Recycled HIPS 2083 HRC48~52 Mold Steel Hot Runner Etching And Polished Finish Clothes Hanger Injection Mold

This is a high-efficiency 1×4 cavity injection mold specially designed for mass production of plastic clothes hangers using recycled HIPS (High Impact Polystyrene) material. Built with premium 1.2083 mold steel hardened to HRC 48-52, this mold features a hot runner system to ensure consistent melt flow, while the combination of etching and polished finishes delivers both functional texture and a smooth, high-quality appearance on the final hangers.
The mold’s 1×4 cavity layout maximizes production output, making it ideal for large-scale manufacturing of durable, cost-effective hangers for the retail, hotel, and household industries.

Quantity:
Availability:





Inquire Add to Basket

Model:
24019
Brand:
YIXUN mold
Code:
8480419090

Product Description

Product Overview

This is a high-efficiency 1×4 cavity injection mold specially designed for mass production of plastic clothes hangers using recycled HIPS (High Impact Polystyrene) material. Built with premium 1.2083 mold steel hardened to HRC 48-52, this mold features a hot runner system to ensure consistent melt flow, while the combination of etching and polished finishes delivers both functional texture and a smooth, high-quality appearance on the final hangers.

The mold’s 1×4 cavity layout maximizes production output, making it ideal for large-scale manufacturing of durable, cost-effective hangers for the retail, hotel, and household industries.

Mold Specifications

Parameter	Details
Mold Type	1×4 Cavity Plastic Clothes Hanger Injection Mold
Cavity Layout	1×4 symmetrical balanced design
Compatible Material	Recycled HIPS (High Impact Polystyrene), virgin HIPS
Runner System	Hot Runner System for consistent, waste-free production
Mold Steel	1.2083 Hot Work Tool Steel, HRC 48-52 Hardness
Surface Treatment	Etching + Polished Finish on Core & Cavity
Application	Household clothes hangers, retail garment hangers, hotel laundry hangers
Key Features	High production efficiency, low defect rate, durable mold life, eco-friendly material compatibility

Core Features & Advantages

✅ 1×4 Cavity High-Volume Production

The 1×4 cavity layout doubles production efficiency compared to 1×2 designs, allowing four identical clothes hangers to be molded in a single cycle. Symmetrical runner and cooling systems ensure balanced filling and uniform quality across all cavities, supporting large-scale manufacturing with consistent output.

✅ Optimized for Recycled HIPS Material

This mold is engineered to handle recycled HIPS resin, a cost-effective and eco-friendly material choice for hangers. The hot runner system minimizes material waste and ensures uniform melt flow, even with the slight variations common in recycled plastics. It prevents defects like flow marks, warping, and brittleness, ensuring durable, functional hangers.

✅ Hot Runner System for Stable Molding

The integrated hot runner system maintains the plastic melt at a consistent temperature throughout the mold, eliminating cold slug issues and ensuring fast, balanced filling of all four cavities. This reduces cycle times, lowers material waste, and improves the overall stability of the molding process.

✅ 1.2083 Mold Steel (HRC 48-52) for Longevity

Constructed from high-quality 1.2083 mold steel, hardened to HRC 48-52, this mold offers excellent wear resistance, corrosion resistance, and dimensional stability. It withstands the continuous high-volume production of HIPS hangers, ensuring a long mold life with consistent part quality over millions of cycles.

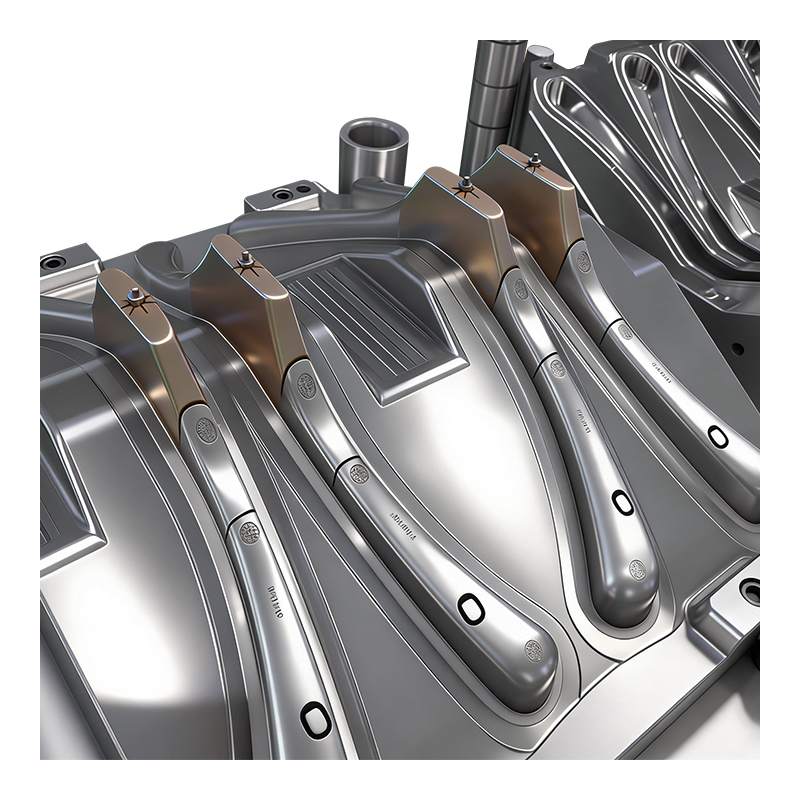

✅ Etching & Polished Surface Finishes

Both core and cavity feature a combination of etching and polishing:

Polished surfaces deliver a smooth, glossy finish on the main body of the hanger, enhancing its appearance and ease of release.
Etched texture is applied to key areas (e.g., shoulder grips) to create anti-slip patterns, preventing clothes from slipping off the hanger. This dual finish meets both aesthetic and functional requirements.

✅ Eco-Friendly & Cost-Effective Solution

Designed specifically for recycled HIPS, this mold supports sustainable manufacturing practices while keeping production costs low. The durable steel construction and efficient hot runner system further reduce long-term operational costs, making it an ideal choice for budget-conscious, eco-friendly hanger production.

Application Scope

This mold is ideal for manufacturing plastic clothes hangers for:

Household laundry and closet organization
Retail clothing stores and boutiques
Hotels, resorts, and hospitality laundry services
Dry cleaning and commercial laundry businesses

Why Choose This Mold?

✅ 1×4 cavity design for high-volume, cost-effective production
✅ Optimized for recycled HIPS material for eco-friendly manufacturing
✅ Hot runner system for stable, waste-free molding
✅ 1.2083 HRC 48-52 steel for long mold life and consistent precision
✅ Dual etching & polished finish for anti-slip texture and smooth appearance
✅ Durable, functional hangers suitable for both household and commercial use

FAQ

Q: Can this mold use both recycled and virgin HIPS?

A: Yes, the mold is compatible with both recycled and virgin HIPS materials. The hot runner system is designed to handle the flow characteristics of recycled resin, ensuring consistent results.

Q: How does the hot runner system benefit production?

A: The hot runner system eliminates the need for cold runners, reducing material waste and cycle times. It also ensures uniform melt flow, minimizing defects and improving part-to-part consistency.

Q: What is the purpose of the etching on the hanger surface?

A: The etched texture creates anti-slip patterns on the hanger’s shoulders, preventing clothes from slipping off during hanging or transport. The polished finish on the rest of the hanger maintains a clean, professional appearance.
