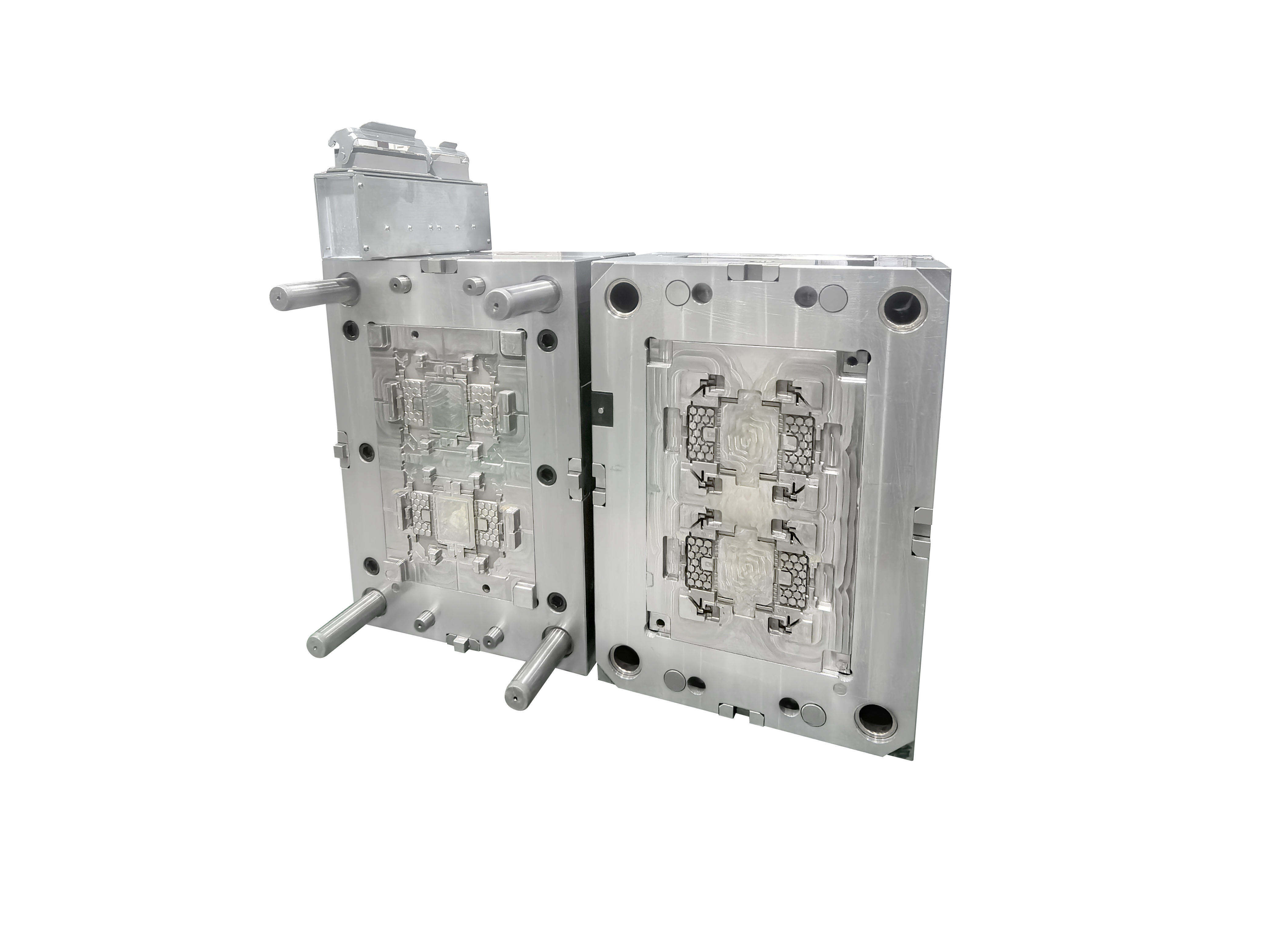

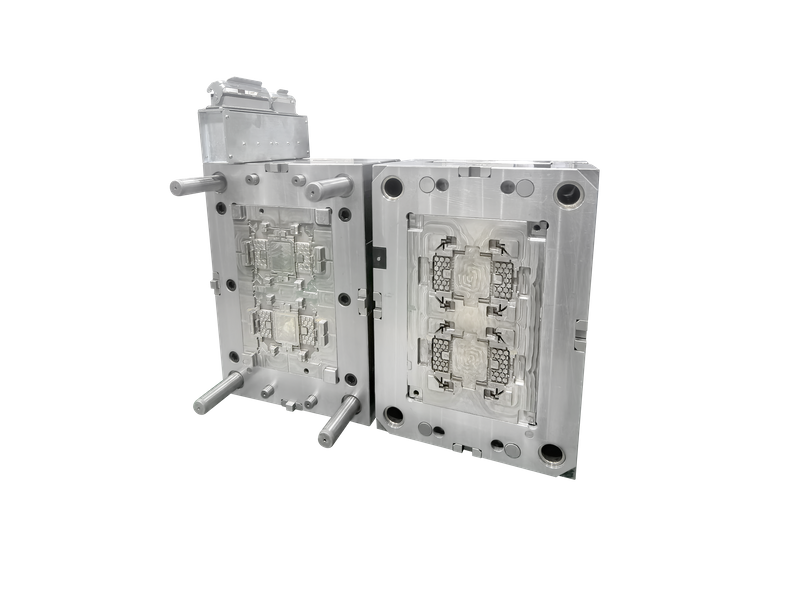

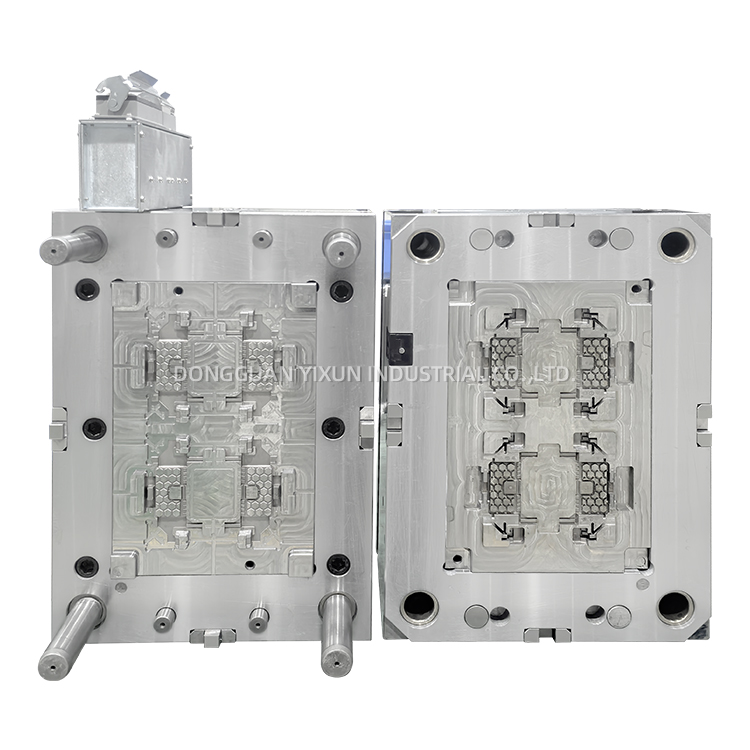

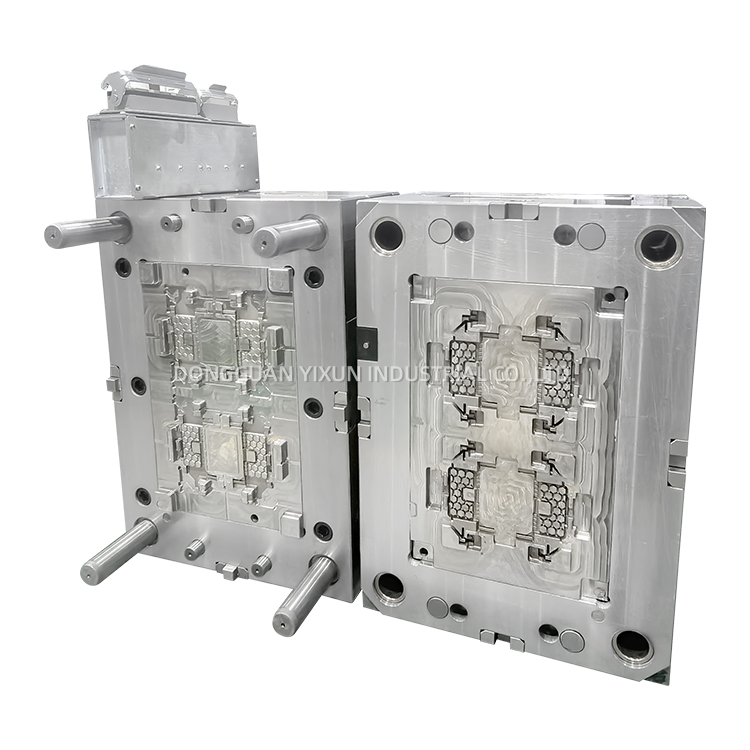

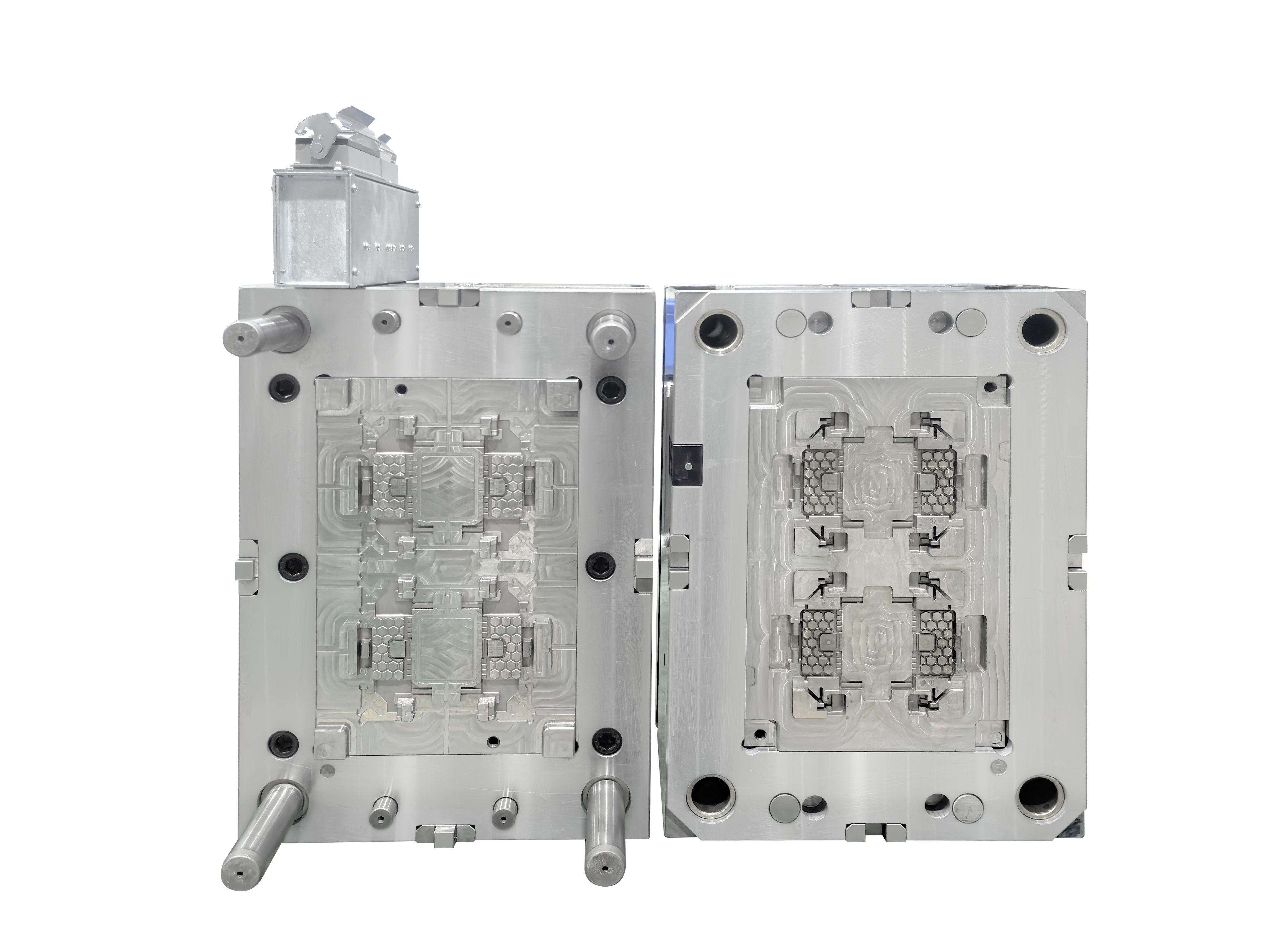

1*4 Cavity POM Material 4-point Hot Runner Injection S7 HRC54-56 Cavity And Core VDI24 Finish Plastic Component Injection Mold

1*4 Cavity POM Material 4-point Hot Runner Injection S7 HRC54-56 Cavity And Core VDI24 Finish Plastic Component Injection Mold

This is a high-precision custom injection mold specially designed for POM (acetal) plastic components. Adopting a 1*4 cavity balanced layout and a 4-point independent hot runner system, the mold delivers highly efficient, stable, and zero-waste injection production. The cavity and core are made of premium S7 mold steel with heat-treated hardness of HRC54-56 and finished with uniform VDI24 EDM texture. Optimized for POM’s high shrinkage and high wear characteristics, this mold ensures excellent dimensional accuracy, consistent surface quality, and long service life for mass production of precision functional plastic parts.


Availability:

Model:
24177
Brand:
YIXUN mold
Code:
8480419090

Product Description

Product Introduction

This is a high-precision custom injection mold specially designed for POM (acetal) plastic components. Adopting a 1*4 cavity balanced layout and a 4-point independent hot runner system, the mold delivers highly efficient, stable, and zero-waste injection production. The cavity and core are made of premium S7 mold steel with heat-treated hardness of HRC54-56 and finished with uniform VDI24 EDM texture. Optimized for POM’s high shrinkage and high wear characteristics, this mold ensures excellent dimensional accuracy, consistent surface quality, and long service life for mass production of precision functional plastic parts.

Mold Technical Specifications

Item	Specification
Mold Cavity	1*4 Cavity (balanced symmetrical layout)
Feeding System	4-point independent hot runner injection
Suitable Material	POM / Acetal (POM-H, POM-C)
Cavity & Core Steel	S7 Tool Steel
Steel Hardness	HRC 54–56 (vacuum heat treatment)
Surface Finish	VDI24 standard uniform texture
Molding Process	Precision hot runner injection molding
Production Feature	No cold runner waste, high efficiency, low defect rate

Core Design & Performance Advantages

Advantage	Detailed Description
High Production Efficiency	1-out-4 cavity symmetrical structure ensures balanced filling in each cavity, greatly improving output and reducing unit production cost.
Hot Runner Material Saving	4-point hot runner design eliminates cold runner waste, shortens molding cycle, and avoids POM material degradation.
Superior Steel Durability	S7 steel with HRC54-56 high hardness provides excellent wear resistance and thermal stability, perfectly resisting long-term friction from POM high-crystallinity molding.
Uniform VDI24 Surface	Standard VDI24 matte texture realizes consistent anti-glare surface, covers minor flow marks, and meets industrial functional part appearance requirements.
POM Professional Optimization	Optimized cooling, venting and filling balance effectively solves POM common defects: shrinkage, voids, warpage and uneven size.

Application Scope

This precision POM injection mold is widely used for producing high-precision functional parts, including automotive mechanical accessories, electronic insulating components, industrial plastic fasteners, household appliance structural parts, and low-friction mechanical moving parts.

Conclusion

Equipped with 1*4 high-efficiency cavity, 4-point hot runner system, high-hardness S7 steel and standard VDI24 finish, this mold is a professional customized solution for stable and high-volume POM part production. It balances high efficiency, low cost, durable service life and perfect surface quality, which is ideal for industrial precision plastic mass production.

Plastic Component Injection Mold 4-point Hot Runner Injection mould S7 HRC54-56 Cavity And Core VDI24 Finish tooling

Yixun is the China first generation mold maker, specialize in mold and moulding, provide one-stop plastic manufacturing service, feature in building medical and healthcare device tooling.
