Product Overview
This is a high-efficiency and high-precision 1*4 cavity injection mold customized for mass production of plastic equipment housings and electrical shell parts. The mold adopts a professional direct gate with horn runner system to realize fast, balanced and stable plastic filling. The whole mold core and cavity are made of premium 1.2083ESR high-purity stainless mold steel, with vacuum heat treatment hardness reaching HRC 48-52. The core surface is finished with standard semi-polish treatment to balance demolding performance and production stability. Designed for long-term continuous injection molding, this tooling delivers stable dimensional accuracy, low defective rate and long service life, which is an ideal solution for mass manufacturing of various electrical equipment shells and protective housings.
Detailed Mold Specifications
| Specification Item | Details |
| Mold Cavity | 1*4 Cavity (4 parts per injection cycle) |
| Gating System | Direct Gate + Optimized Horn Runner |
| Mold Steel Material | 1.2083ESR High Purity Stainless Mold Steel |
| Steel Hardness | HRC 48-52 after vacuum heat treatment |
| Surface Finish | Semi-polish Core, Fine Polished Cavity |
| Molded Products | Equipment Housing, Electrical Shell, Plastic Protective Casing |
| Applicable Material | PC, ABS and other common engineering plastics |
| Mold Lifespan | 500,000+ stable injection shots |

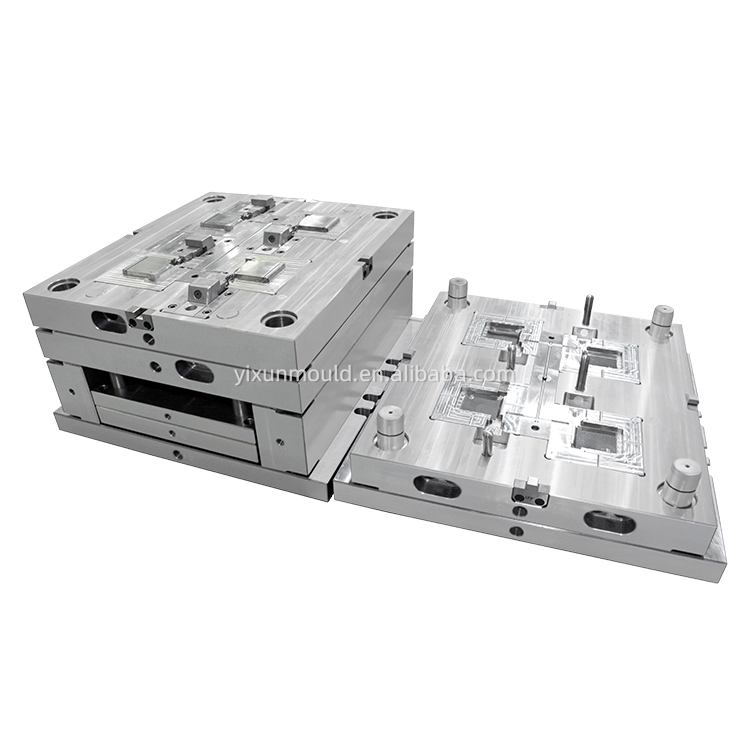

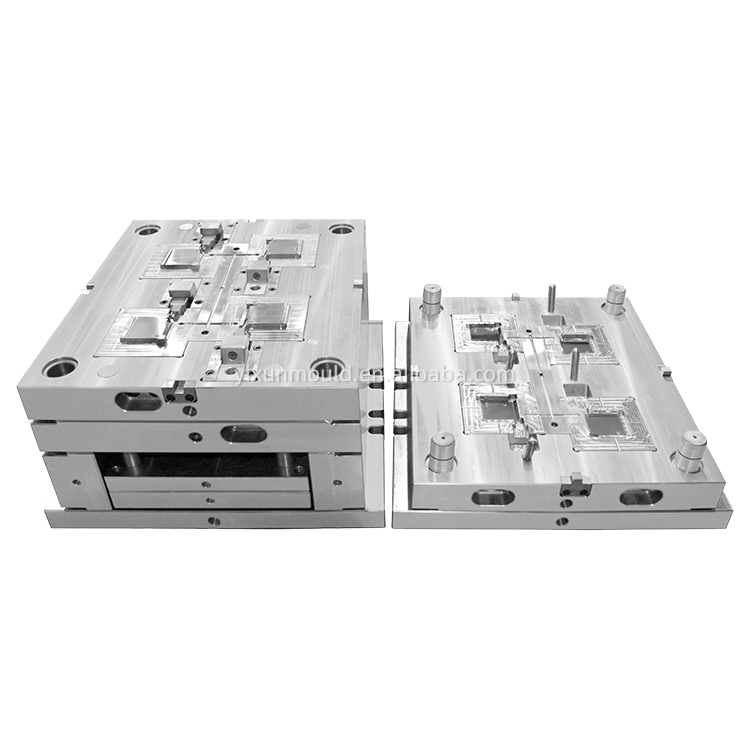

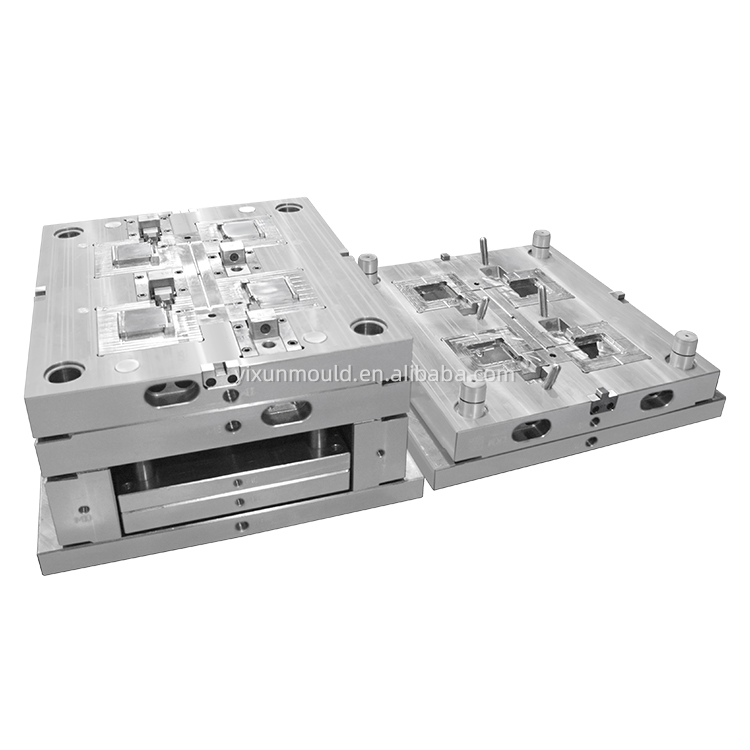

![Housing Equipment Shell Injection Mold]( "Housing Equipment Shell Injection Mold")
Core Design & Technical Advantages
1. 1×4 High-Efficiency Multi-Cavity Structure
Equipped with four balanced cavities, the mold quadruples production output compared with single-cavity molds. The internal runner layout is scientifically balanced to ensure consistent injection pressure, filling speed and cooling effect for each cavity. All finished housing shells feature uniform wall thickness, stable size and consistent appearance, effectively reducing unit production cost and fully meeting large-batch industrial production demands.
2. Direct Gate + Horn Runner System
Combined with direct gate and smooth horn runner structure, this mold solves the common filling problems of thick and thin-wall housing parts. The horn runner reduces melt shear resistance, makes plastic fluid flow smoother, and effectively avoids short shots, shrinkage, flow lines and weld marks. The direct gating design ensures fast feeding and high molding efficiency, suitable for continuous high-speed production of equipment shell parts.
3. Premium 1.2083ESR HRC48-52 Mold Steel
Adopting ESR electroslag remelting refined 1.2083 steel, the material features ultra-pure texture, fewer internal impurities and excellent anti-rust and anti-corrosion performance. After strict vacuum heat treatment, the hardness reaches HRC 48-52, providing outstanding wear resistance, compression resistance and deformation resistance. It can maintain long-term mold precision and surface stability during continuous mass production, greatly reducing mold maintenance frequency.
4. Scientific Semi-Polish Core Design
The core adopts standard semi-polish finish, which is the most suitable surface treatment for equipment shell molds. The moderate matte surface effectively prevents vacuum sticking and ejection deformation during demolding, improves production stability and reduces defective products. Meanwhile, the fine polished cavity ensures neat and smooth outer surface of the housing, perfectly balancing production efficiency and product appearance quality.
Finished Equipment Shell Features
Stable Structural Performance: Uniform wall thickness, strong toughness, not easy to deform or crack
Excellent Surface Quality: No flow marks, no burrs, neat and smooth outer shell
Precision Assembly: Strict dimensional tolerance control for accurate component matching
Durable & Anti-Aging: Good wear resistance and environmental adaptability for long-term equipment protection
High Production Yield: Semi-polish core avoids sticking and effectively reduces defective rate
Application Scenarios
Electrical equipment outer protective housings
Industrial control system plastic shells
Electronic device enclosures and protective casings
Power equipment and distribution box plastic accessories
FAQ
Q1: What are the advantages of direct gate with horn runner?A: The horn runner optimizes melt flow path to reduce flow resistance, while direct gate ensures fast feeding. This combination eliminates surface flow marks and short shots, improving molding speed and product qualification rate for equipment shells.
Q2: Why adopt semi-polish core for housing mold?A: Semi-polish core provides proper surface roughness for smooth demolding, prevents product sticking and deformation during mass production, and greatly stabilizes continuous production efficiency.
Q3: What is the advantage of 1.2083ESR steel?A: 1.2083ESR is high-purity stainless mold steel with excellent anti-rust performance, uniform hardness and good processing stability, supporting long-term high-precision mass production.
Q4: Do you support custom housing molds?A: Yes. We support full customization of shell shape, size, hole position, structure and surface finish according to customer drawings or samples.
