Key Selling Points
High-Efficiency 1*24 Multi-Cavity Design: 24-cavity high-volume layout greatly boosts output, reduces unit production cost, perfectly matches mass production demand for standard medical protective covers and disposable medical plastic parts.
Premium S136 Stainless Steel (HRC48-52): Full core and cavity adopt imported S136 anti-rust mold steel with high hardness after heat treatment. Features excellent corrosion resistance, wear resistance and oxidation resistance, fully adapting to medical clean production and long-cycle molding.
Dual Surface Craft: Mirror Core + Stoned Cavity Finish: Adopts differentiated surface treatment, mirror polished core ensures ultra-smooth inner product surface without burrs; stoned cavity provides uniform matte outer texture, meeting medical product’s dual requirements of hygiene and appearance.
Precision Pin Point Horn Gate System: Optimized horn-type pin-point gate realizes automatic shear separation, leaving nearly invisible tiny gate marks. Ensures balanced melt filling for 24 cavities, no overflow, no flash, suitable for thin-wall LDPE medical covers.
Professional LDPE Material Optimization: Mold flow and cooling system specially tuned for LDPE’s low hardness and high fluidity characteristics, effectively solving warpage, shrinkage and uneven wall thickness problems, delivering stable and clean medical cover parts.
Medical-Grade Clean & Stable Molding: Rust-proof steel + precise exhaust structure eliminates residual dirt and bacterial growth risks. Mold runs stably with low defective rate, fully compliant with medical device production hygiene standards.
Product Overview
This is a high-output 1*24-cavity custom injection mold specially designed for mass production of LDPE medical protective covers. Targeting the characteristics of thin-wall, lightweight and high hygiene requirements of medical cover parts, the mold adopts high-end S136 stainless steel with HRC48-52 high hardness heat treatment, achieving long service life and anti-corrosion performance suitable for medical clean workshops.
Equipped with a professional pin point horn gate feeding system, the mold realizes balanced and rapid filling of 24 cavities at one time. The unique dual-surface process of mirror polished core + stoned cavity finish enables the finished medical covers to have smooth inner walls (easy cleaning, no residue) and delicate matte outer surfaces (anti-slip, high-grade appearance). All mold structures are optimized for LDPE material flow and shrinkage, ensuring consistent dimensional accuracy, no burrs, no warpage, and 100% qualified appearance for each batch of medical covers. It is the preferred high-efficiency mold solution for disposable medical protective accessories.
Detailed Specifications
| Item | Specification |
| Mold Application | Custom Medical Plastic Cover, Disposable Medical Protective Parts |
| Cavity Configuration | 1*24 Cavity High-Volume Production |
| Applicable Material | LDPE (Low-Density Polyethylene, Medical Grade) |
| Mold Steel (Core & Cavity) | S136 Stainless Steel |
| Steel Hardness | HRC 48-52 (Heat Treated) |
| Gate Type | Pin Point Horn Gate (Automatic Breaking & Minimal Mark) |
| Surface Treatment | Core: Mirror Polished | Cavity: Stoned Texture Finish |
| Mold Life | 1,000,000+ Shots (Stable Long-Term Production) |
| Production Feature | High output, auto gate cutting, zero burr, clean & hygienic |
| Suitable Environment | Medical Cleanroom Injection Molding |
| Processing Tolerance | ±0.01mm High Precision Control |
| Lead Time | 35-45 Working Days |
| Quality Standard | ISO13485 Medical Standard, ISO9001 Certified |

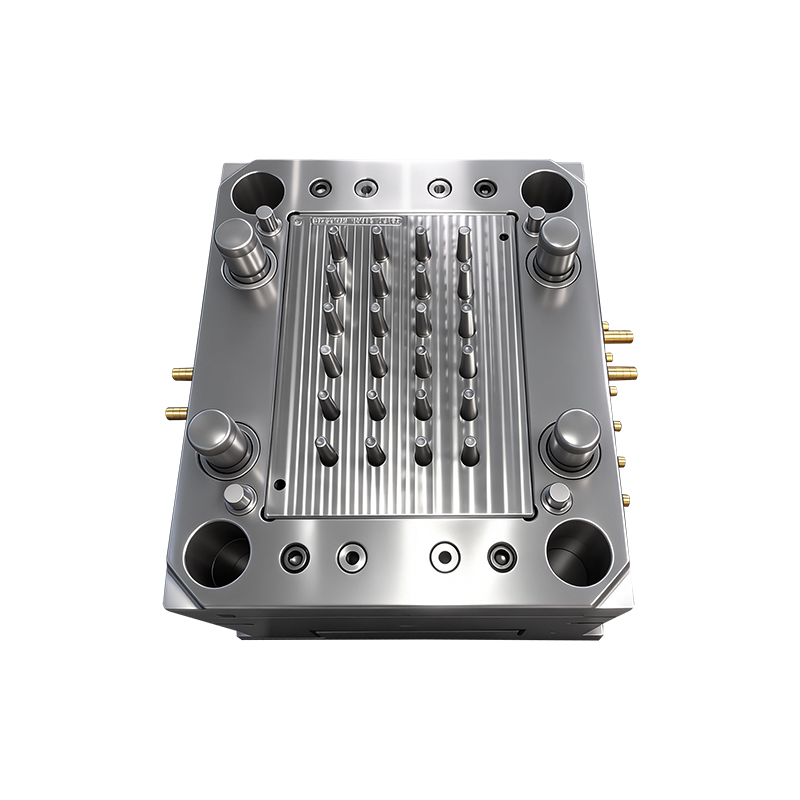

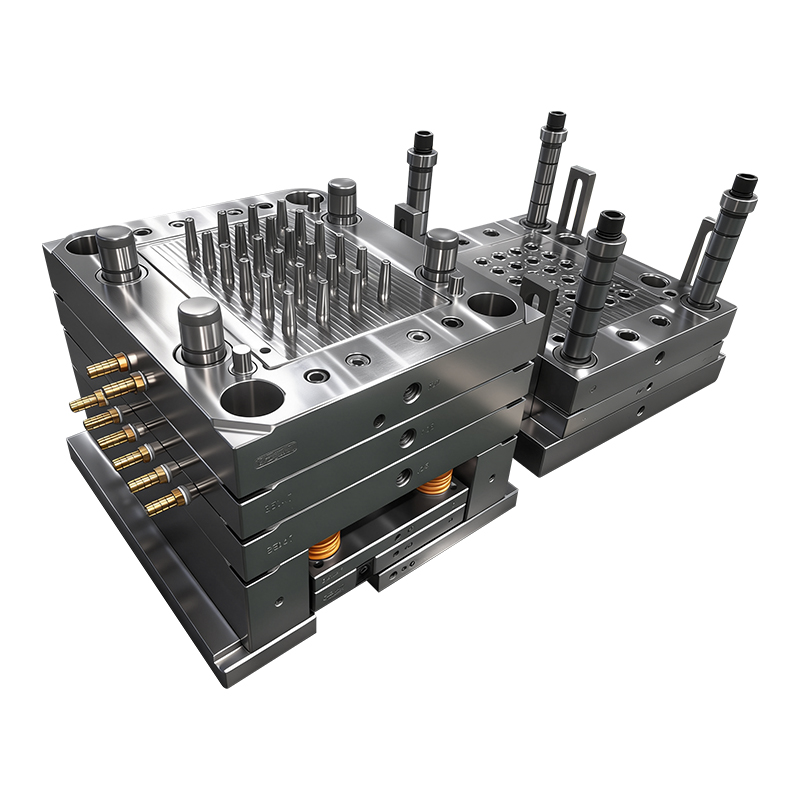

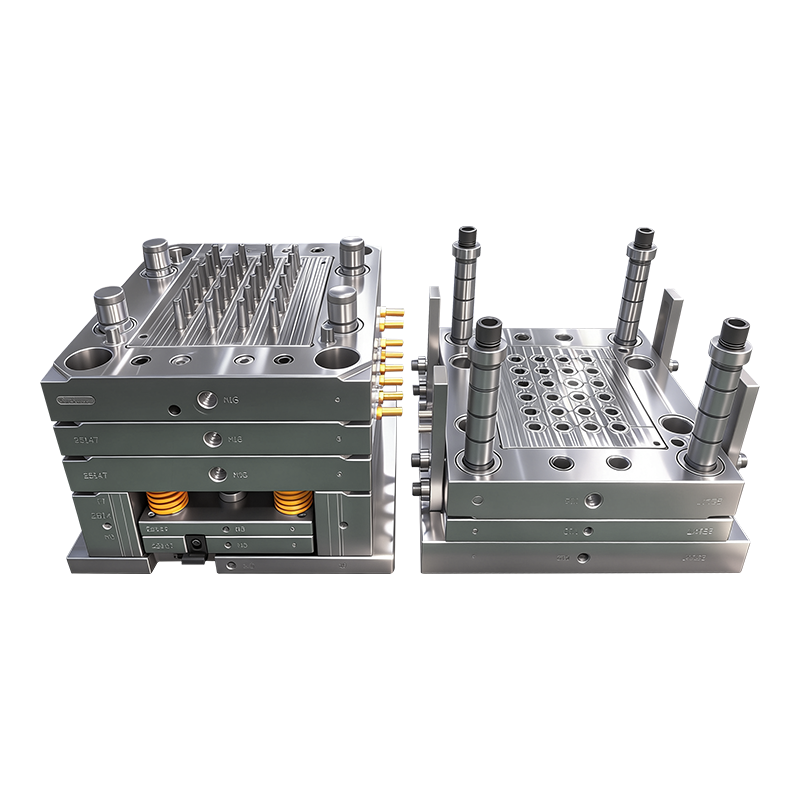

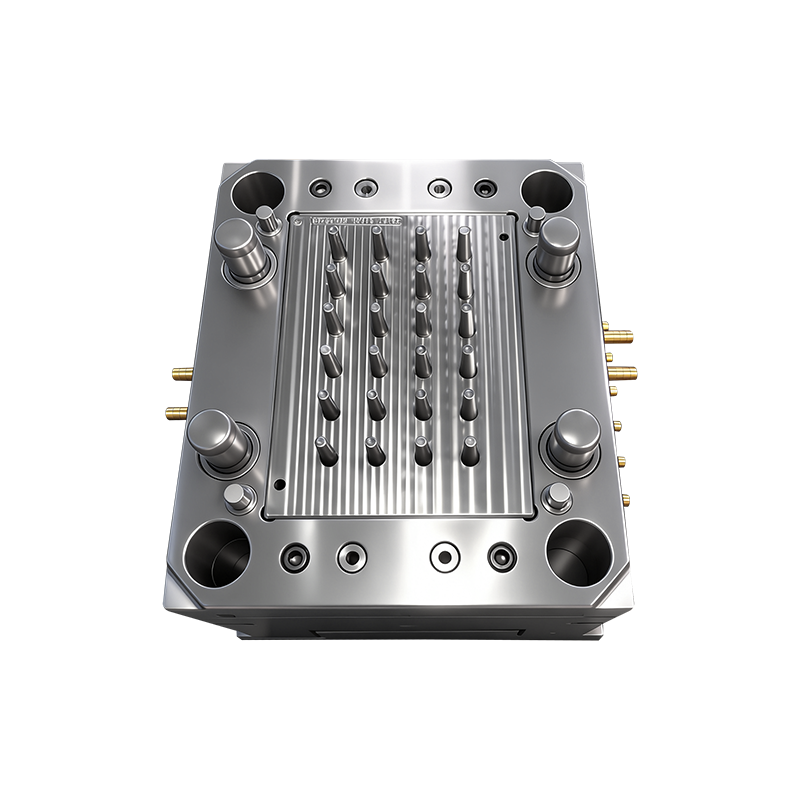

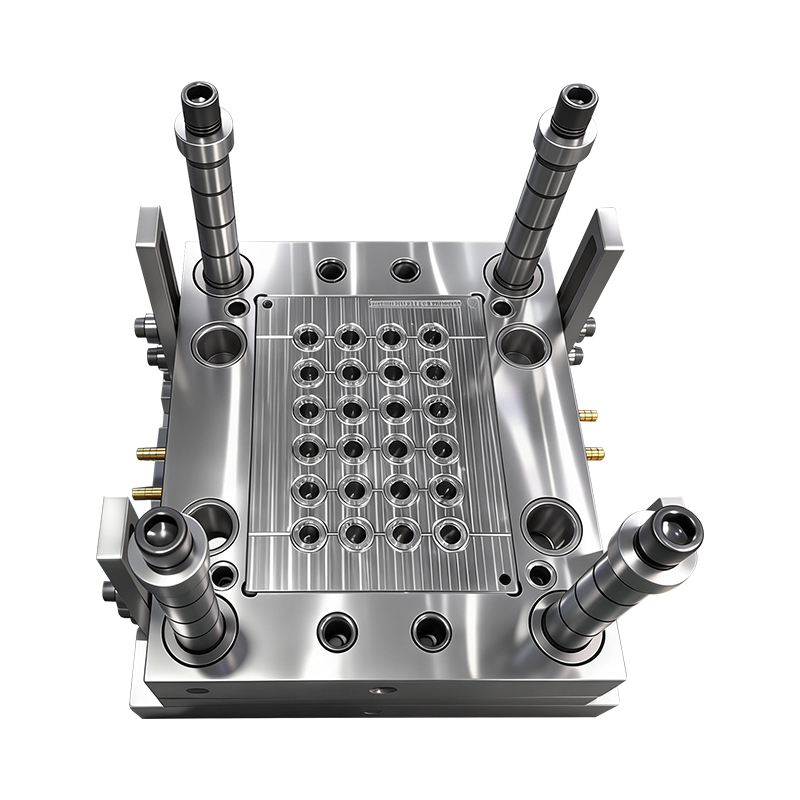

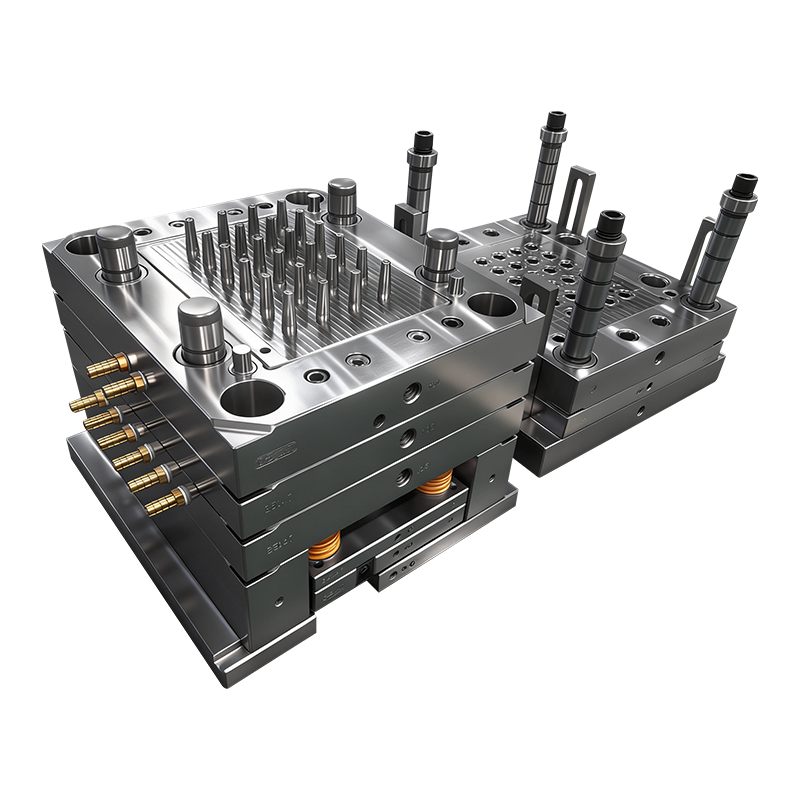

![Custom Medical Cover Mould]( "Custom Medical Cover Mould")
Core Technical Advantages
1. S136 High Hardness Stainless Steel, Medical Anti-Corrosion Grade
Different from ordinary mold steel, S136 stainless steel with HRC48-52 high hardness features superior rust resistance and chemical stability. It can effectively resist moisture, disinfectant vapor and long-term cleanroom environment erosion, avoiding mold rust, spots and surface peeling. It maintains stable precision and clean cavity surface during millions of injection cycles, fully meeting medical hygiene production standards.
2. Pin Point Horn Gate for Automated & Flawless Production
The customized horn-type pin-point gate adopts micro-hole feeding design. It realizes automatic gate separation during mold opening without manual trimming, supporting fully automated mass production. The tiny gate residual mark is almost invisible on the product surface. Meanwhile, the horn transitional structure optimizes LDPE melt flow, avoids jetting and material stagnation, and ensures consistent filling balance for all 24 cavities.
3. Dual Surface Craft Meets Medical Dual Standards
The core adopts high-precision mirror polishing, making the inner surface of medical cover ultra-smooth without dead corners, preventing dust and bacteria adhesion, convenient for disinfection and cleaning. The cavity adopts fine stoned finish, creating a uniform matte outer surface that improves texture and scratch resistance. This dual design perfectly balances medical hygiene safety and product appearance quality.
4. 24-Cavity Balanced System for Ultra-High Yield
The mold adopts professional runner balance design for 24 cavities, ensuring consistent injection pressure, flow rate and cooling effect of each cavity. No uneven filling or different product weight occurs. It greatly improves daily output, reduces average labor and machine cost per piece, and creates high profit margins for mass medical part production.
5. Exclusive Optimization for LDPE Thin-Wall Medical Parts
LDPE features high toughness and large shrinkage rate. We optimize cooling channel distribution and venting structure according to LDPE material characteristics, effectively controlling thin-wall warpage, sink marks and dimensional deviation. The produced medical covers have uniform wall thickness, good flexibility and high fitting accuracy, suitable for secondary sterilization and medical assembly.
Applications
This high-efficiency 24-cavity medical mold is widely used for producing various LDPE medical protective cover parts:
Disposable medical instrument protective covers
Syringe & needle safety protective caps
Medical catheter and tube end dust-proof covers
Endoscope and precision medical tool protective sleeves
Hospital disposable hygiene plastic cover accessories
Why Choose Us
Professional Medical Mold Manufacturer: Rich experience in medical clean mold design and manufacturing, familiar with medical industry hygiene and precision standards
Strict S136 Steel Quality Control: Provide steel material certificate, heat treatment report and mold inspection report
High-Yield Multi-Cavity Customization: Support 16/24/32 multi-cavity efficient mold customization
Full Process Service: DFM analysis, mold design, precision machining, mold trial, sample confirmation and after-sales maintenance
Global Standard Compliance: Products comply with medical production specifications, supporting customer product certification and market access
FAQ
Q1: Why choose S136 steel for medical cover molds?
A1: S136 stainless steel has excellent anti-rust and anti-corrosion performance, which can keep the cavity clean in long-term medical cleanroom production, avoid mold contamination, and ensure hygienic and safe medical parts.
Q2: What are the advantages of pin point horn gate?
A2: It supports automatic gate breaking without manual trimming, leaves minimal gate marks, ensures beautiful product appearance, and achieves balanced filling for 24 cavities, ideal for high-volume automated production.
Q3: Is the dual surface finish customizable?
A3: Yes. We can adjust mirror polish grade, stoned finish roughness or change to VDI/SPI texture according to your personalized appearance requirements.
Q4: Can this mold support long-term mass production?
A4: Absolutely. With S136 HRC48-52 high hardness steel and precise mold structure, the mold life reaches over 1 million shots with stable performance and low failure rate.
