| Parameter | Specification |
|---|---|

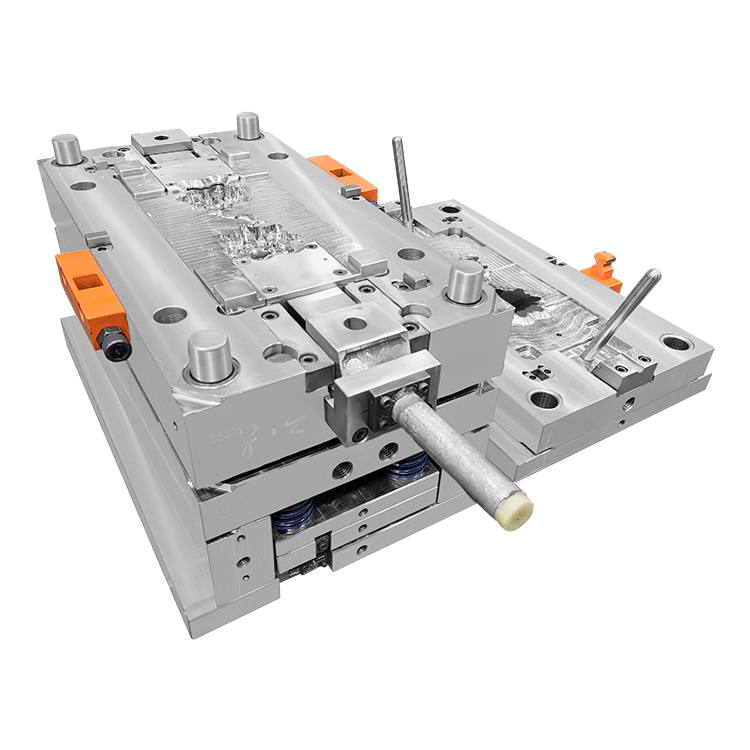

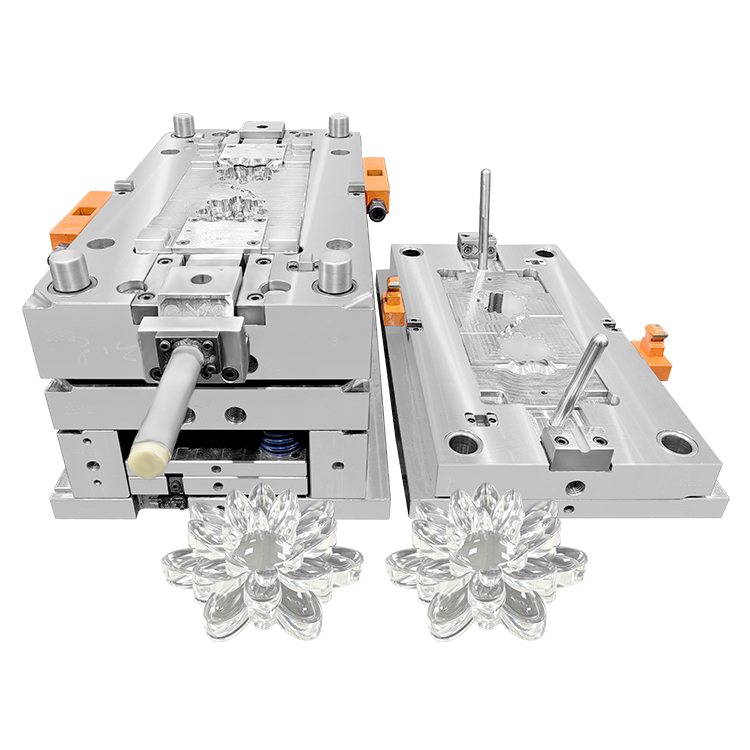

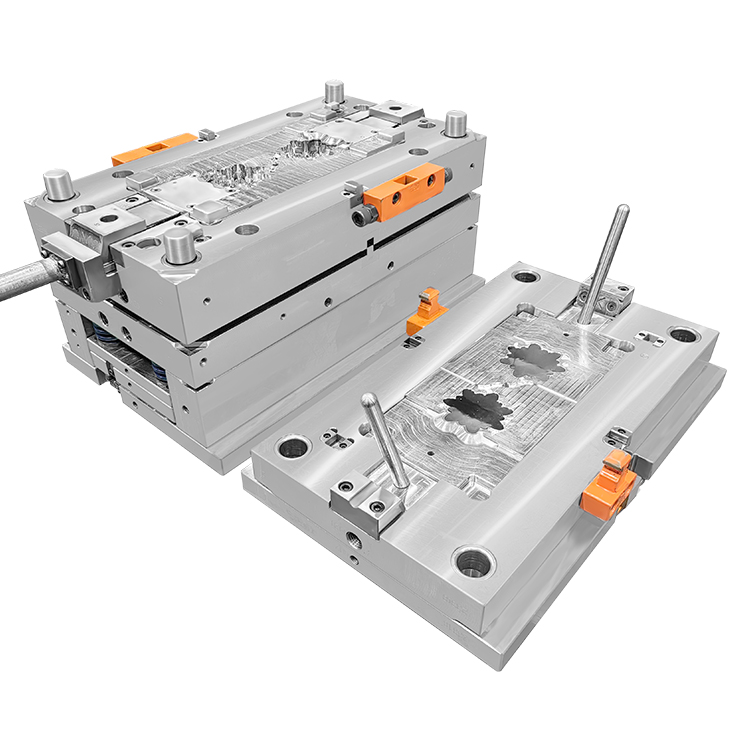

| Mold Configuration | 1×2 balanced cavity design |
| Runner System | Large side gate injection, optimized for transparent PMMA flow |
| Molding Material | PMMA (Acrylic), UV-resistant grade |
| Cavity & Core Steel | S136R corrosion-resistant stainless steel |
| Hardness | HRC 48–52 (vacuum heat-treated) |
| Surface Finish | Full front & back mold high-gloss polishing for ultra-transparent optical clarity |

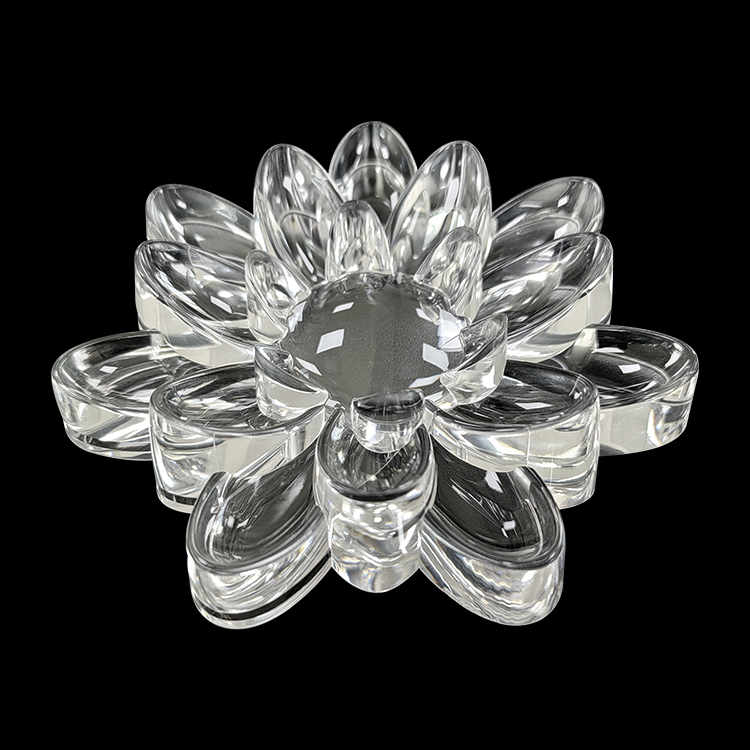

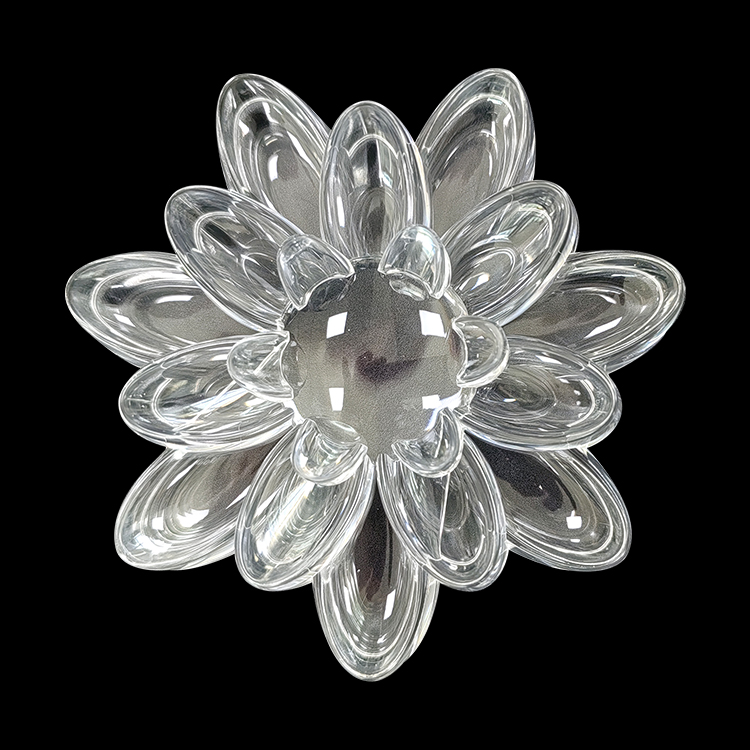

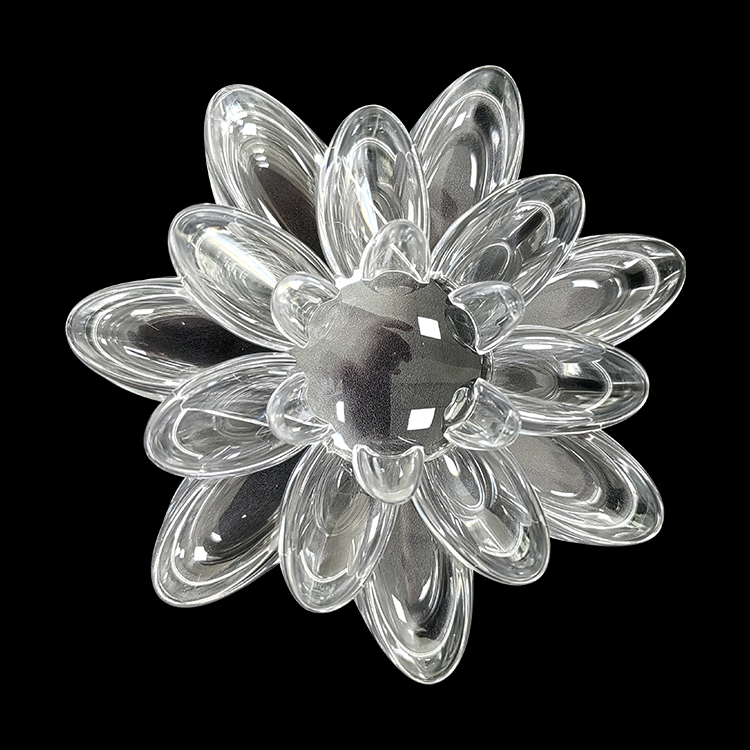

| Application | High-transparent lotus decoration lenses, light diffusers, and decorative elements |
Eliminates flow imbalance, ensuring consistent part weight, dimensions, and optical clarity.
Doubles output per cycle, maximizing production efficiency while maintaining strict quality control.
Prevents warpage or shrinkage differences between the two cavities, critical for matching decorative elements.
Reduces shear stress during injection, preventing material degradation, yellowing, or haze that would ruin optical clarity.
Ensures complete, uniform filling of the intricate lotus petal geometry, eliminating short shots or air traps in fine details.
The gate location leaves minimal visible marks on the finished part, preserving the decorative lens’s aesthetic appeal.
Superior corrosion resistance: Prevents pitting or staining from moisture or additives, ensuring long-term mold stability and consistent part clarity.
Exceptional polishability: Accepts ultra-fine mirror polishing, creating defect-free, light-transmitting surfaces required for crystal-clear PMMA lenses.
High hardness (HRC48–52): Delivers excellent wear resistance, even with repetitive high-temperature PMMA injection cycles, extending mold service life.
Zero surface defects: Eliminates scratches, pits, or texture that would scatter light and reduce the lens’s decorative effect.
Uniform light transmission: Ensures consistent clarity across the entire lotus lens surface, critical for light diffusion and visual appeal.
Smooth demolding: The polished surface reduces ejection friction, preventing sticking or marring of the delicate petal features.
The mold design minimizes residual stress, preventing warpage or cracking in outdoor-exposed parts.
Optimized cooling and venting eliminate common PMMA defects like silver streaks, burn marks, or sink marks.
The final parts maintain their transparency and color stability under prolonged UV exposure, making them suitable for both indoor and outdoor decorative applications.
Indoor and outdoor lighting fixtures (e.g., chandeliers, garden lights)
Home decor and art installations
Wedding and event centerpieces
Aquarium and water feature accents
