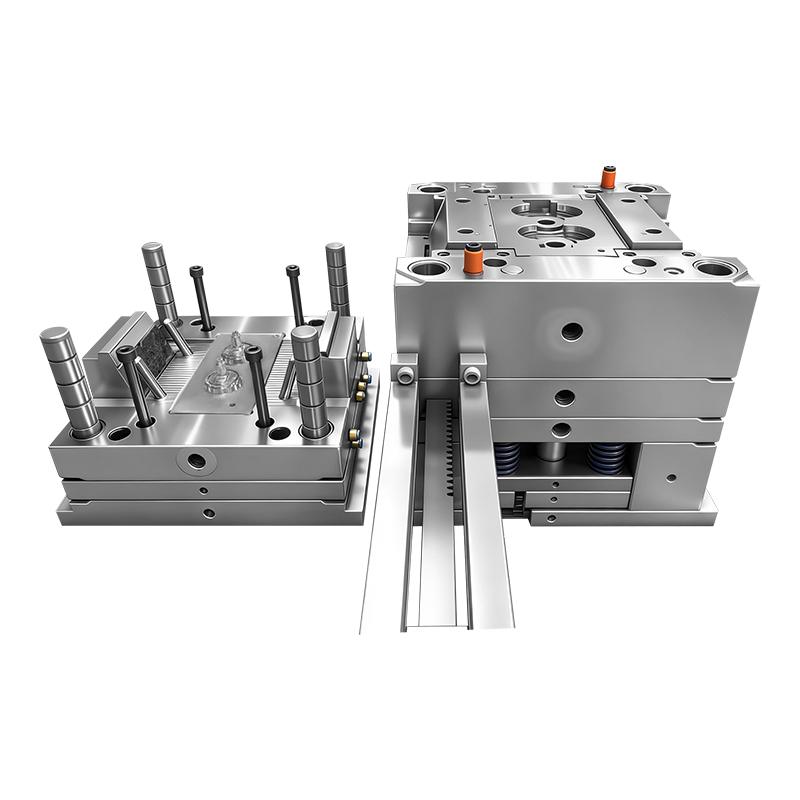

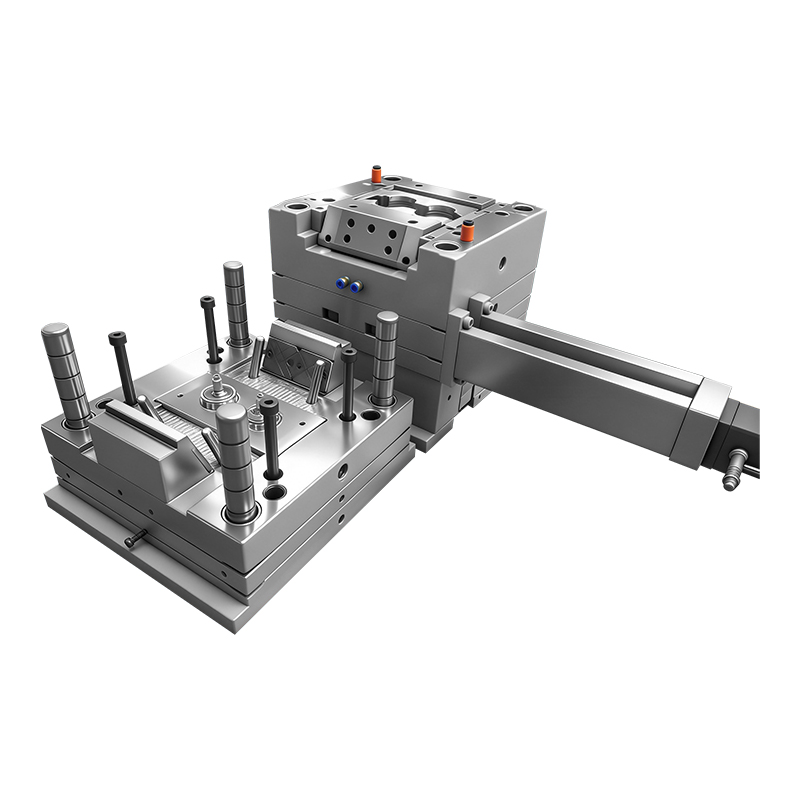

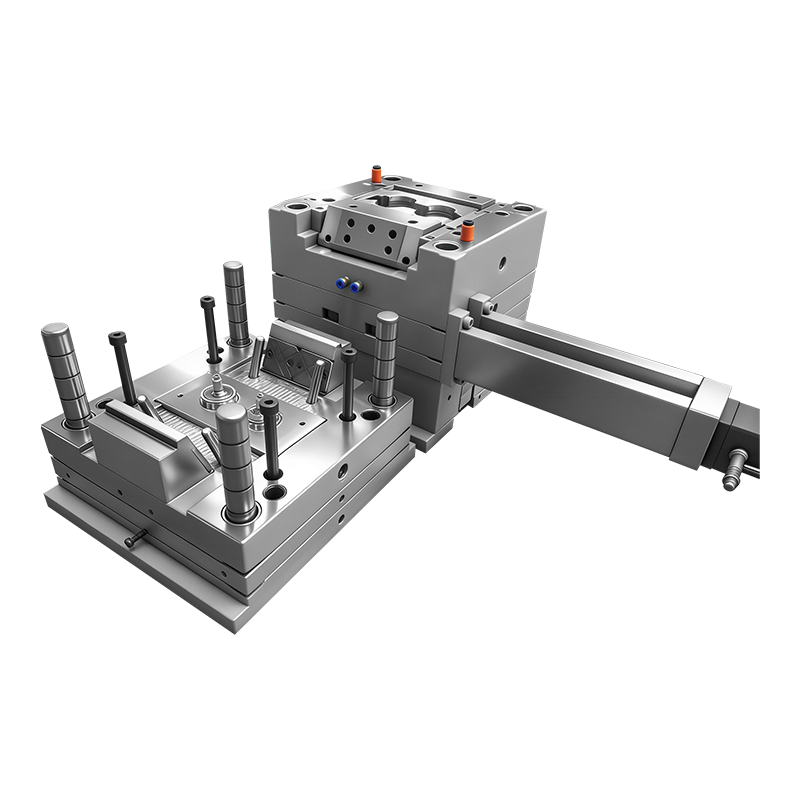

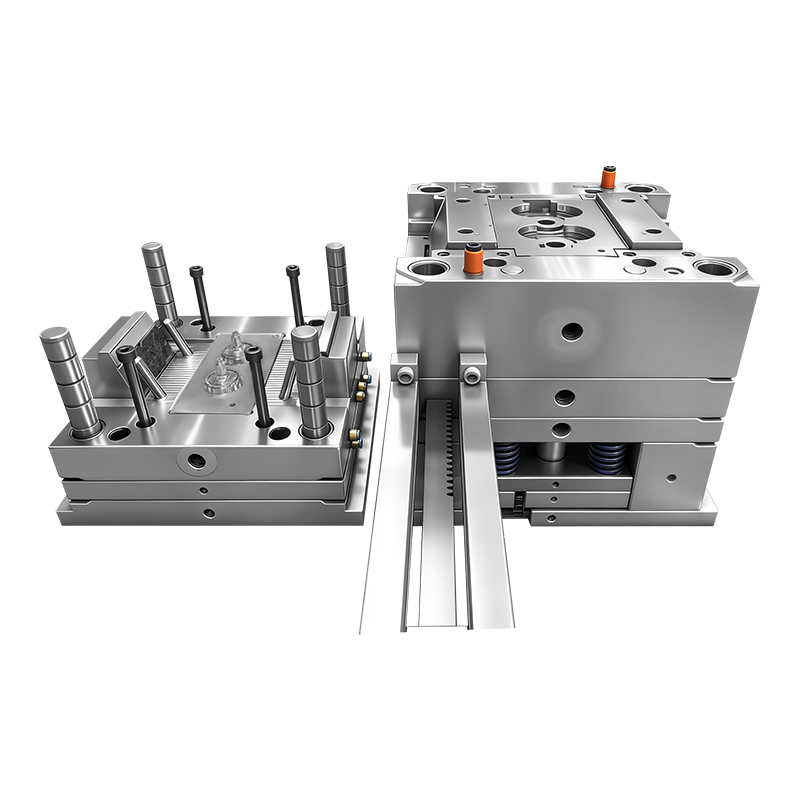

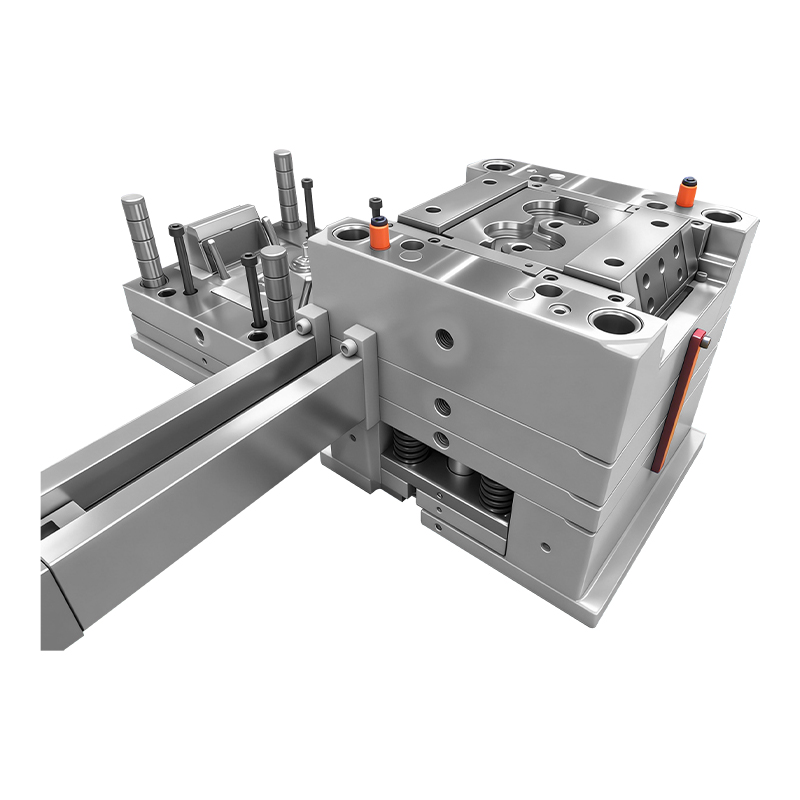

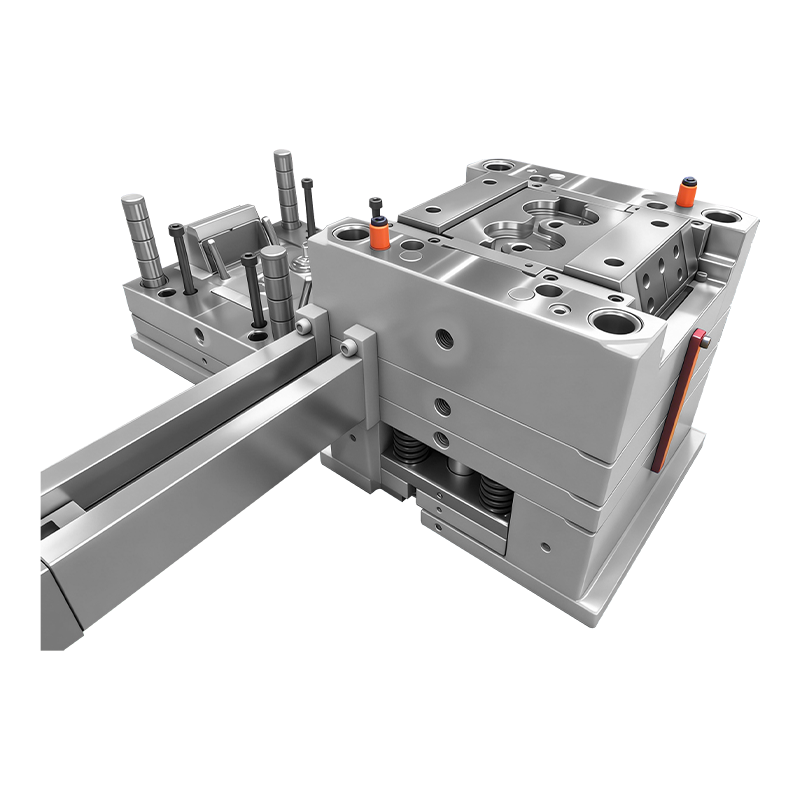

1*2 High Quality Plastic Mold Pin Point Gate Runner ABS+ UV Protection 2344 HRC48-52 Steel Plastic Housing Shell Injection Mould

1*2 High Quality Plastic Mold Pin Point Gate Runner ABS+ UV Protection 2344 HRC48-52 Steel Plastic Housing Shell Injection Mould

This high-quality injection mold is purpose-built for manufacturing ABS+UV protection plastic housing shells, widely used in outdoor equipment, electronic enclosures, and light-exposed consumer products. Featuring a practical 1*2 cavity layout, the mold uses a pin-point gate runner system to ensure clean, efficient molding with minimal post-processing.

Quantity:
Availability:





Inquire Add to Basket

Model:
24011
Brand:
YIXUN mold
Code:
8480419090

Product Description

Key Selling Points

✅ 1*2 Cavity Balanced Production: Dual-cavity design balances efficiency and cost, delivering two identical housing shells per cycle with consistent quality.

✅ ABS+UV Protection Material Optimization: Mold engineered for UV-stabilized ABS resin, ensuring weather resistance, impact strength, and long-term color stability for outdoor/light-exposed applications.

✅ Premium 2344 HRC48-52 Mold Steel: High-performance 2344 hot-work steel with uniform hardness, offering exceptional wear resistance, thermal stability, and long mold life.

✅ Pin Point Gate Runner System: Precision pin-point gate ensures automatic clean separation, minimal gate marks, and balanced melt flow for defect-free housing shells.

✅ High-Quality Surface & Dimensional Consistency: Mold designed for smooth, burr-free surfaces and tight tolerances, ideal for housing shells requiring assembly precision and visual appeal.

✅ Durable Outdoor-Ready Molding: UV-resistant ABS formulation paired with robust mold construction, producing parts that resist fading, cracking, and degradation in harsh environments.

Product Overview

This high-quality injection mold is purpose-built for manufacturing ABS+UV protection plastic housing shells, widely used in outdoor equipment, electronic enclosures, and light-exposed consumer products. Featuring a practical 1*2 cavity layout, the mold uses a pin-point gate runner system to ensure clean, efficient molding with minimal post-processing.

Constructed from premium 2344 hot-work steel heat-treated to HRC48-52, the mold offers outstanding durability and thermal stability, even under high-volume production conditions. Optimized for UV-stabilized ABS resin, it delivers housing shells with excellent impact resistance, dimensional accuracy, and long-term color retention. Whether for small-batch production or scalable manufacturing, this mold provides reliable, high-quality results for outdoor-ready plastic housing components.

Detailed Specifications

Specification	Details
Mold Application	Plastic Housing Shell / Enclosure Parts (Outdoor/UV-Exposed Use)
Cavity Configuration	1*2 Cavity (Dual-Cavity Balanced Production)
Molded Material	ABS + UV Protection (UV-Stabilized ABS Resin)
Mold Steel	2344 Hot-Work Tool Steel
Steel Hardness	HRC 48-52 (Heat-Treated)
Runner & Gate System	Pin Point Gate Runner System (Automatic Shearing, Minimal Marks)
Mold Life Expectancy	1,000,000+ Cycles (Under Standard Production & Maintenance)
Surface Quality	Smooth, Burr-Free, Assembly-Ready Finish
Part Features	UV-resistant, impact-resistant, color-stable, weatherproof housing shell
Applications	Outdoor electronic enclosures, equipment housings, light-exposed consumer product shells
Production Lead Time	35-45 Working Days
Quality Control	100% Mold Trial, Dimensional & Appearance Inspection, Material Compatibility Test
Certification	ISO 9001 Compliant Manufacturing

Core Advantages

1. 2344 HRC48-52 Steel: Built for High-Volume Durability

2344 is a premium hot-work tool steel ideal for demanding injection molding applications:

Exceptional Wear & Thermal Fatigue Resistance: Resists deformation and cracking under repeated high-temperature injection cycles, extending mold life significantly.
High Hardness Uniformity: Consistent HRC48-52 hardness ensures long-term dimensional stability, even with abrasive or reinforced resins.
Superior Polishing & Texturing Performance: Supports fine surface finishes, ensuring housing shells maintain a smooth, defect-free appearance through millions of shots.

2. Pin Point Gate System: Clean, Efficient Molding

The precision pin-point gate runner system is tailored for housing shell production:

Automatic Gate Separation: Eliminates the need for manual trimming, reducing labor costs and improving production efficiency.
Minimal Visible Marks: Tiny gate residuals are nearly invisible on the housing shell surface, preserving the part’s aesthetic quality.
Balanced Melt Flow: Ensures consistent filling across both cavities, minimizing warpage, sink marks, and weld lines common in housing shell parts.

3. Optimized for ABS+UV Resin

The mold is engineered to handle the unique properties of UV-stabilized ABS:

Stabilized Shrinkage Control: Compensates for the slightly modified shrinkage rate of UV-added ABS, ensuring housing shells meet tight dimensional tolerances.
Reduced Degradation Risk: Mold temperature and cooling systems are tuned to prevent thermal degradation of UV additives, preserving the part’s weather resistance.
Impact & Surface Quality: Optimized venting and gating eliminate trapped air and burn marks, delivering smooth, high-gloss or matte surfaces as required.

4. 1*2 Cavity Design: Flexibility Meets Efficiency

The dual-cavity layout offers the perfect balance for housing shell production:

Cost-Effective Scalability: Ideal for small to medium production runs, avoiding the high upfront cost of multi-cavity molds while doubling output.
Consistent Part Quality: Both cavities are precision-machined to identical specifications, ensuring every housing shell meets the same quality standards.
Flexible Production: Supports both prototype testing and full-scale production, making it easy to validate designs before committing to mass manufacturing.

Applications

This mold produces UV-resistant ABS housing shells suitable for:

Outdoor electronic equipment enclosures
Garden and patio furniture components
Automotive exterior accessory housings
Industrial equipment control panels and covers
Consumer products exposed to sunlight or harsh weather conditions

Why Choose Us as Your Direct Mold Maker?

✅ Specialized in UV-Resistant Material Molding: Extensive experience designing molds for weatherproof ABS and UV-stabilized resins, ensuring parts perform in harsh environments.

✅ Premium Steel Quality Control: Full material certification and heat treatment verification for 2344 steel, guaranteeing mold durability.

✅ Custom Surface & Assembly Solutions: Support for custom finishes (gloss, matte, textured) and precise tolerances for snap-fit, screw-mount, or adhesive assembly.

✅ In-House Mold Trials: Comprehensive testing with sample parts to verify fit, finish, and UV resin compatibility before mass production.

✅ Global After-Sales Support: Technical guidance for mold maintenance, process optimization, and troubleshooting to maximize mold life and part quality.

FAQ

Q1: Why use 2344 steel for this housing shell mold?

A1: 2344 steel offers exceptional wear resistance and thermal stability, making it ideal for high-volume production of UV-stabilized ABS parts. It maintains dimensional accuracy and surface quality far longer than standard steels, reducing maintenance costs.

Q2: What are the benefits of a pin-point gate for housing shells?

A2: Pin-point gates leave nearly invisible marks on the part surface, eliminating the need for post-processing. They also enable automatic gate shearing, improving production efficiency and reducing labor costs.

Q3: Can the mold be modified for different housing shell designs?

A3: Yes, we offer full customization, including adjustments to cavity dimensions, surface finishes, and gate placement to match your specific housing shell design requirements.

Q4: How does the mold handle UV-stabilized ABS resin?

A4: The mold’s temperature control and venting systems are optimized to prevent thermal degradation of UV additives, ensuring the final parts retain their weather resistance and color stability over time.
