| Item | Specification |
|---|---|

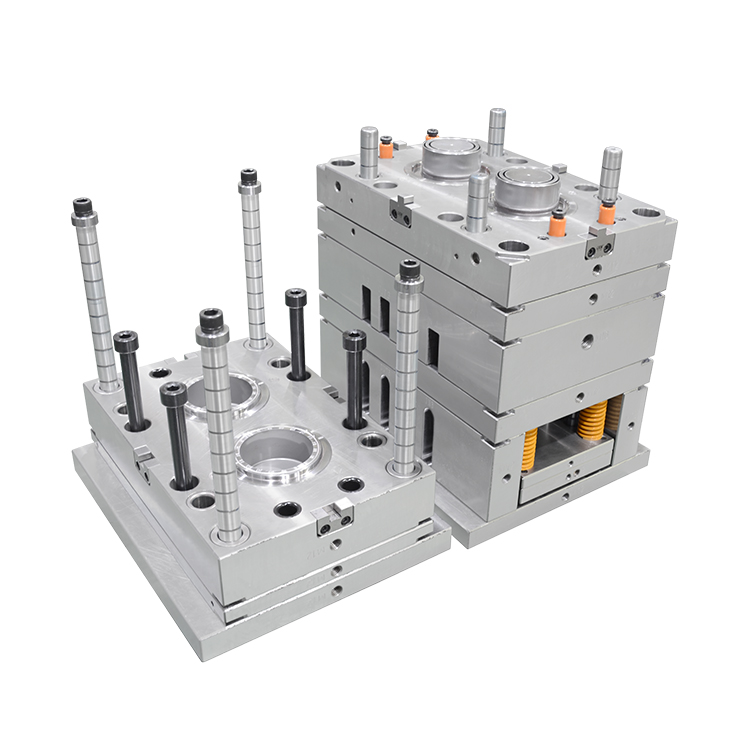

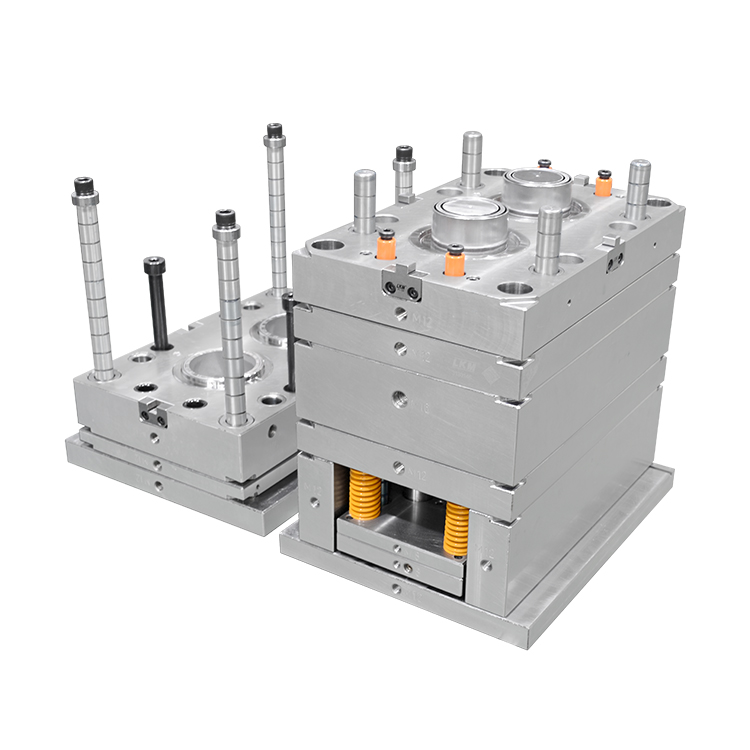

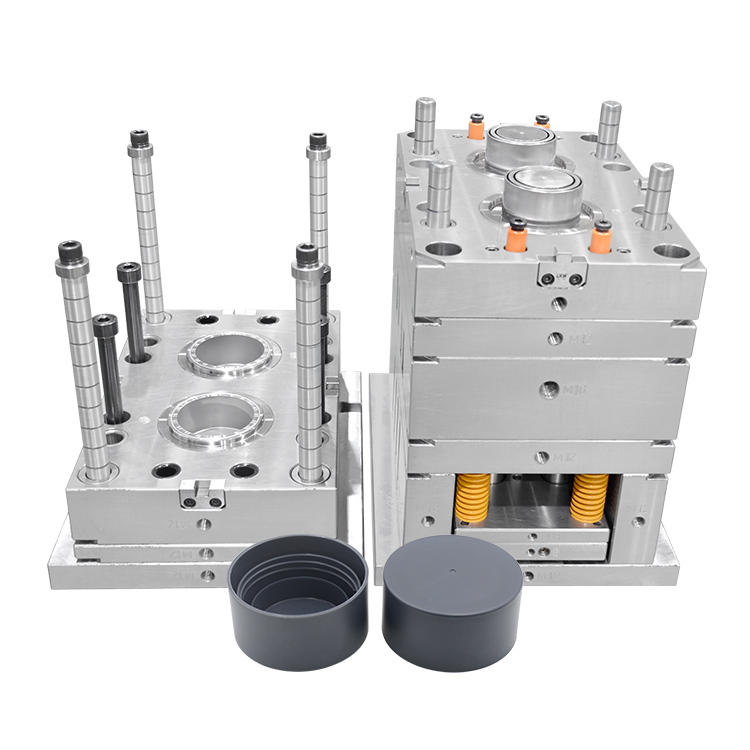

| Mold Configuration | 1×2 balanced cavity design |
| Runner System | Pin-point gate injection |
| Molding Material | PP (Polypropylene) |
| Cavity & Core Steel | 1.2344 (H13) hot work tool steel |
| Steel Hardness | HRC 48–52 (vacuum heat-treated) |
| Standard Compliance | ISO standard manufacturing |

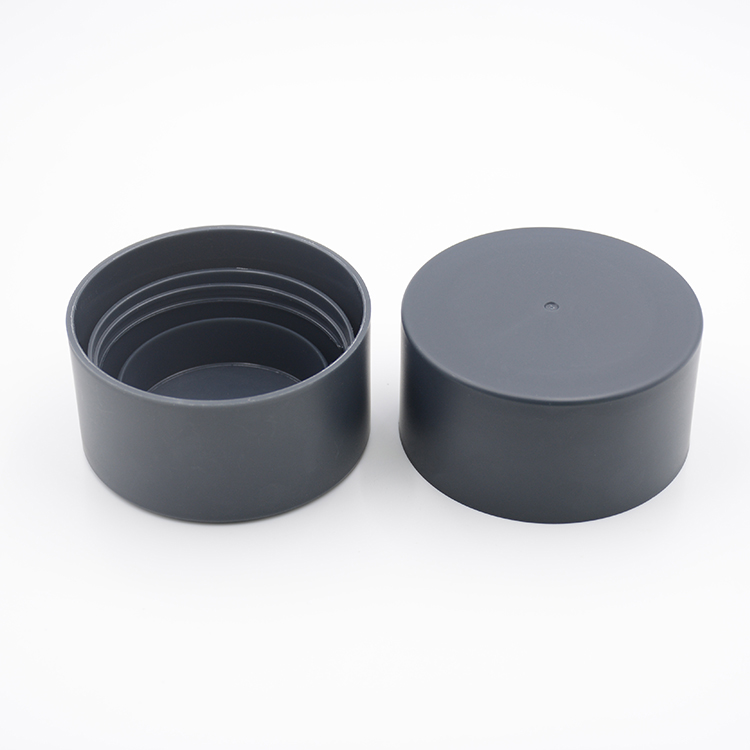

| Application | Plastic lids, container caps, bottle closures, packaging components |
Symmetrical 2-cavity design ensures identical melt flow, pressure, and cooling for each lid.
Doubles output per cycle, significantly reducing unit cost and improving production efficiency.
Eliminates flow imbalance defects such as uneven filling, warpage, or dimensional variation between parts.

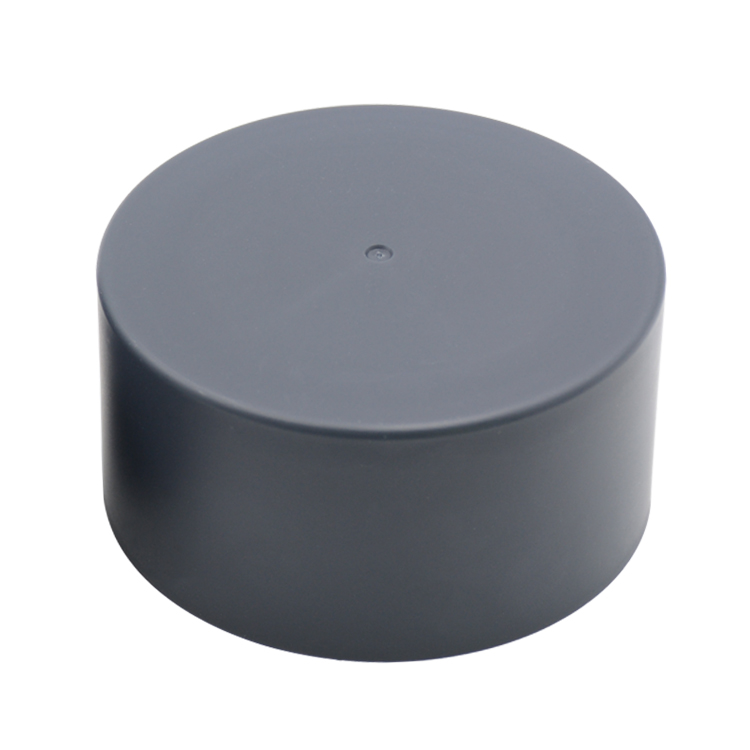

The pin-point gate creates a tiny, almost invisible vestige on the lid surface, eliminating the need for secondary trimming.
Automatic degating during ejection supports fully automated production, saving labor and cycle time.
The small gate size minimizes material waste and prevents over-packing, ensuring consistent part weight and flatness.
1.2344 (H13) steel is renowned for its excellent toughness, wear resistance, and thermal stability.
Heat-treated to HRC48–52, the mold resists abrasion, deformation, and heat checking even after millions of injection cycles.
High hardness maintains cavity dimensions and sealing surfaces over time, ensuring lids remain interchangeable and leak-proof.
Manufactured to ISO standards, the mold undergoes strict dimensional inspection, heat treatment validation, and trial molding before delivery.
Precision machining ensures tight tolerances on critical features like threads, sealing ribs, and tamper-evident rings.
Consistent quality control guarantees long-term stability, reducing downtime and maintenance costs.
PP is ideal for lids due to its low cost, chemical resistance, and good flexibility.
The mold is optimized to prevent common PP molding issues: sink marks, warpage, and flash on sealing edges.
Uniform cooling ensures flat, warp-free lids that fit containers perfectly and maintain consistent sealing performance.
Food and beverage container lids
Household product bottle caps
Industrial packaging closures
Cosmetic and pharmaceutical container lids
General-purpose plastic lid components
