Product Overview

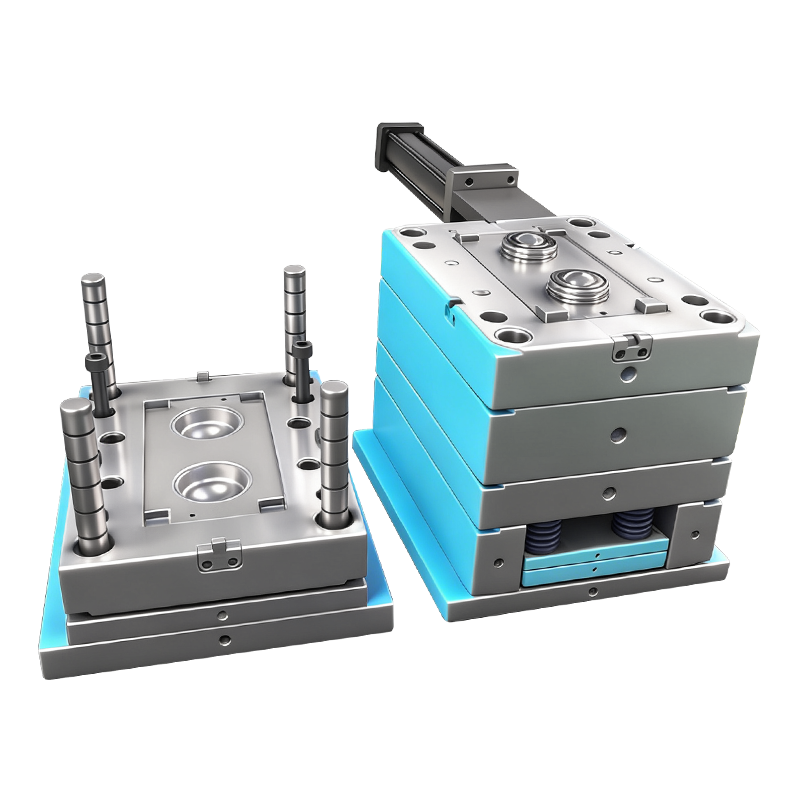

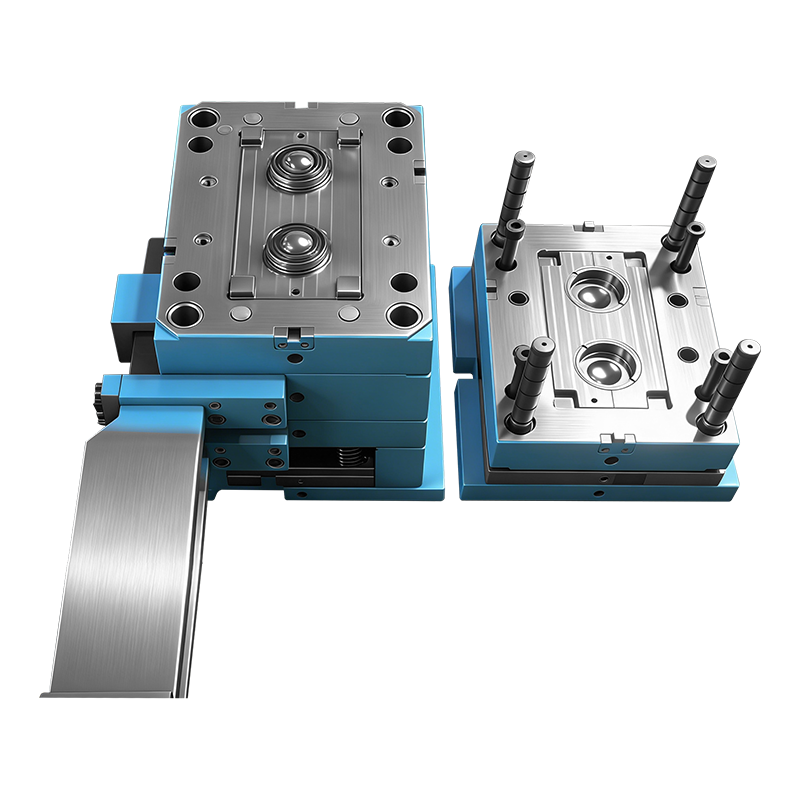

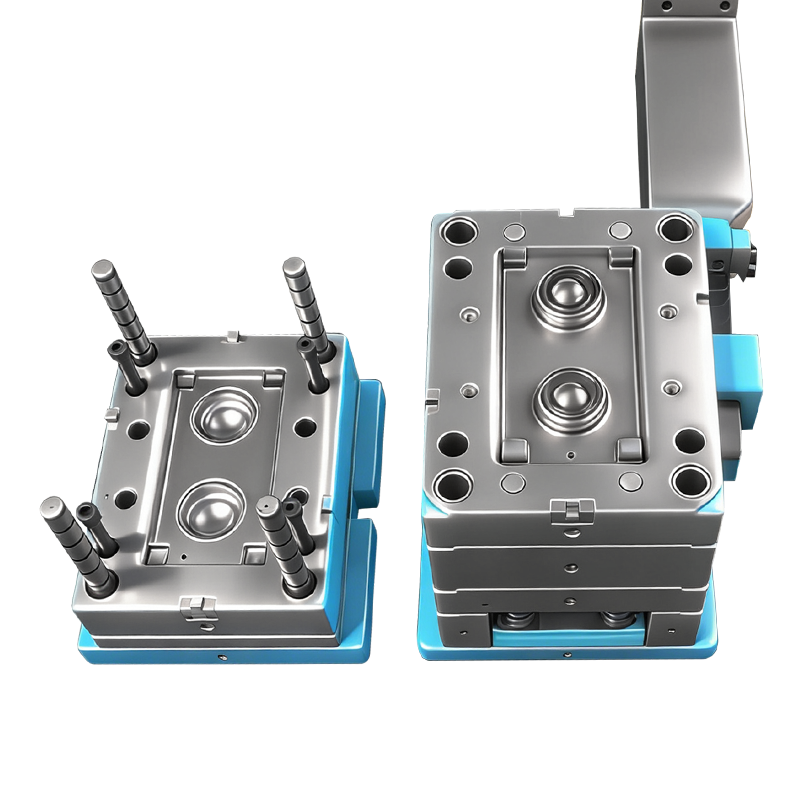

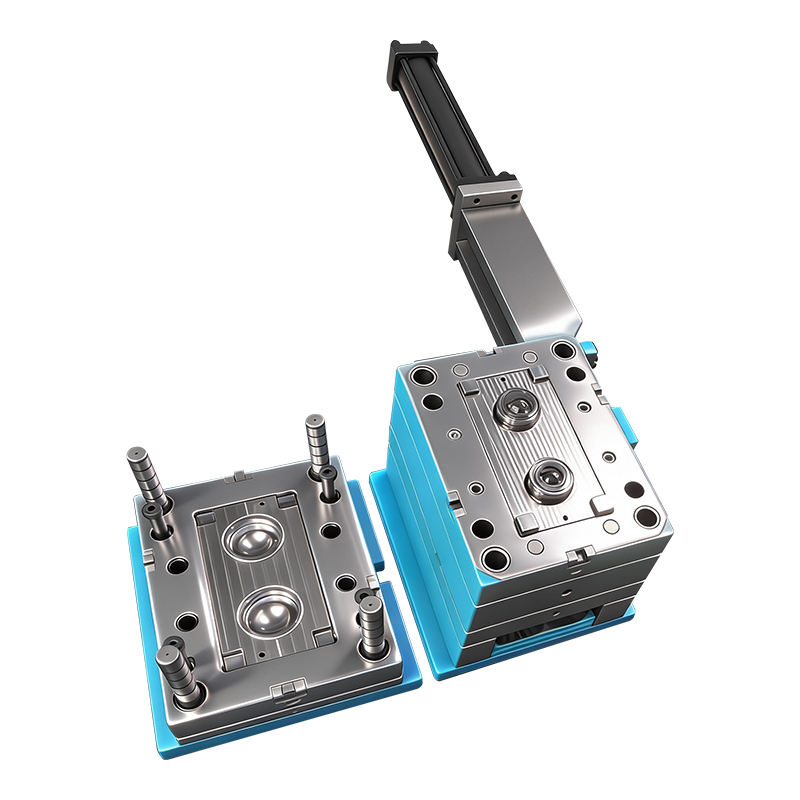

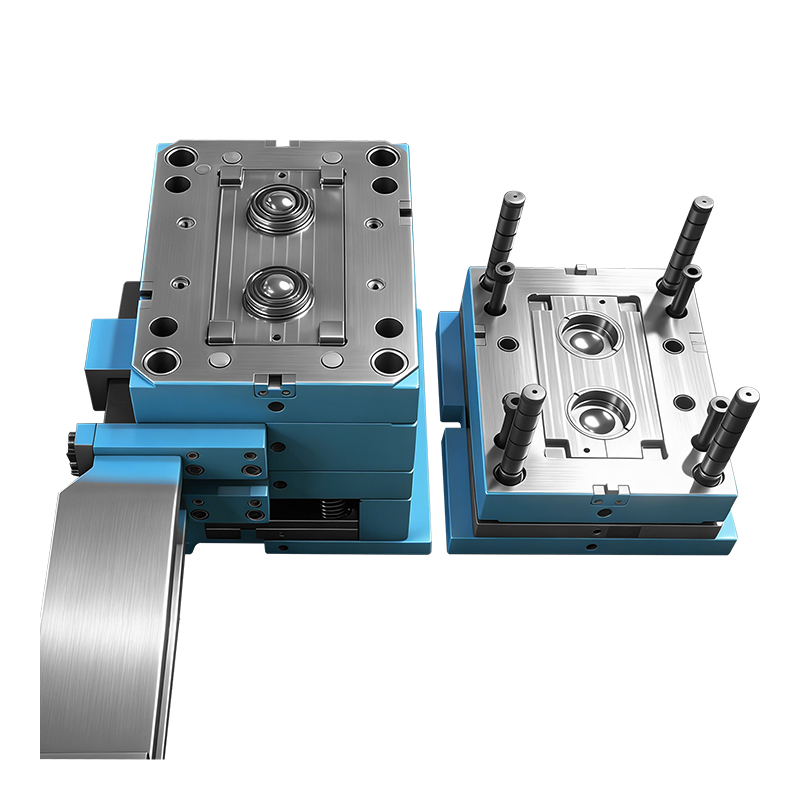

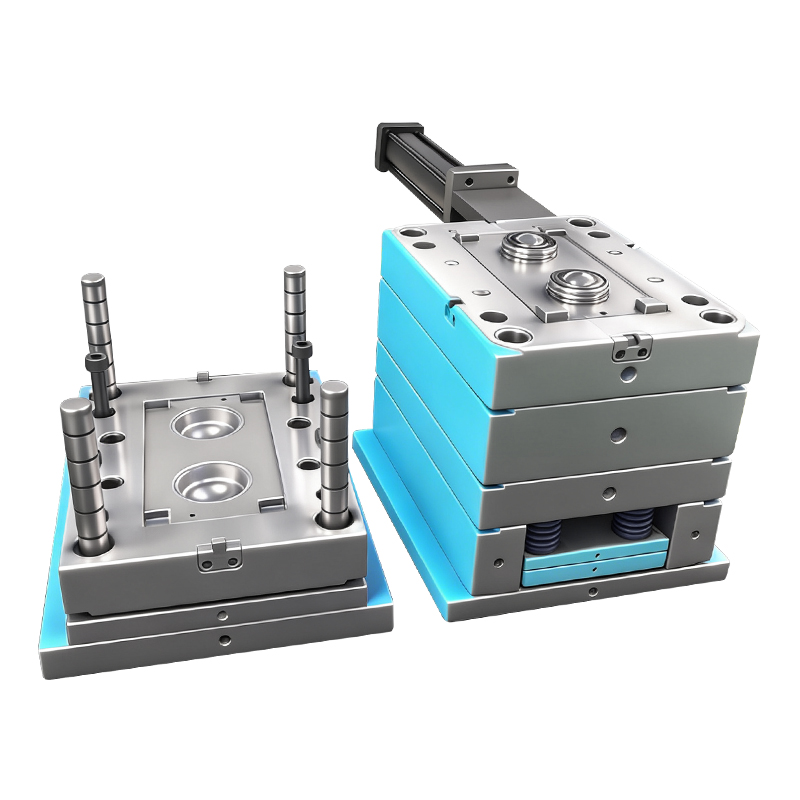

This is a high-precision PC transparent lens shell injection mold specially designed for optical spot lens housing production. Adopting 1×2 cavity layout, professional pin-point sprue runner system, and premium 1.2344 mold steel hardened to HRC 48-52. Both core and cavity are finely polished to meet strict optical surface requirements. The mold is perfectly customized for high-transparency PC material, ensuring flawless light transmission, no weld lines, no flow marks, and stable optical performance for lens shell products.
Mold Specifications
Mold Cavity: 1×2 Cavity high-precision symmetrical layout
Suitable Material: High-transparency PC material, optical grade plastic
Runner Type: Pin-point sprue runner, automatic breaking, clean injection
Mold Steel: 1.2344 hot work mold steel, HRC 48-52 hardness
Surface Treatment: High-precision polishing for core and cavity
Mold Application: Optical spot lens shell, LED lens housing, transparent optical parts
Mold Feature: No bubble, no scratch, high light transmittance, high consistency
Core Product Advantages
1. Professional Pin-point Sprue Runner Design
Equipped with precision pin-point sprue runner, which realizes automatic gate separation during ejection. It leaves no gate mark on the transparent PC lens surface, effectively avoiding light refraction defects. The tiny spot feeding ensures uniform plastic filling, reduces internal stress, and protects the optical integrity of lens shells.
2. High Hardness 1.2344 Mold Steel (HRC48-52)
The mold adopts genuine 1.2344 mold steel with high hardness and excellent temperature resistance. It effectively resists high-temperature impact and wear during long-term PC transparent material molding. Stable hardness prevents mold deformation, ensures long-term high-precision production, and greatly extends mold service life.
3. Full Polished Core & Cavity for Optical Grade Surface
Both core and cavity undergo fine mirror polishing. The ultra-smooth mold surface delivers crystal-clear PC lens shells with zero scratches, zero orange peel, and zero flow lines. Perfectly meet high-standard optical appearance and light transmission requirements for lens components.
4. Special Optimization for PC Transparent Material
The mold cooling system and flow channel are professionally optimized for PC material characteristics. It effectively eliminates common defects such as air bubbles, shrinkage marks, and silver streaks on transparent products. The molded lens shells feature uniform light transmission and stable optical performance.
5. Stable 1×2 Cavity Mass Production
Reasonable 1×2 cavity symmetrical structure ensures balanced filling and consistent product weight, size and appearance of each cavity. It improves production efficiency while maintaining ultra-high precision, ideal for large-volume manufacturing of optical lens shells.
Application Range
Widely used for producing optical spot lens shells, LED lamp lens housings, lighting transparent accessories, optical instrument transparent parts, and other high-precision transparent PC optical components.
Why Choose This Optical Lens Mold
Pin-point gate design for invisible feeding & perfect optical surface
1.2344 high hardness steel for long mold life & stable precision
Full polished core and cavity for crystal transparent PC parts
Professional optimization for anti-bubble, anti-mark transparent molding
1×2 cavity high efficiency, low defect rate
Strict optical standard quality control
