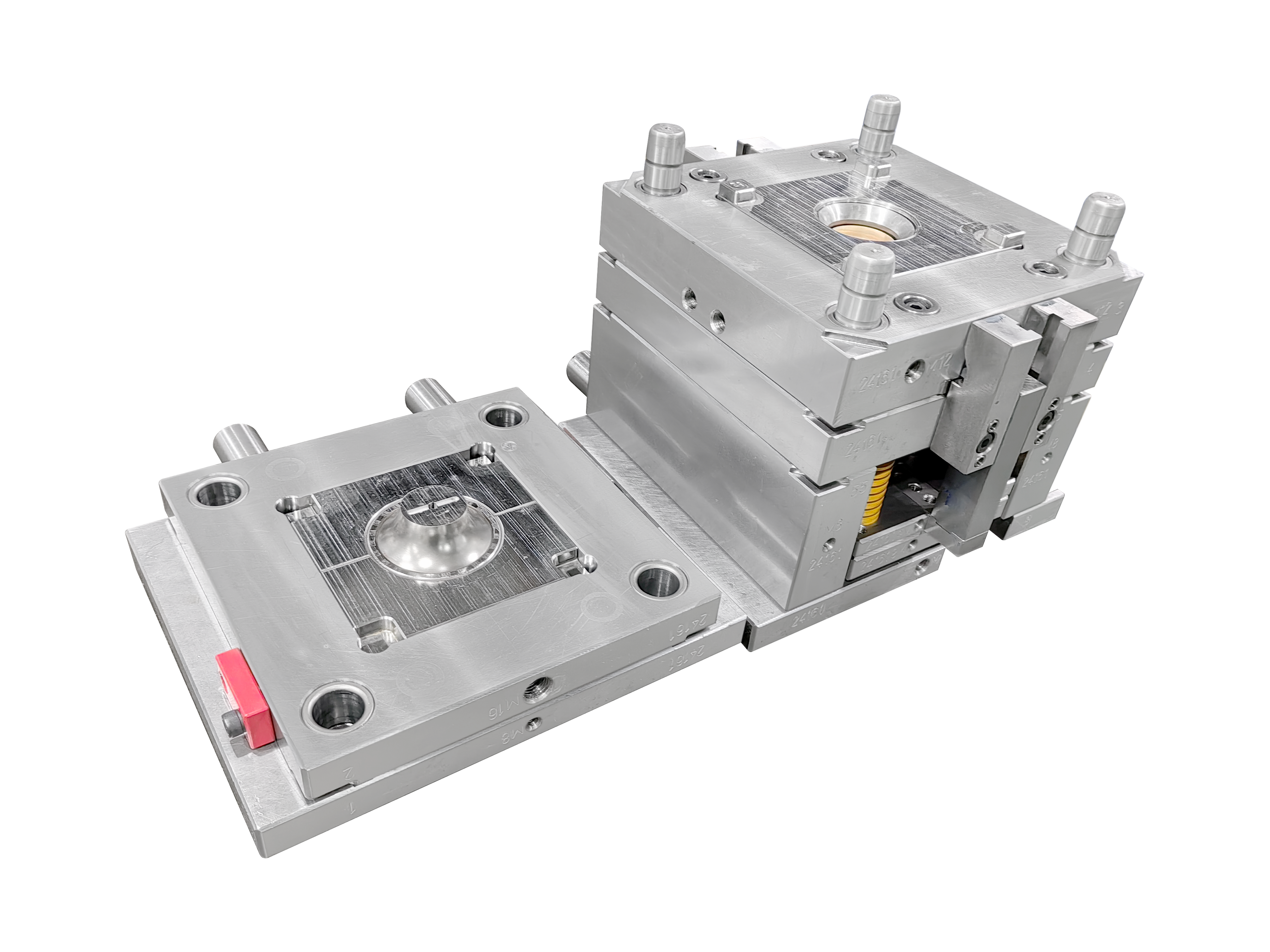

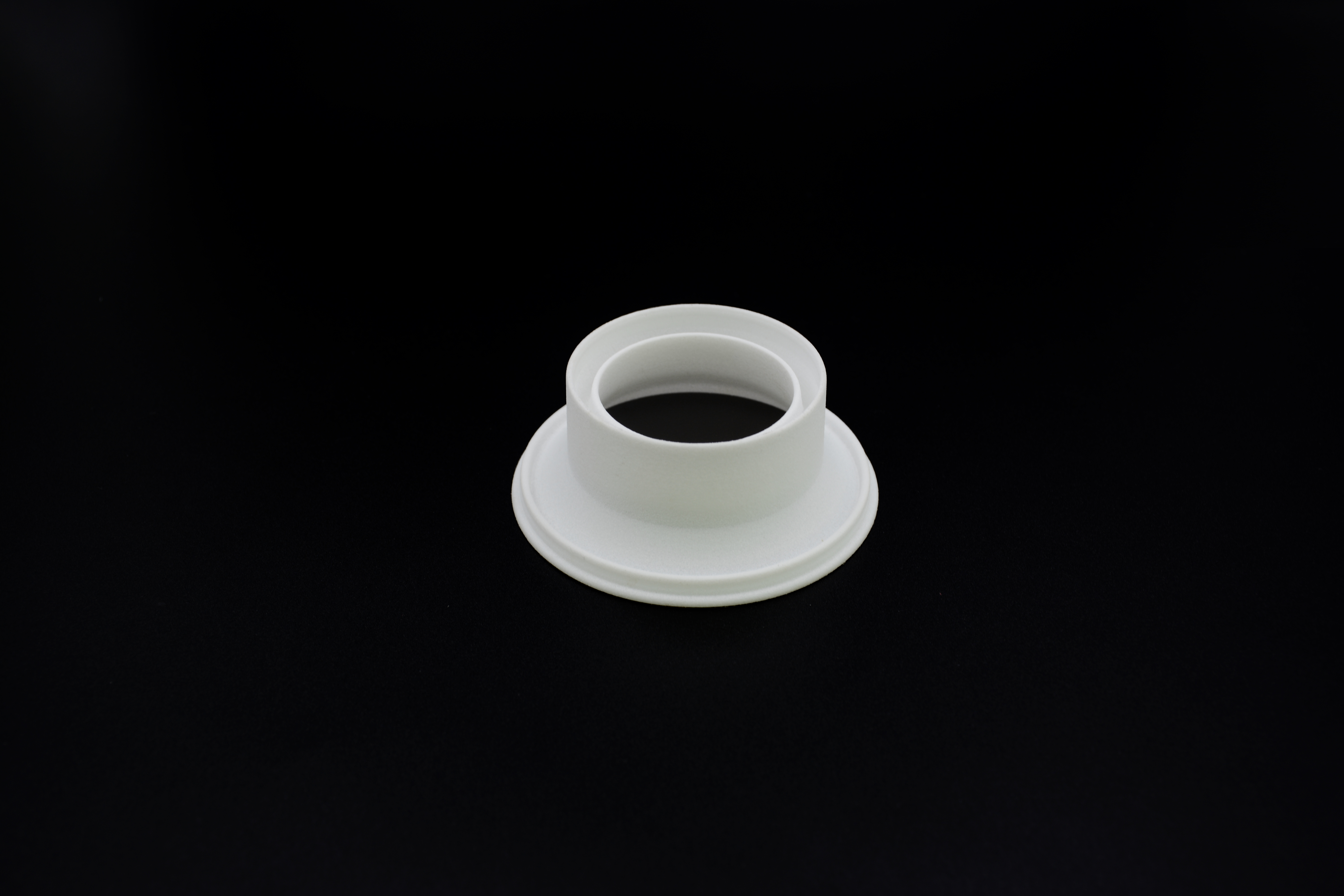

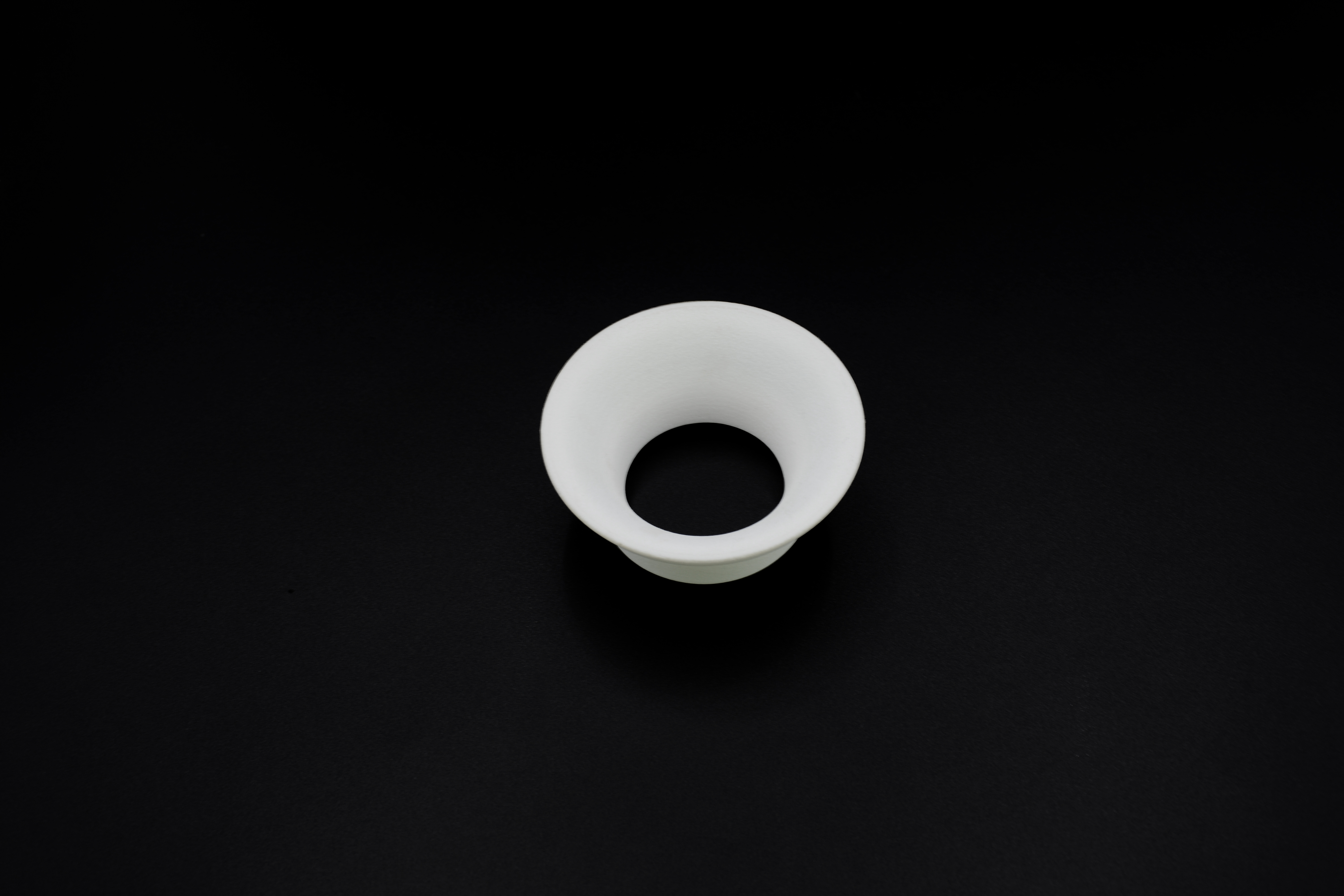

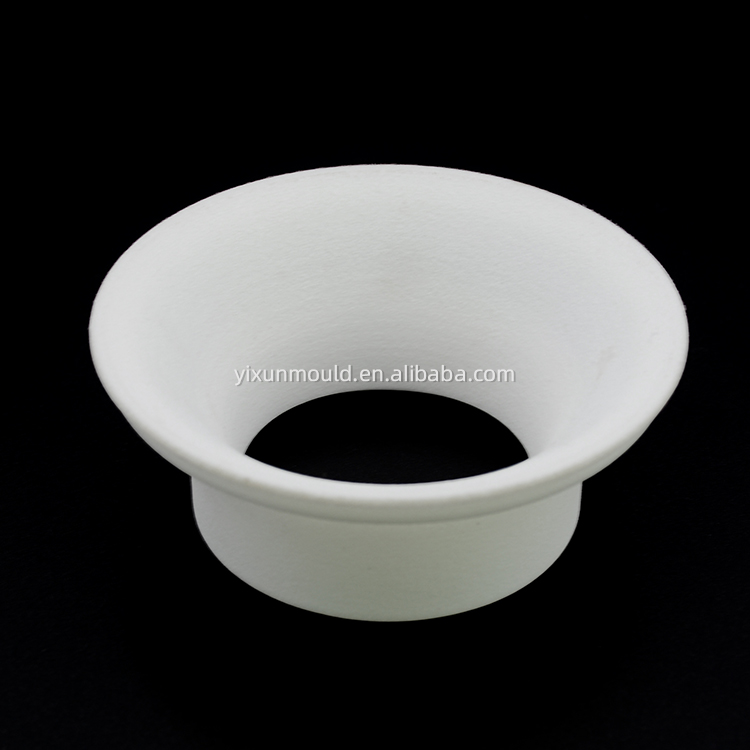

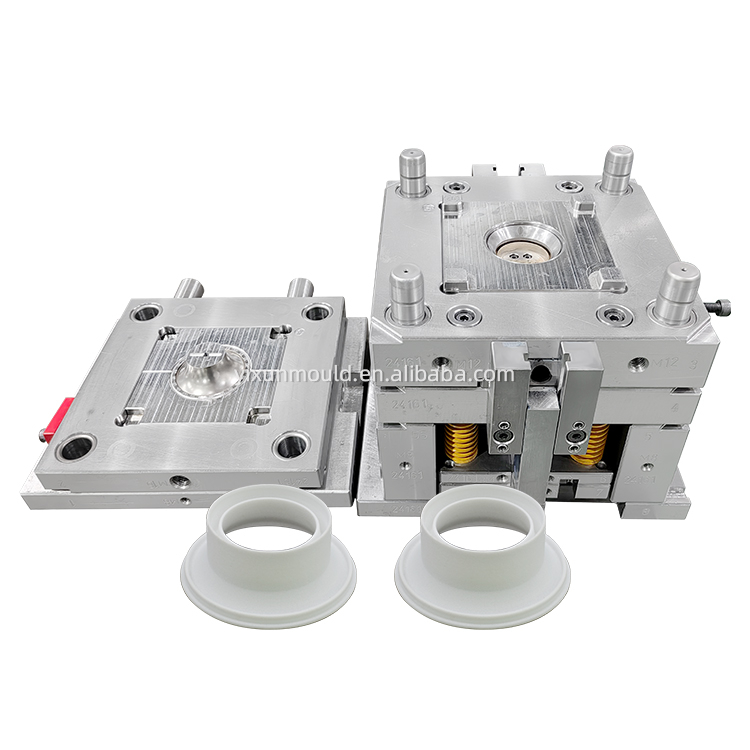

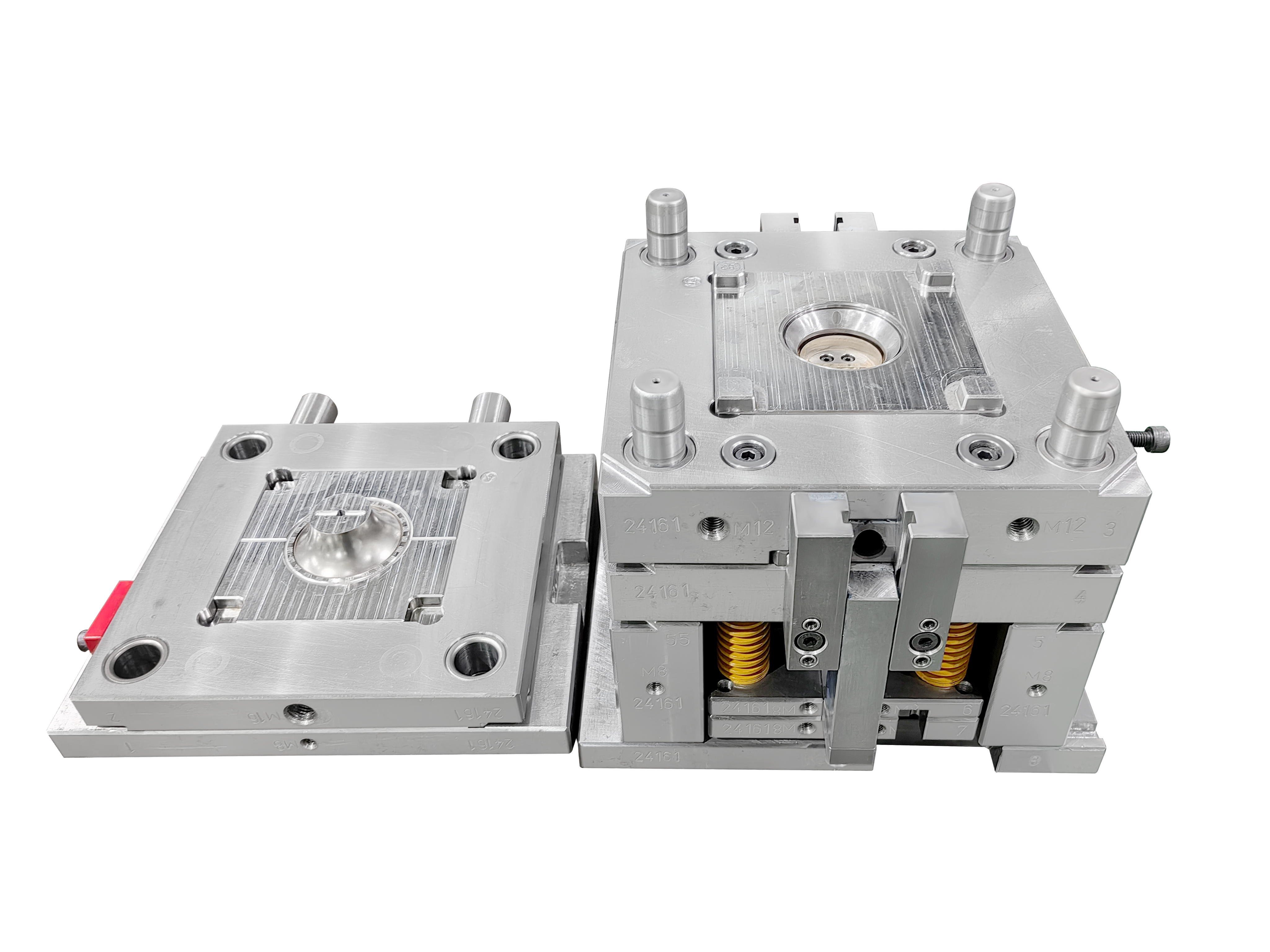

1*1 Cavity PC Material Large Horn Gate HRC37-43 Mold Steel Embossed Logo VDI27 Finish Rimless Reflector Mould

This is a high-precision 1×1 cavity custom injection mold for PC rimless reflector components. Designed with large horn gate, HRC37-43 mold steel, embossed logo, and VDI27 finish, it delivers accurate dimensions, uniform matte texture, and clear logo detail—ideal for high-quality reflector parts in lighting and automotive applications.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 24161

  • YIXUN mold

  • 8480419090

Product Overview

This is a high-precision 1×1 cavity custom injection mold for PC rimless reflector components. Designed with large horn gate, HRC37-43 mold steel, embossed logo, and VDI27 finish, it delivers accurate dimensions, uniform matte texture, and clear logo detail—ideal for high-quality reflector parts in lighting and automotive applications.

Key Features

✅ 1×1 Cavity High-Precision Structure
Single-cavity design focuses on high precision and surface quality, suitable for small-to-medium batch production of rimless reflectors. Balanced cooling and stable clamping ensure consistent shrinkage, tight tolerances, and no warpage.
✅ Large Horn Gate for PC Molding
Specially designed large horn gate optimizes melt flow for high-viscosity PC material. It reduces shear stress, prevents weld lines and stress marks, and ensures complete filling of thin reflector surfaces.
✅ HRC37-43 Pre-Hardened Mold Steel
Made of durable pre-hardened steel with hardness HRC37-43, offering excellent rigidity, wear resistance, and long mold life ≥500,000 cycles. Stable dimensions avoid deformation after long-term production.
✅ Embossed Logo & VDI27 Finish
Cavities feature custom embossed logo and VDI27 uniform matte texture. The logo is sharp and durable; the VDI27 finish hides minor defects, improves light diffusion, and delivers a premium appearance for reflectors.
✅ Rimless Reflector Optimized Design
Reinforced mold plates, precise guide pins, and smooth ejection system ensure clean demolding without scratching the reflector surface. Optimized venting eliminates air traps and burn marks on thin edges.

Technical Specifications

Parameter Details
Mold Type Custom Injection Mold for Rimless Reflector
Cavity 1×1 Cavity
Material PC (Polycarbonate)
Gate System Large Horn Gate
Mold Steel HRC37-43 Pre-hardened Steel
Cavity Finish VDI27 Texture + Custom Embossed Logo
Mold Life ≥500,000 cycles
Part Application Lighting reflectors, automotive lamp reflectors, household appliance reflectors, LED light covers
Cooling System Optimized internal cooling channels

Large Horn Gate HRC37-43 Rimless Reflector Mold



Application Scenarios

  • LED lighting rimless reflectors

  • Automotive headlight/tail lamp reflectors

  • Home appliance light reflectors

  • Industrial lighting reflector components

  • Decorative lighting diffusion covers

Why Choose This Mold

  • Single-cavity precision for high-quality reflector output

  • Large horn gate ensures smooth PC filling and defect-free surfaces

  • Embossed logo + VDI27 finish for premium look and branding

  • Stable HRC37-43 steel for long life and consistent performance

  • Customizable size, logo, and texture for various reflector designs
