1*1 Cavity PC Material Large Gate Sub Gate Injection HRC37-43 Steel VDI27 Mold Finish Rimless Ring Plastic Mould

1*1 Cavity PC Material Large Gate Sub Gate Injection HRC37-43 Steel VDI27 Mold Finish Rimless Ring Plastic Mould

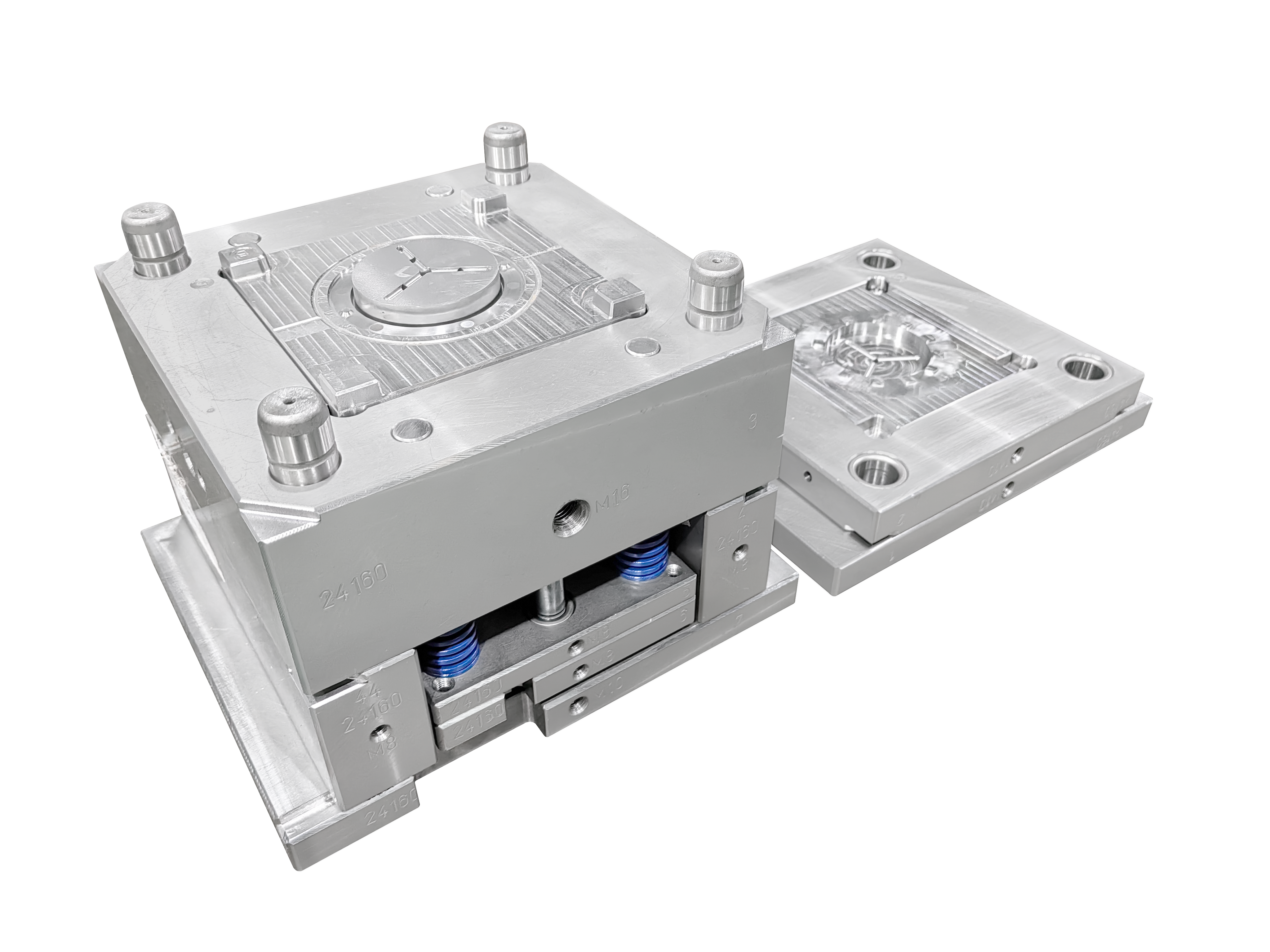

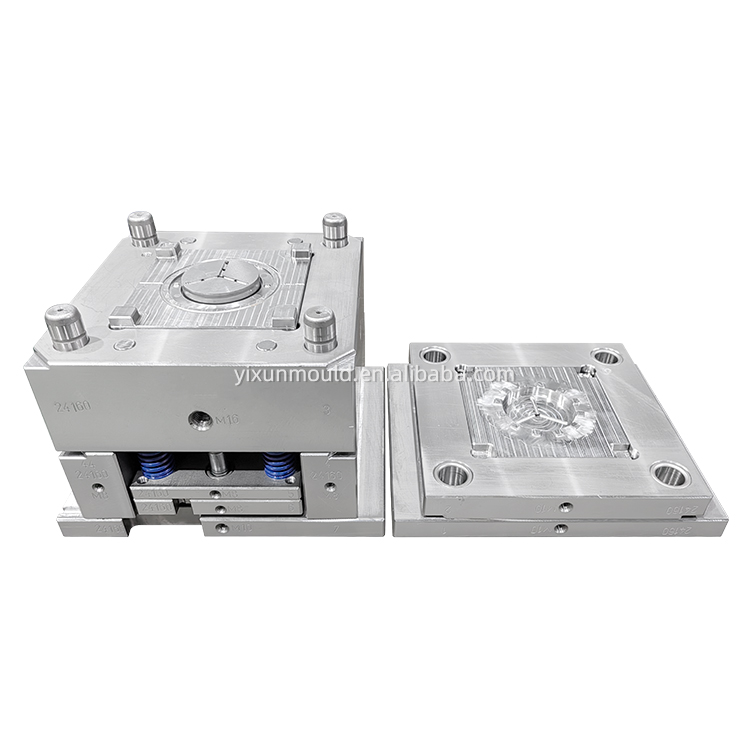

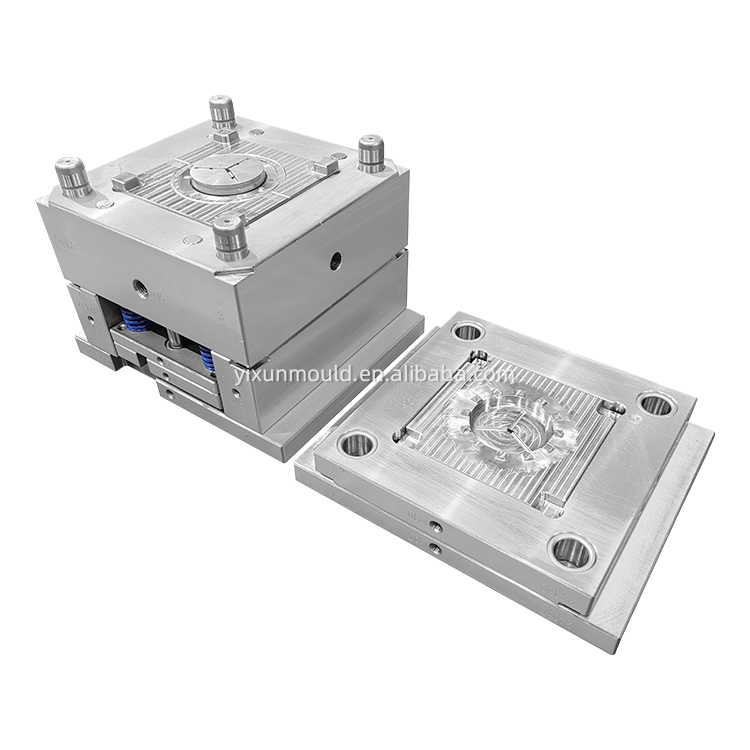

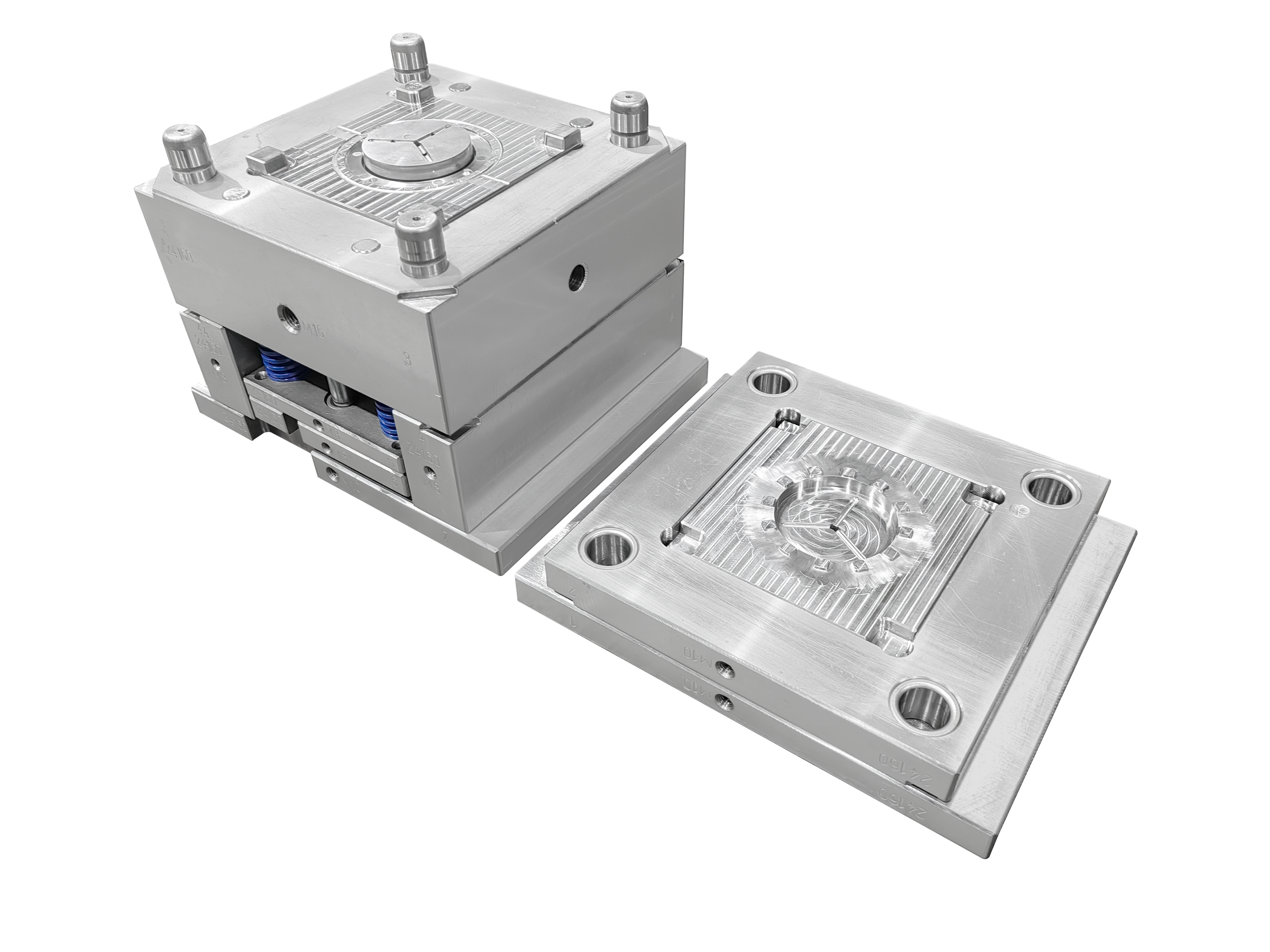

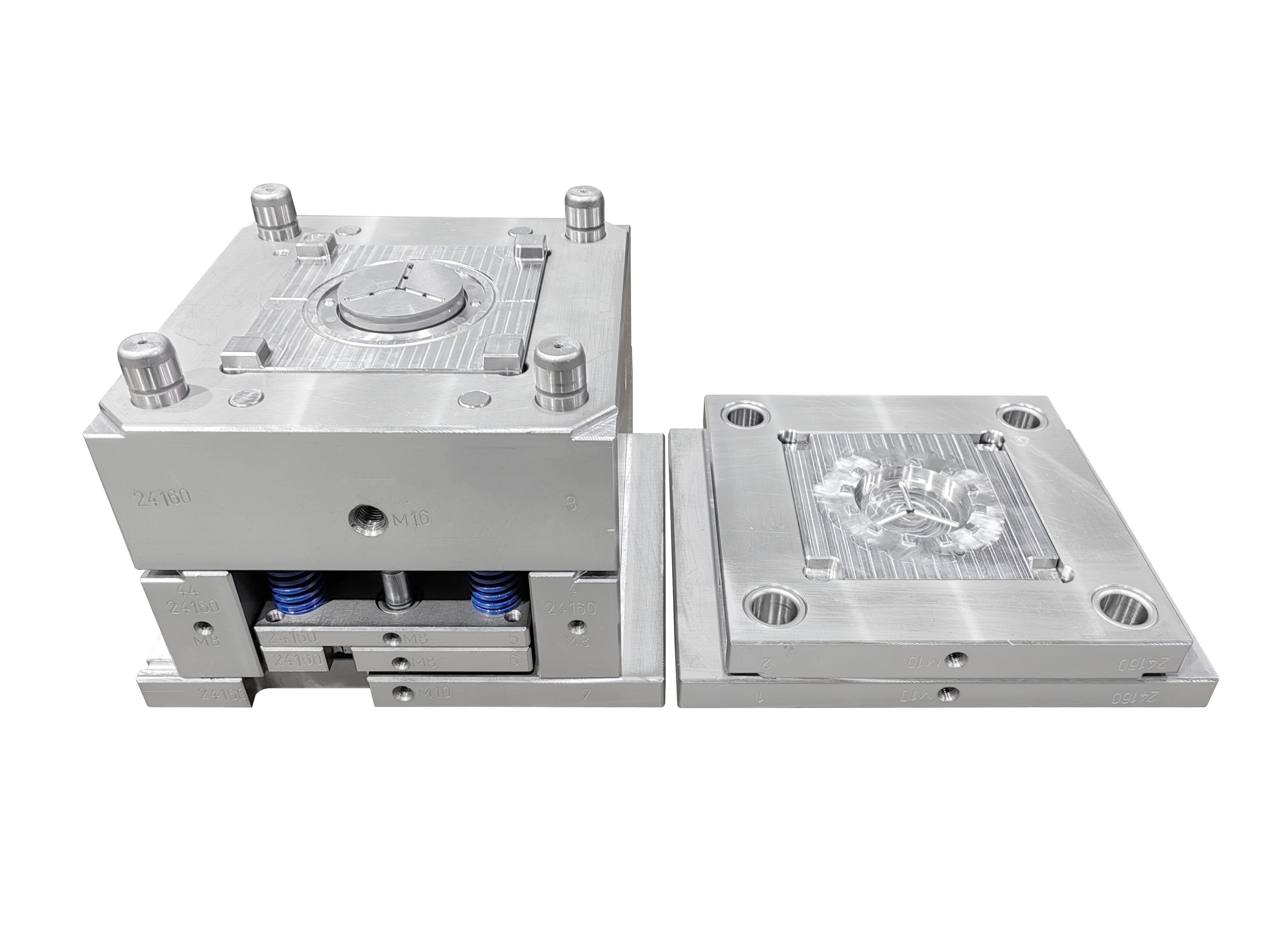

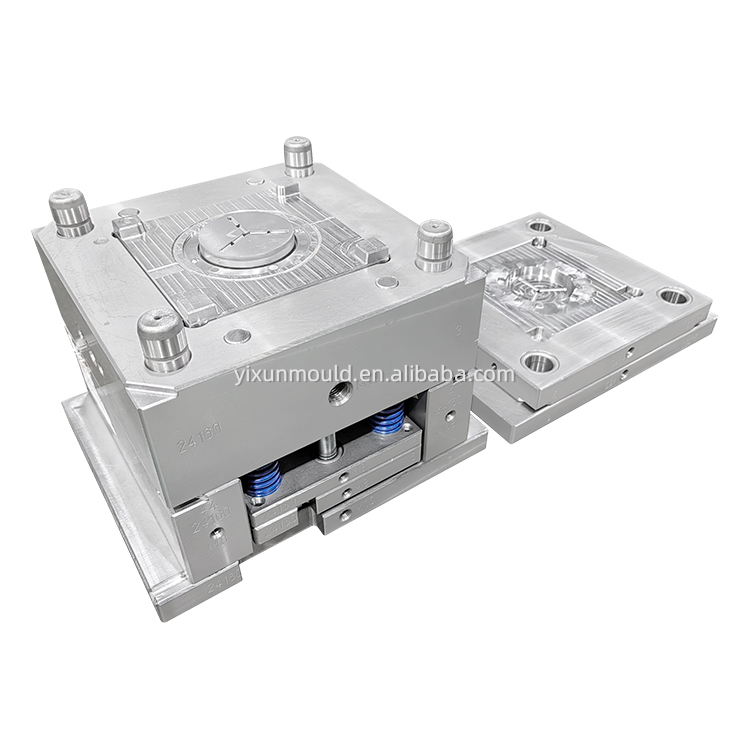

This is a high-precision 1×1 cavity custom injection mold for producing PC rimless ring plastic components. Built with large gate sub-gate design, HRC37-43 steel, and VDI27 mold finish, it delivers consistent quality, stable dimensions, and a uniform matte surface—ideal for single-cavity, high-precision production of rimless rings.

Quantity:
Availability:





Inquire Add to Basket

Model:
24160
Brand:
YIXUN mold
Code:
8480419090

Product Description

Product Overview

This is a high-precision 1×1 cavity custom injection mold for producing PC rimless ring plastic components. Built with large gate sub-gate design, HRC37-43 steel, and VDI27 mold finish, it delivers consistent quality, stable dimensions, and a uniform matte surface—ideal for single-cavity, high-precision production of rimless rings.

Key Features

✅ 1×1 Cavity High Precision Design

Single cavity layout focuses on high precision and surface quality, suitable for small-to-medium batch production of rimless rings. Balanced runner and optimized cooling ensure consistent shrinkage, tight tolerance, and zero flash.

✅ PC Material Optimized Large Gate Sub-Gate

Large sub-gate system designed for PC (polycarbonate) with high melt viscosity. It ensures fast, uniform filling, reduces shear heat, and minimizes gate marks, weld lines, and stress—critical for transparent/translucent rimless rings.

✅ HRC37-43 Pre-Hardened Mold Steel

Durable pre-hardened steel provides excellent rigidity and wear resistance, long mold life ≥500,000 cycles. No post-hardening deformation, maintaining stable dimensions for rimless rings.

✅ VDI27 Uniform Matte Mold Finish

Cavities finished with VDI27 texture, creating a consistent, smooth matte surface on the rimless ring. Hides minor defects, improves touch feel, and enhances assembly fit.

✅ Rimless Ring Dedicated Structure

Reinforced mold plates, precise guide pins, and reliable ejection system ensure smooth demolding without deformation. Optimized venting prevents burns or air traps on thin ring edges.

Technical Specifications

Parameter	Details
Mold Type	Custom Injection Mold for Rimless Ring
Cavity	1×1 Cavity
Material	PC (Polycarbonate)
Gate System	Large Gate / Sub Gate
Mold Steel	HRC37-43 Pre-hardened Steel
Cavity Finish	VDI27 Texture
Mold Life	≥500,000 cycles
Part Use	Rimless decorative rings, cosmetic parts, appliance trim rings, electronic decorative rings
Cooling	Optimized internal cooling channels

Application

Cosmetic packaging rimless rings
Home appliance decorative trim rings
Electronic product bezel & ring parts
Furniture & lighting decorative rings
Medical device plastic ring covers

Why Choose This Mold

High precision single cavity for consistent rimless ring quality
PC-friendly large gate reduces defects and improves surface
VDI27 finish delivers premium matte appearance
Stable HRC37-43 steel for long life and low maintenance
Customizable size & texture for various ring designs

Rimless Ring Plastic Mould 1*1 Cavity PC Material Rimless Ring Plastic Mould HRC37-43 Steel Plastic Mold Large Gate Sub Gate Injection mould
