This listing features two precision injection-molded components: the PP-512-5 Top Cap and PP-512-6 Base Cap, crafted from PA66+30%GF (A3EG6) glass-fiber reinforced nylon in RAL 3000 Red. Designed for high-performance industrial applications, these caps are manufactured with a 1+1 cavity mold configuration, ensuring tight tolerances, consistent strength, and long-term durability.

Quantity:
Availability:





Inquire Add to Basket

Model:
25023
Brand:
yixunmold

Product Description

1. Product Overview

This listing features two precision injection-molded components: the PP-512-5 Top Cap and PP-512-6 Base Cap, crafted from PA66+30%GF (A3EG6) glass-fiber reinforced nylon in RAL 3000 Red. Designed for high-performance industrial applications, these caps are manufactured with a 1+1 cavity mold configuration, ensuring tight tolerances, consistent strength, and long-term durability.

2. Core Material Specifications

Material: PA66+30% Glass Fiber (A3EG6)

30% glass-fiber reinforced polyamide 66, delivering exceptional mechanical properties for structural and functional use cases.
Color: RAL 3000 Red

A vibrant, fade-resistant red finish with excellent UV and chemical stability, ideal for safety-critical or visibility-focused applications.
Key Material Advantages:

High tensile strength and rigidity, ideal for load-bearing and high-stress environments.
Improved dimensional stability and low warpage, even under fluctuating temperatures.
Excellent wear resistance and fatigue strength for long service life in repeated-use assemblies.
Enhanced chemical resistance to oils, greases, and industrial cleaning agents.

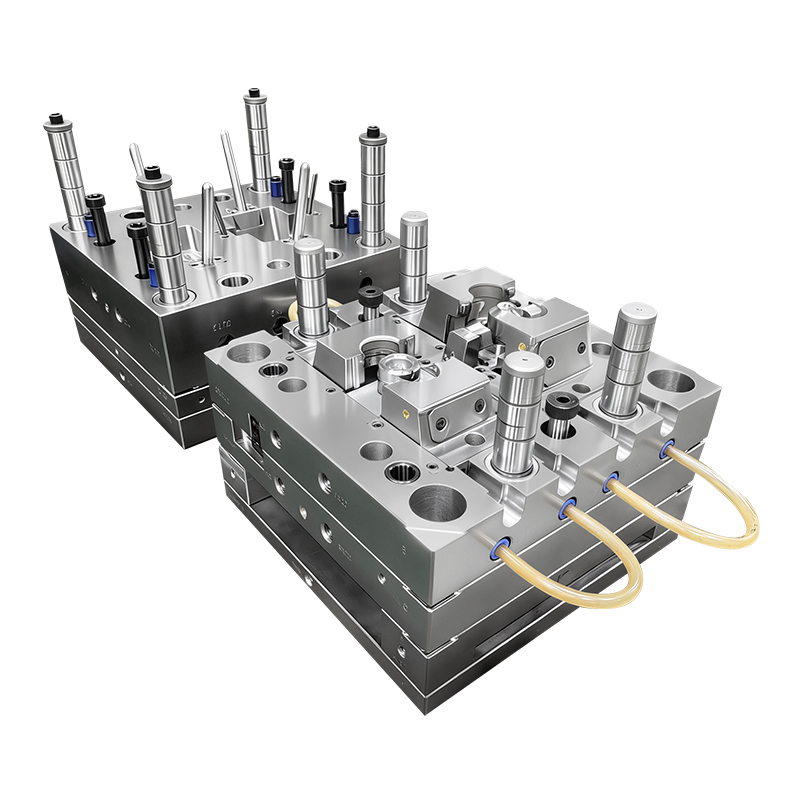

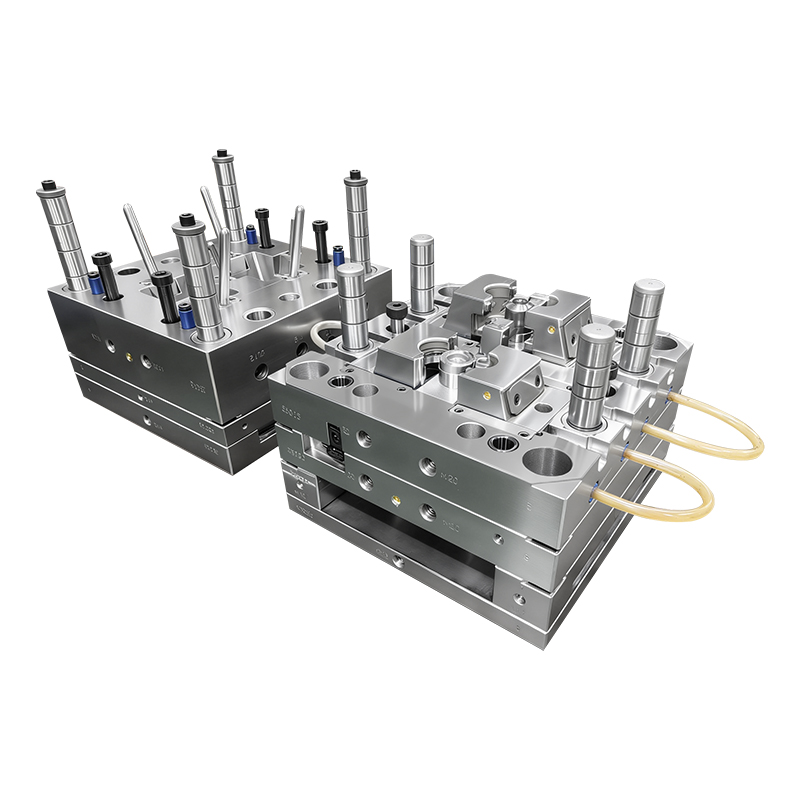

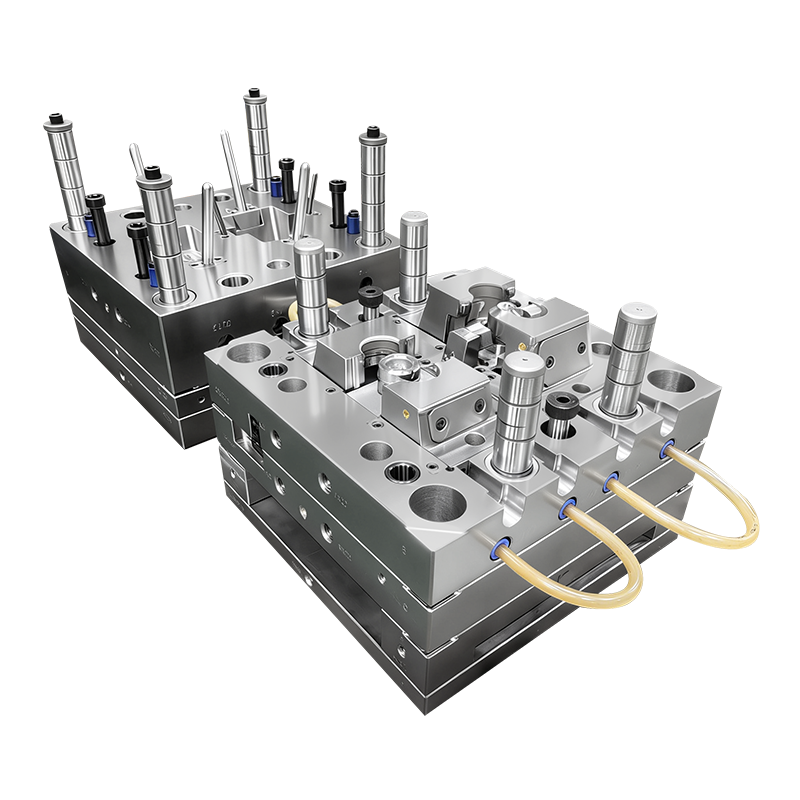

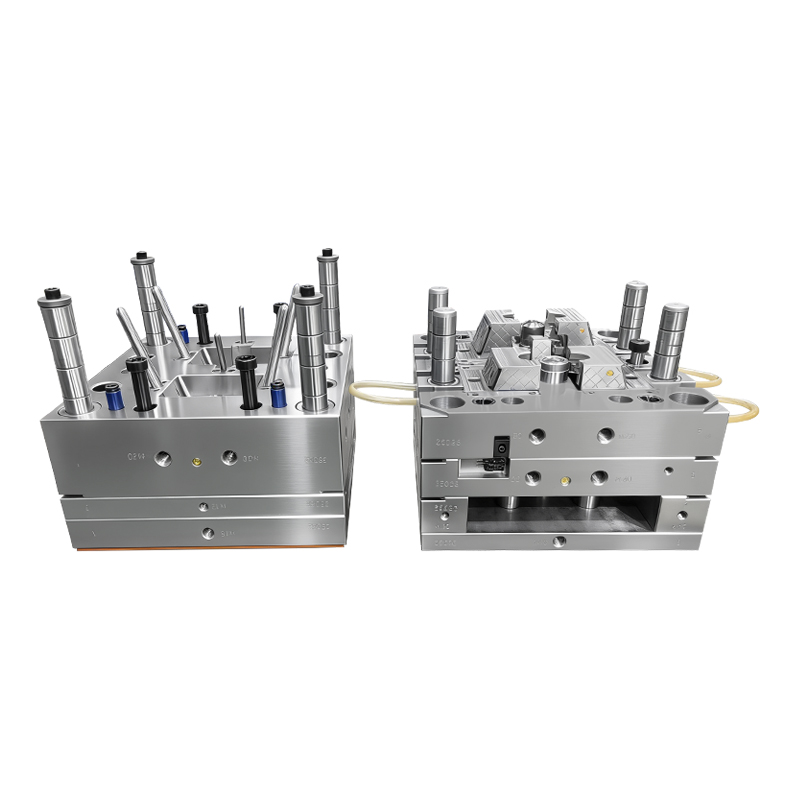

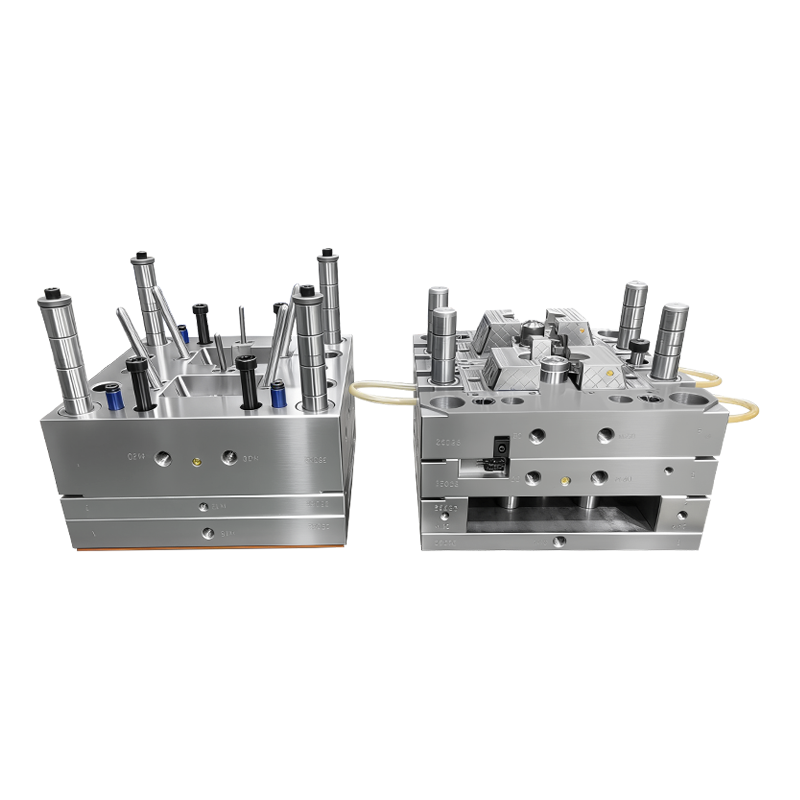

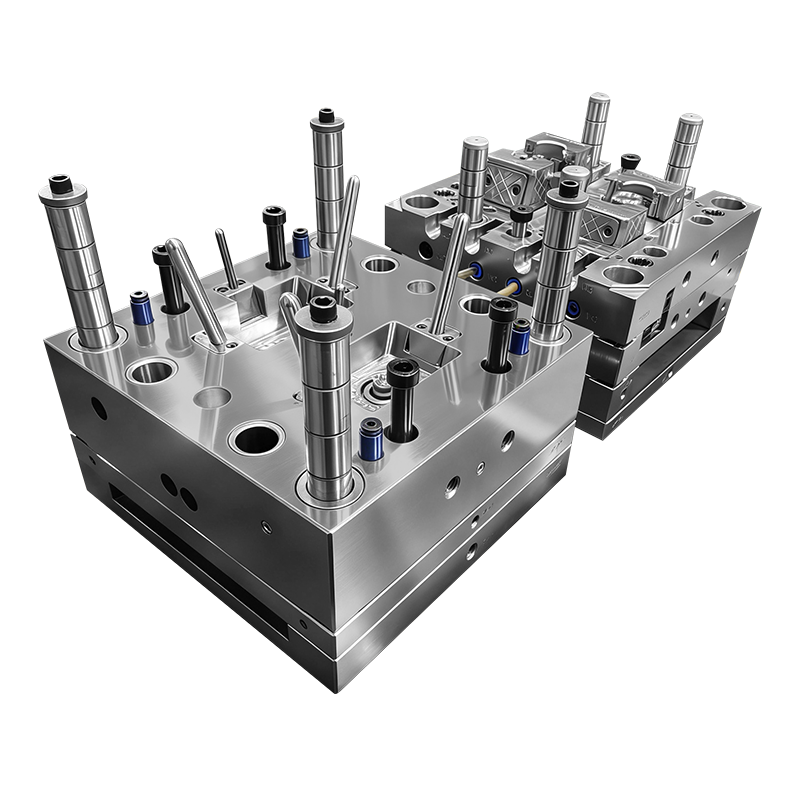

3. Mold & Production Process

Parameter	Specification
Mold Cavity	1+1 (Dual independent cavities for Top Cap & Base Cap)
Gate System	Pin-Point Gate (Fine Runner)
Front Mold Material	1.2344 (HRC 48–52) + D2 (HRC 58–60)

Process Highlights:

High-Hardness Mold Steel: The 1.2344 (HRC 48–52) and D2 (HRC 58–60) mold steels offer exceptional wear resistance and dimensional stability, ensuring consistent part quality even with reinforced PA66 materials.
Pin-Point Gate Design: This fine runner system leaves minimal gate marks on the finished parts, eliminating the need for secondary trimming and preserving the aesthetic integrity of the caps.
Dual-Cavity Configuration: The 1+1 setup allows simultaneous production of both the top and base caps, streamlining assembly-ready order fulfillment and reducing lead times.

4. Key Features & Benefits

✅ High-Strength Reinforced Construction: 30% glass fiber reinforcement delivers superior rigidity and impact resistance for demanding applications.

✅ Precision Molded Tolerances: Optimized mold steel and gate design ensure consistent dimensions for perfect assembly fit.

✅ Clean, Low-Maintenance Finish: Pin-point gate system eliminates visible gate marks, reducing post-processing labor.

✅ Long Mold Life: High-hardness D2 and 1.2344 steels withstand the abrasive nature of glass-filled PA66, minimizing mold wear.

✅ Vibrant, Durable Color: RAL 3000 Red provides high visibility and resistance to fading in harsh environments.

5. Applications

Industrial equipment assemblies and machinery components
Automotive and transportation systems requiring structural strength
Safety-critical parts requiring high visibility color coding
Electronic enclosures and housing assemblies needing dimensional stability
