Key Selling Points (Bullet Points)
✅ Direct Mold Manufacturer: No middleman markup, factory-direct pricing for custom injection mold solutions
✅ Precision Single Cavity Design: 1*1 cavity configuration ensures consistent dimensional accuracy for ABS threaded connectors
✅ Reliable Hot Runner System: Single tip hot nozzle minimizes material waste, reduces cycle time, and improves part surface quality
✅ Durable H13 Tool Steel: Mold base made of H13 steel heat-treated to HRC48-52, offering high wear resistance and long mold life (up to 1,000,000+ shots)
✅ SPI-B3 Standard Texture: Semi-gloss SPI-B3 finish (Ra 0.05-0.32μm) delivers a smooth, functional surface ideal for threaded applications
✅ Optimized for ABS Material: Mold tailored for ABS resin, ensuring excellent flowability, dimensional stability, and impact resistance for plastic threaded connectors
Product Overview
This custom injection mold is engineered specifically for manufacturing high-precision ABS plastic threaded connectors. Built with a single cavity and a single-tip hot runner system, it balances production efficiency with consistent part quality. The mold uses premium H13 hot-work tool steel (HRC48-52) and features an SPI-B3 semi-gloss texture, making it ideal for producing durable, leak-proof threaded connectors for fluid transfer, piping, and industrial applications. As a direct mold maker, we provide full customization support from design to final mold validation.
Detailed Specifications
| Specification | Details |
| Mold Type | Injection Mold for Plastic Threaded Connector |
| Cavity Configuration | 1*1 Cavity (Single Cavity) |
| Runner System | Single Tip Hot Nozzle (Hot Runner) |
| Mold Steel | H13 Hot-Work Tool Steel |
| Hardness | HRC 48-52 (Heat-Treated) |
| Surface Finish | SPI-B3 Semi-Gloss Texture (Ra 0.05-0.32μm) |
| Molded Material | ABS (Acrylonitrile Butadiene Styrene) |
| Mold Life Expectancy | 1,000,000+ Cycles (Under Standard Production Conditions) |
| Application | Plastic Threaded Connectors for Plumbing, Irrigation, Industrial Pipelines |
| Manufacturing Lead Time | 30-45 Days (Depends on Design Complexity) |
| Quality Control | 100% Mold Trial, Dimensional Inspection, and Surface Finish Verification |
| Certification | ISO 9001 Compliant Manufacturing Process |

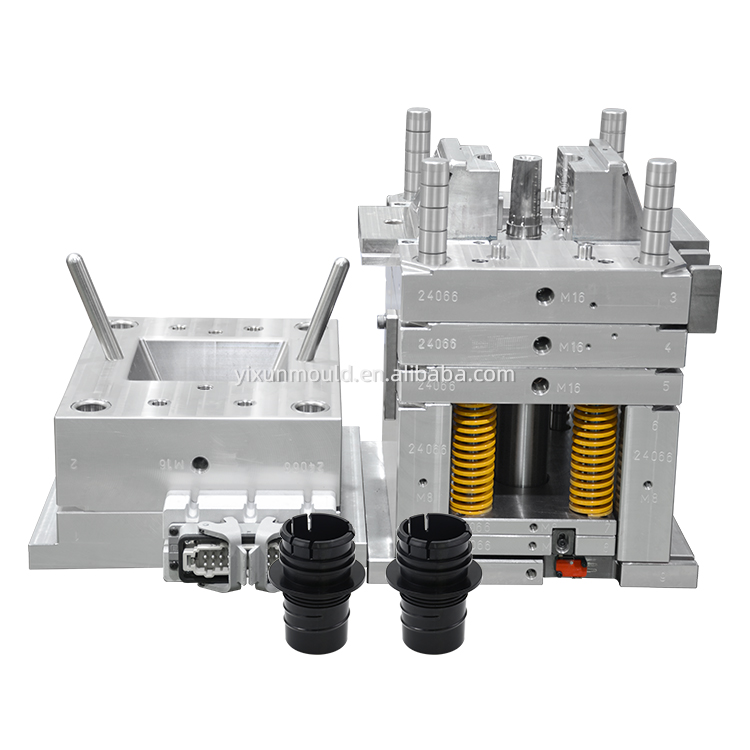

![1*1 Cavity ABS Material Threaded Connector Direct Mold Maker]( "1*1 Cavity ABS Material Threaded Connector Direct Mold Maker")
Core Advantages
1. Superior Mold Durability with H13 Steel
The mold is constructed from premium H13 hot-work tool steel, heat-treated to HRC48-52. This material offers exceptional wear resistance, high-temperature stability, and toughness, ensuring the mold maintains precision even after millions of injection cycles. The steel’s composition (chromium, molybdenum, vanadium) resists thermal fatigue and corrosion, extending the mold’s service life significantly.
2. Efficient Hot Runner System
Equipped with a single-tip hot nozzle, the mold eliminates cold runner waste, reduces material costs, and shortens cycle times. The hot runner system ensures uniform melt flow into the cavity, minimizing part defects like weld lines or sink marks, and improves the surface quality of the ABS threaded connector.
3. Precision for Threaded Applications
The mold is designed with tight tolerances to produce accurate plastic threads, ensuring perfect mating between connectors. The SPI-B3 semi-gloss texture provides a smooth yet functional surface that prevents thread galling while maintaining a clean, professional appearance. The single cavity design allows for meticulous quality control, ensuring every part meets dimensional specifications.
4. Optimized for ABS Material
Tailored for ABS resin, the mold features balanced cooling channels and optimized gating to accommodate ABS’s flow characteristics. This ensures consistent filling, minimal warpage, and excellent mechanical properties in the final threaded connector, including impact resistance and dimensional stability.
Applications
This mold produces ABS plastic threaded connectors suitable for a wide range of industries:
Plumbing and irrigation systems
Industrial fluid transfer pipelines
HVAC and ventilation systems
Automotive fluid line components
Household appliance water/air connections
Why Choose Us as Your Direct Mold Maker?
As a professional injection mold manufacturer, we offer:
✅ Customization Support: Full design optimization for your specific threaded connector geometry
✅ Mold Trial Services: On-site trial runs with sample parts for your approval before mass production
✅ Competitive Pricing: Factory-direct rates without middleman fees
✅ After-Sales Support: Technical guidance, mold maintenance tips, and spare parts availability
✅ Global Shipping: Secure packaging (plywood cases) and worldwide delivery options
FAQ
Q1: What is the mold life expectancy for this H13 steel mold?
A1: With proper maintenance, the mold is rated for over 1,000,000 cycles, thanks to H13 steel’s high hardness and wear resistance.
Q2: Can the SPI-B3 texture be adjusted?
A2: Yes, we can modify the surface finish to other SPI standards (A/B/C/D) or VDI textures based on your requirements.
Q3: Is the hot runner system compatible with other materials besides ABS?
A3: While optimized for ABS, the single-tip hot nozzle can be adjusted for other thermoplastics (e.g., PP, PC, PA) with minor modifications.
Q4: How long does mold production take?
A4: Standard lead time is 30-45 days, depending on design complexity and customer approval timelines.
