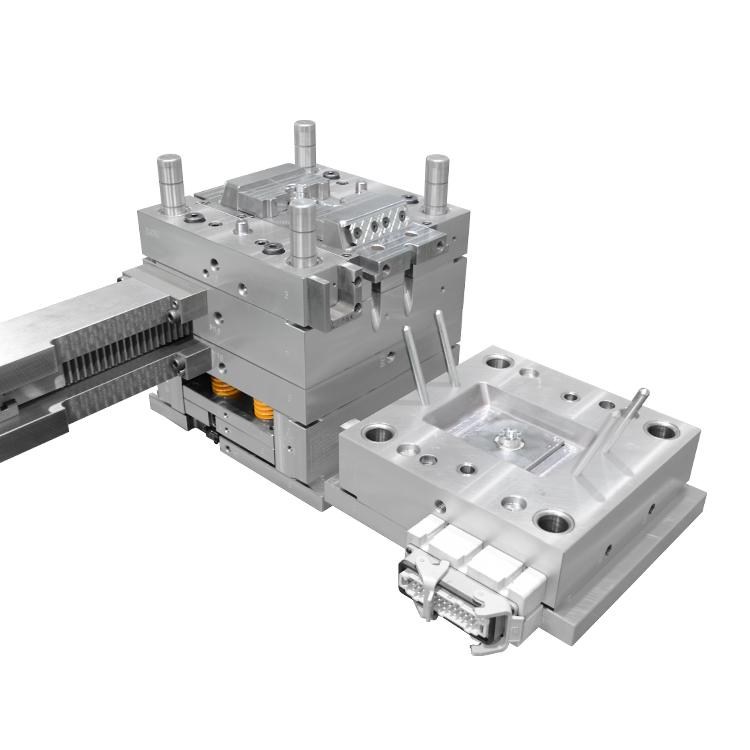

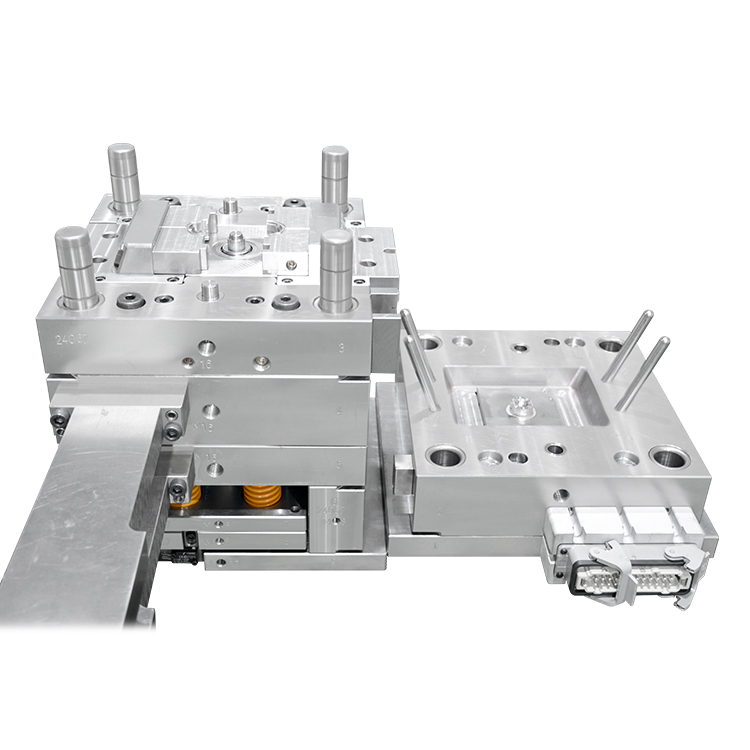

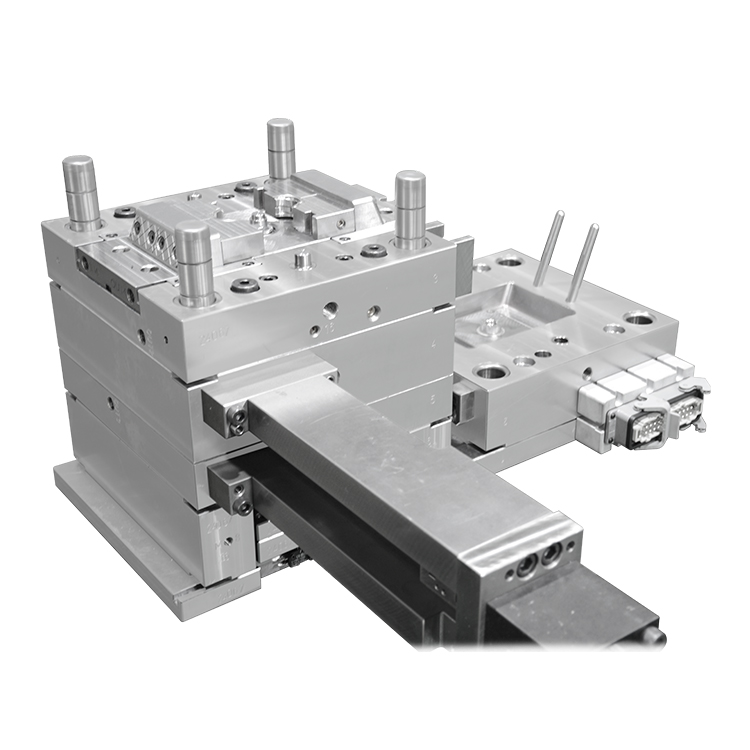

This is a high-precision, single-cavity hot runner injection mold, custom-manufactured for OEM industrial plastic components made from ABS (Acrylonitrile Butadiene Styrene). Built with premium H13 (1.2344) hot work tool steel, heat-treated to HRC48–52, and finished to the SPI-B3 standard, this mold delivers consistent, durable production under ISO9001 quality management certification. It is optimized for complex, functional ABS parts requiring tight tolerances, good surface quality, and long mold life.

Quantity:
Availability:





Inquire Add to Basket

Model:
24067
Brand:
YIXUN mold
Code:
8480419090

Product Description

This is a high-precision, single-cavity hot runner injection mold, custom-manufactured for OEM industrial plastic components made from ABS (Acrylonitrile Butadiene Styrene). Built with premium H13 (1.2344) hot work tool steel, heat-treated to HRC48–52, and finished to the SPI-B3 standard, this mold delivers consistent, durable production under ISO9001 quality management certification. It is optimized for complex, functional ABS parts requiring tight tolerances, good surface quality, and long mold life.

Mold Technical Specifications

Parameter	Specification
Mold Configuration	1×1 single-cavity design
Runner System	Hot runner injection, no cold runner waste, reduced cycle time
Molding Material	ABS (Acrylonitrile Butadiene Styrene)
Cavity & Core Steel	H13 (1.2344) hot work tool steel
Hardness	HRC 48–52 (vacuum heat-treated)
Surface Finish	SPI-B3 fine finish (equivalent to Ra 0.4μm, semi-gloss industrial standard)
Certification	ISO9001 quality management system certified
Application	OEM industrial plastic parts, functional housings, threaded components, and fittings

OEM ISO9001 Certification Industrial Plastic Mold

Key Design & Performance Advantages

1. 1×1 Single-Cavity Layout for Complex Industrial Parts

The single-cavity configuration allows for full process control over the part's intricate geometry (including internal threads and precision features):

Balanced flow: Ensures complete filling of all details, eliminating short shots or incomplete thread formation.
Dimensional stability: Consistent pressure and cooling prevent warpage or shrinkage in thick sections and complex features.
Tight tolerance control: Enables precision molding of threaded connections and mating surfaces, critical for industrial applications.

2. Hot Runner System for Efficient ABS Production

The hot runner system is ideal for high-volume ABS molding:

Zero cold runner waste: Eliminates material scrap, reducing production costs.
Faster cycle times: No need to cool and eject large cold runners, speeding up each molding cycle.
Consistent melt quality: Maintains uniform temperature, preventing ABS discoloration or degradation during long production runs.

3. H13 (1.2344) Steel: Built for Tough Industrial Applications

H13 is the industry standard for molds requiring durability and thermal stability:

High hardness (HRC48-52): Provides excellent wear resistance, even with high injection pressures and repetitive cycles.
Thermal shock resistance: Resists heat checking and cracking, common in molds for crystalline or filled plastics.
Long service life: Maintains dimensional accuracy and surface finish over millions of shots, reducing maintenance costs.

4. SPI-B3 Fine Finish: Balancing Function and Aesthetics

The SPI-B3 surface finish is a widely used industrial standard, offering the perfect balance:

Semi-gloss appearance: Creates a smooth, uniform surface that hides minor molding marks, ideal for functional industrial parts.
Ease of cleaning and demolding: Reduces friction, preventing sticking or scratching of the part during ejection.
Consistent quality: Achieved through controlled polishing processes, ensuring uniform texture across all production runs.

5. ISO9001 Certified OEM Manufacturing

As an ISO9001 certified mold maker, every step of the production process is strictly controlled:

Traceability: Full documentation of material heat treatment, machining, and inspection.
Quality assurance: Every mold undergoes rigorous testing and validation before delivery.
Reliability: OEM projects are delivered with consistent quality, on schedule, and meeting all specifications.

Application & Quality Assurance

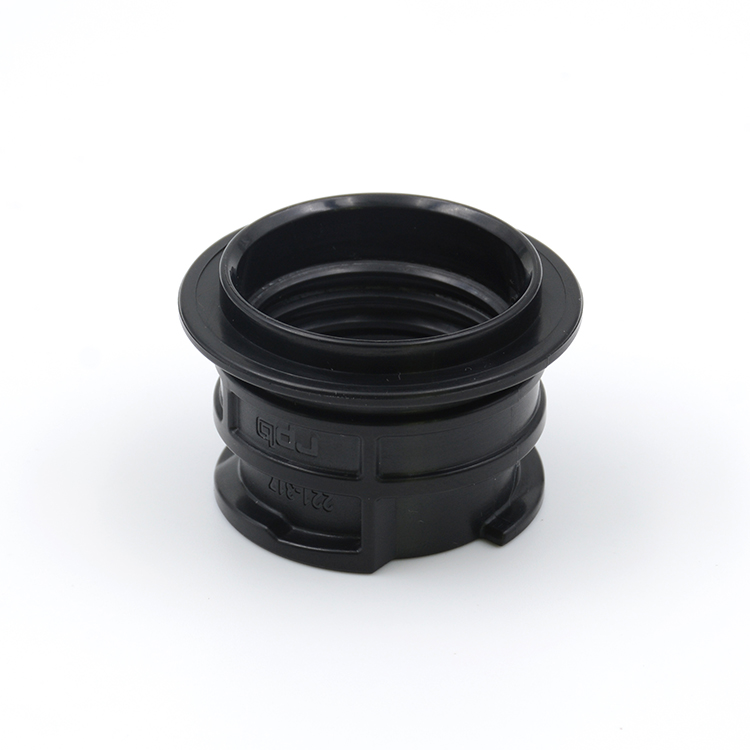

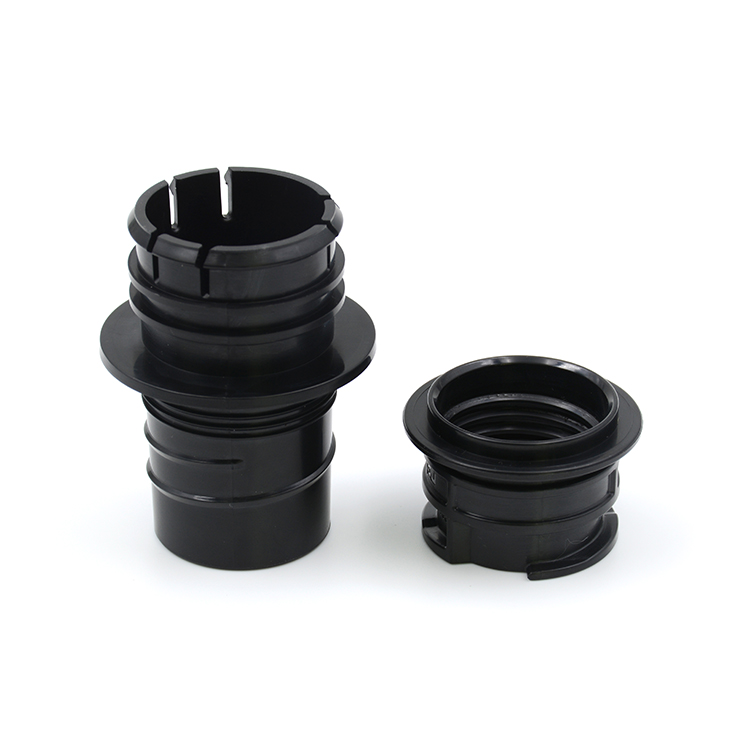

This mold is designed for OEM production of a wide range of industrial ABS components, including threaded fittings, housings, connectors, and structural parts. The use of H13 steel, hot runner technology, and SPI-B3 finish ensures the mold will perform reliably in demanding production environments.

Conclusion

The 1×1 cavity ABS hot runner injection mold is a robust, high-performance solution for OEM industrial plastic parts. With H13 steel construction, SPI-B3 finish, and ISO9001 certified manufacturing, it delivers the precision, durability, and efficiency required for high-volume production.
